Zelos Bollard

Zelos Bollard

IP66

IK16 (150J)

Bollards

Class I

Community and Public

Custodial

Secure Healthcare

Transport

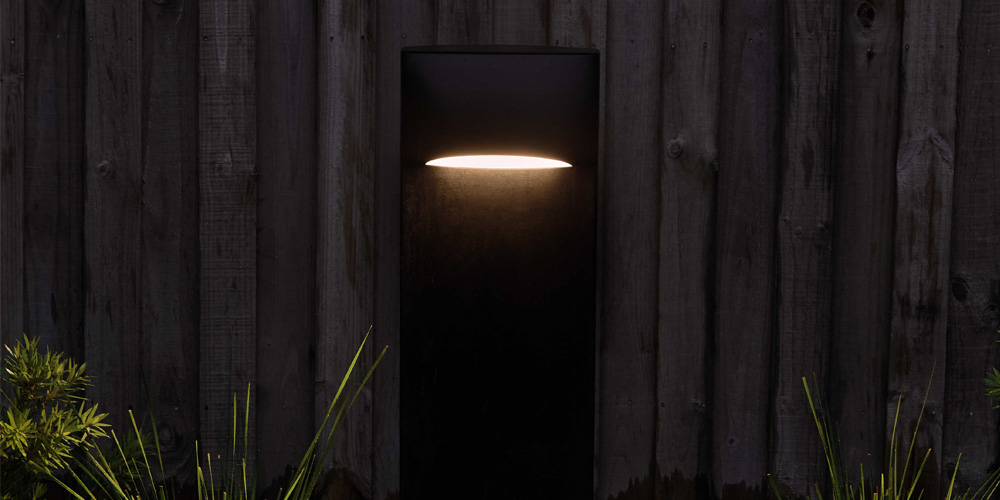

Zelos Bollard is a vandal resistant bollard specifically designed for transport applications and community and public installations.

Standard Colours

Product Information

Zelos Bollard’s specifically designed optics provides up to 8 metre spacings on typical pathway applications (15 lux average and 0.25 uniformity), with minimal upward light. It has been tested to withstand crowd loading up to 1.5kN/m. Incorporating a removable gear tray ensures Zelos Bollard is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Community and Public applications include the perimeter of buildings. Transport applications include station forecourts and car parks, both covered and open. Secure Health applications include exercise and activity areas.

Product Specification

Impact Resistance Rating: IK16 (150J). More information, CLICK HERE.

Ingress Protection Rating: IP66. More information, CLICK HERE.

Housing: Aluminium body with die cast aluminium head.

Paint: Polyester powder coat. For all colours available, CLICK HERE.

Diffuser: Opal or clear polycarbonate diffuser in casting secured with tamperproof screws.

Driver: Electronic control gear on removable tray with fused plug and socket connector block.

Mounting: Integral baseplate.

Cable Entry: Pre-wired with 500m flying lead.

Additional Information: We recommend that a root mount is installed to ensure the strength and to optimise installation (Root mounting brackets are available as a chargeable extra – see options).

Technical Information

Zelos Bollard	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)

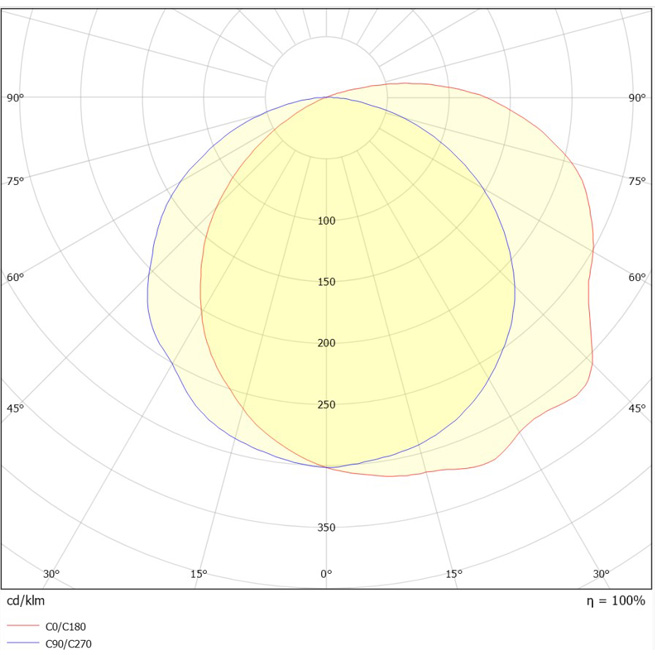

Opal
TLSBP-1100N-X-MT	931	9.5	98	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	404
	Weight (kg)	LED Energy Rating	Dimensions

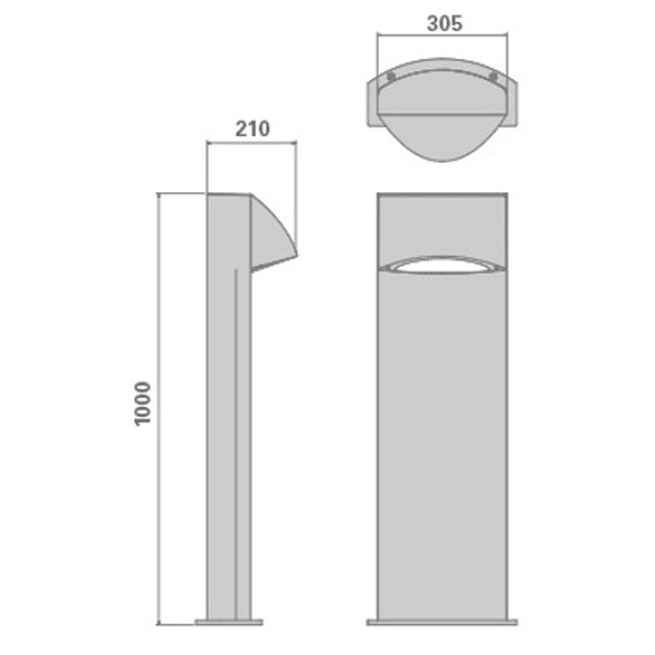

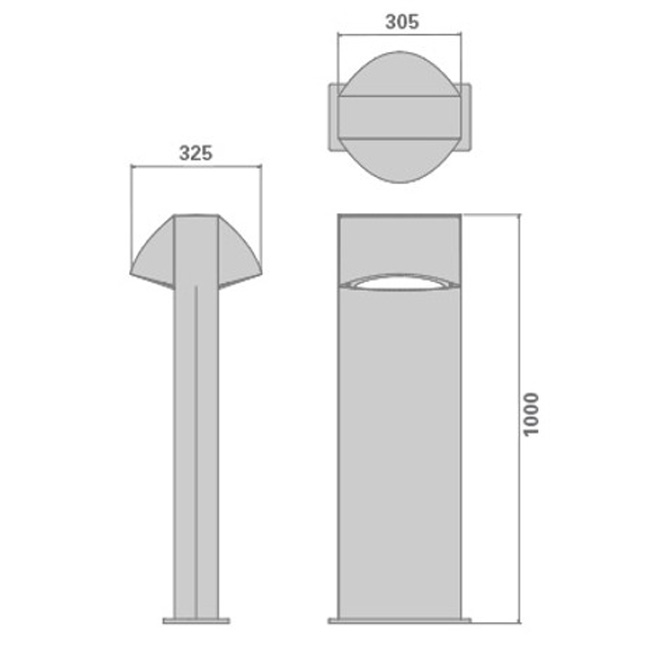

	11.4	D	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBP-1400N-X-MT	1154	13.4	86	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	404
	Weight (kg)	LED Energy Rating	Dimensions
	11.4	D	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBP-1100W-X-MT	884	9.5	93	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	383
	Weight (kg)	LED Energy Rating	Dimensions
	11.4	D	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBP-1400W-X-MT	1096	13.4	82	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	383
	Weight (kg)	LED Energy Rating	Dimensions
	11.4	D	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)

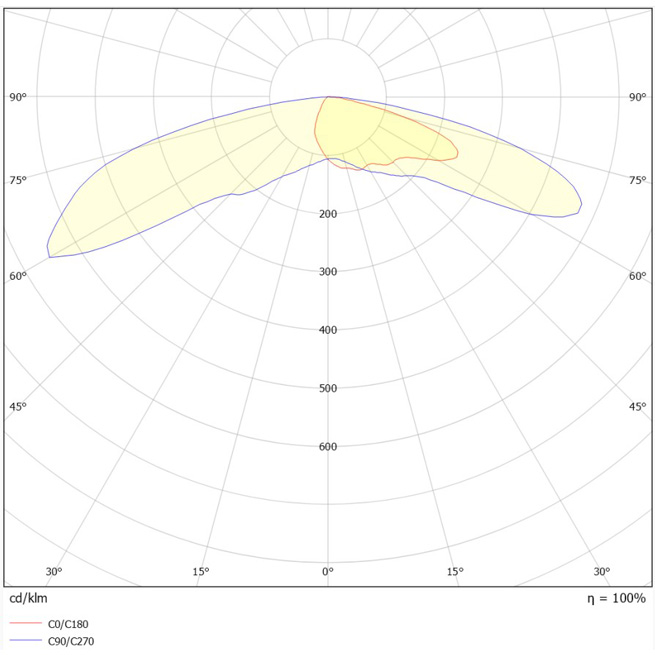

Clear, Extra Wide Optic
TLSBP-1000NXW-C-MT	603	8.4	72	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	340
	Weight (kg)	LED Energy Rating	Dimensions
	11.4	F	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBP-1500NXW-C-MT	1045	16.4	64	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	340
	Weight (kg)	LED Energy Rating	Dimensions
	11.4	F	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBP-1000WXW-C-MT	573	8.4	68	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	323
	Weight (kg)	LED Energy Rating	Dimensions
	11.4	F	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBP-1500WXW-C-MT	993	16.4	61	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	323
	Weight (kg)	LED Energy Rating	Dimensions
	11.4	F	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
Opal, Double-headed
TLSBPD-1100N-X-MT	931/931	19	98	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	404
	Weight (kg)	LED Energy Rating	Dimensions
	14.6	D	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBPD-1400N-X-MT	1154/1154	26.8	86	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	404
	Weight (kg)	LED Energy Rating	Dimensions
	14.6	D	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBPD-1100W-X-MT	884/884	19	93	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	383
	Weight (kg)	LED Energy Rating	Dimensions
	14.6	D	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBPD-1400W-X-MT	1096/1096	26.8	82	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	383
	Weight (kg)	LED Energy Rating	Dimensions
	14.6	D	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
Clear, Extra Wide Optic, Double-headed
TLSBPD-1000NXW-C-MT	603/603	16.8	72	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	340
	Weight (kg)	LED Energy Rating	Dimensions
	14.6	F	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBPD-1500NXW-C-MT	1045/1045	32.8	64	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	340
	Weight (kg)	LED Energy Rating	Dimensions
	14.6	F	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBPD-1000WXW-C-MT	573/573	16.8	68	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	323
	Weight (kg)	LED Energy Rating	Dimensions
	14.6	F	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)
TLSBPD-1500WXW-C-MT	993/993	32.8	61	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	323
	Weight (kg)	LED Energy Rating	Dimensions
	14.6	F	210mm x 305mm x 1000mm (Single head), 325mm x 305mm x 1000mm (Double head)

Fitting Options

Photo Electronic Cell	-PC
DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Central Battery Maintained 110V	-EV
Change Over Relay, 240V Relay Supplied	-ER
Maintained Emergency 3 Hour, DALI	-ED
Matt Titanium	-MT
Matt Black	-MB
Matt Silver	-MS

• For paint colour options, please replace -MT with required paint code.
• For -PC option, Zelos Bollard will be IP65 because the photocell lens is rated to IP65.

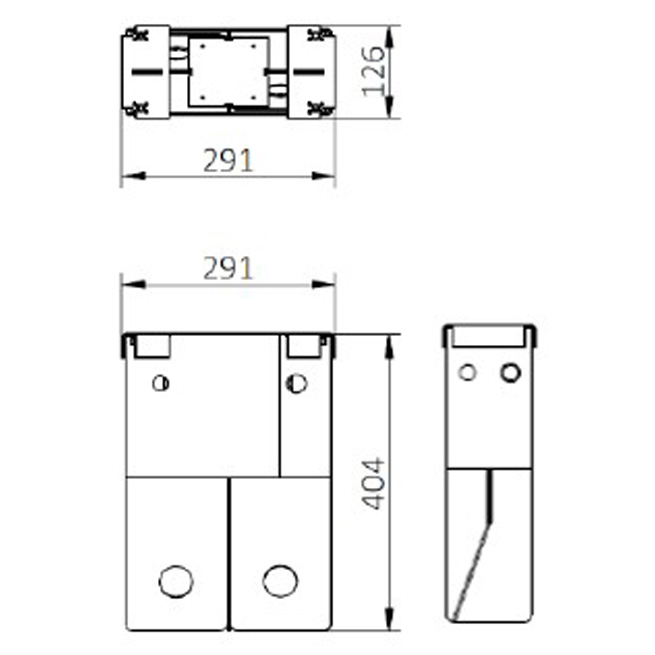

• For Root mounting bracket for single bollard, please order TLSBB/ROOT.

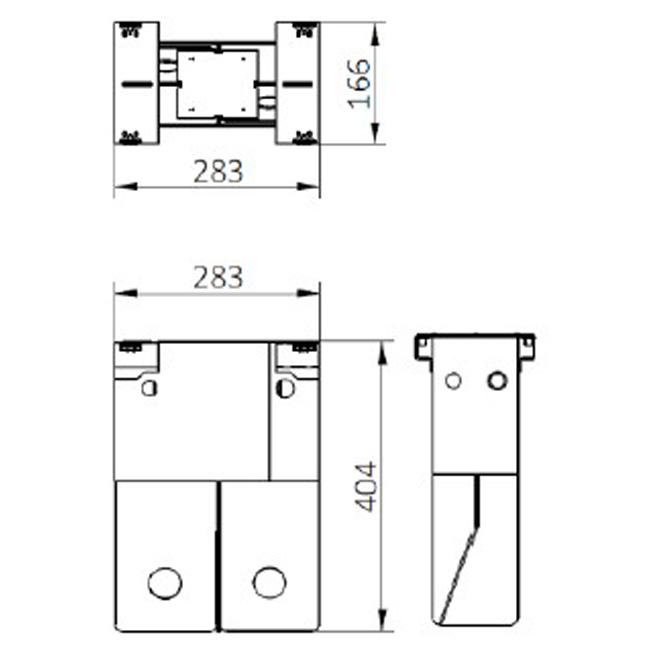

• For Root mounting bracket for double bollard, please order TLSBPD/ROOT.
• For lighting calculations utilising the double-headed Zelos Bollard version, please use 2 x single Zelos Bollard LDT files back-to-back.
