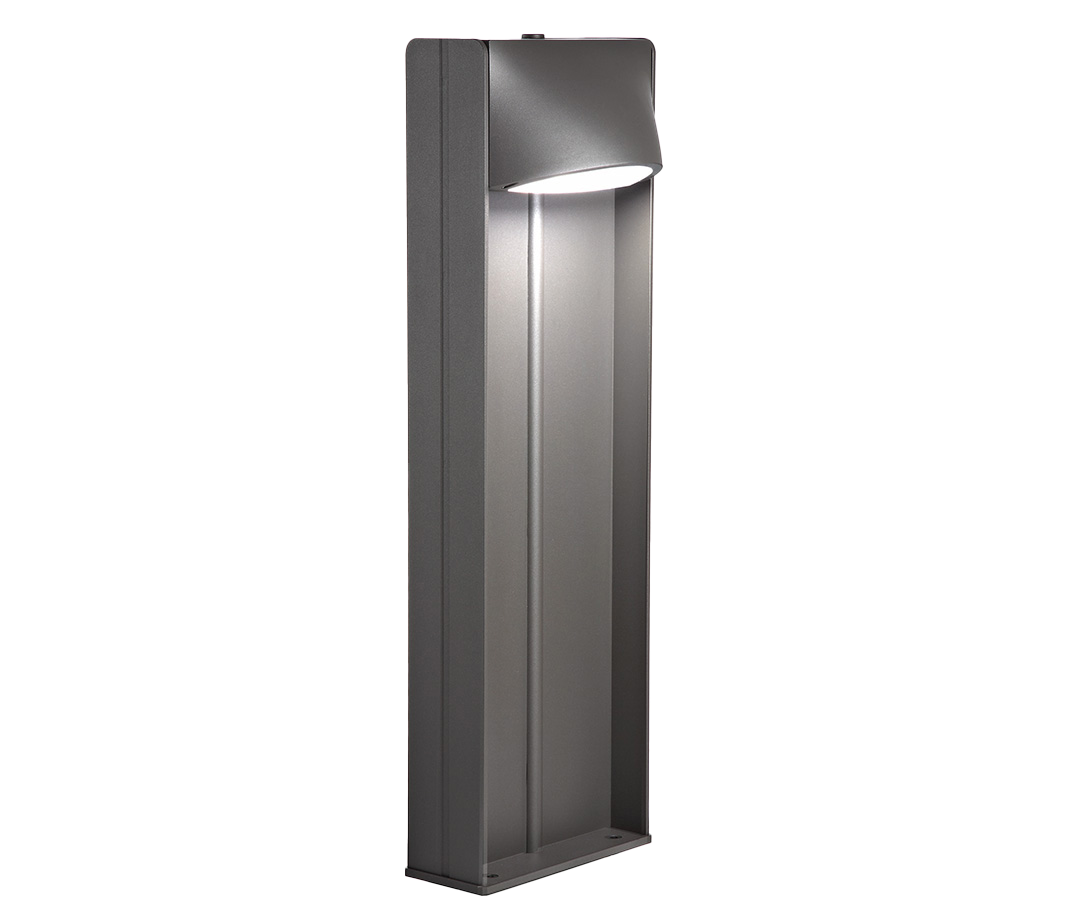

Zelos Beam is a vandal resistant bollard specifically designed for transport applications and community and public installations.

Standard Colours

Product Information

Zelos Beam’s specifically designed optics provides up to 8 metre spacings on typical pathway applications (15 lux average and 0.25 uniformity), with minimal upward light. It has been tested to withstand crowd loading up to 1.5kN/m. Incorporating a removable gear tray ensures Zelos Beam is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Community and Public applications include the perimeter of buildings. Transport applications include station forecourts and open car parks.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK16 (150J). Learn More.

Ingress Protection Rating: IP66. Learn More.

Housing: Extruded aluminium body with die cast aluminium head.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Opal or clear polycarbonate diffuser in casting secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug and socket connector block.

Mounting: Integral baseplate.

Cable Entry: Pre-wired with 500m flying lead.

Design Life: 30+ years. Learn More.

Additional Information: We recommend that a root mount is installed to ensure the strength and to optimise installation (Root mounting brackets are available as a chargeable extra – see options).

Technical Information

Zelos Beam	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)

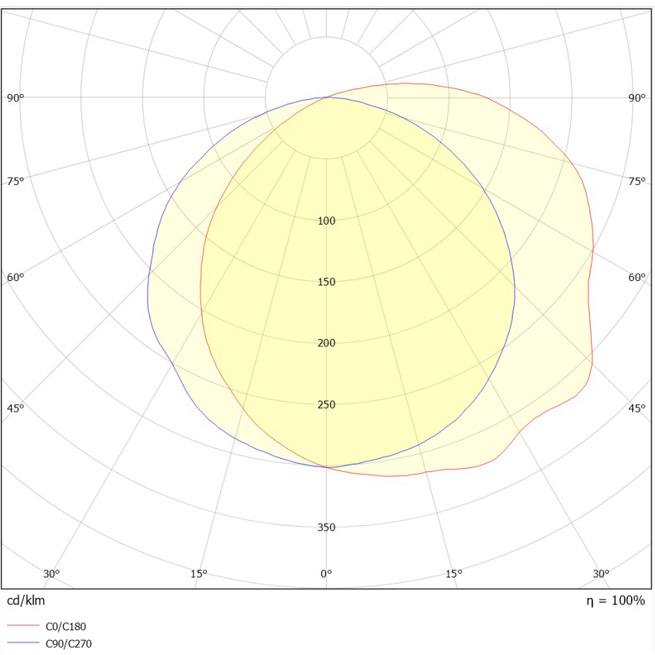

Opal
TLSBB-1100N-X-MT	931	9.5	98	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	404
	Weight (kg)	LED Energy Rating	Dimensions

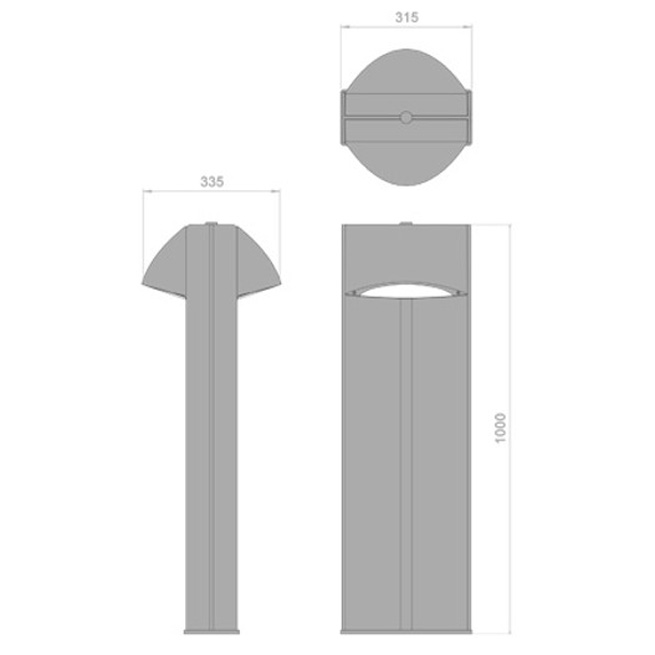

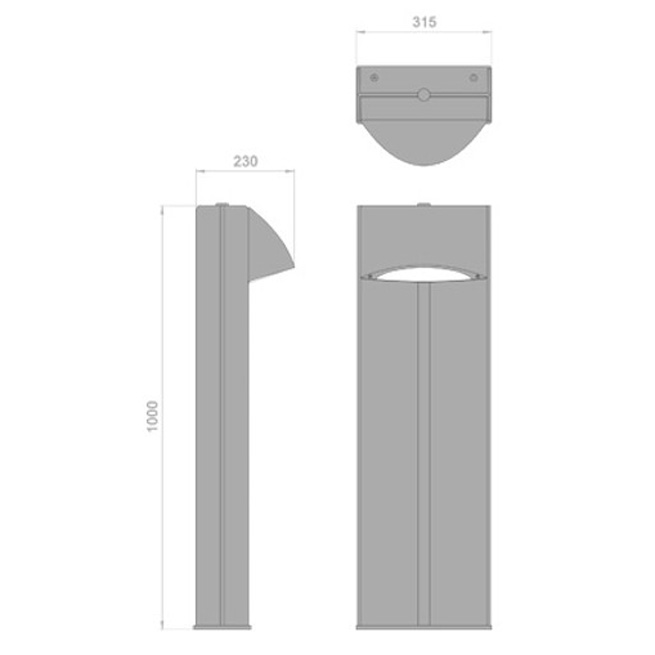

	15	D	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBB-1400N-X-MT	1154	13.4	86	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	404
	Weight (kg)	LED Energy Rating	Dimensions
	15	D	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBB-1100W-X-MT	884	9.5	93	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	383
	Weight (kg)	LED Energy Rating	Dimensions
	15	D	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBB-1400W-X-MT	1096	13.4	82	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	383
	Weight (kg)	LED Energy Rating	Dimensions
	15	D	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)

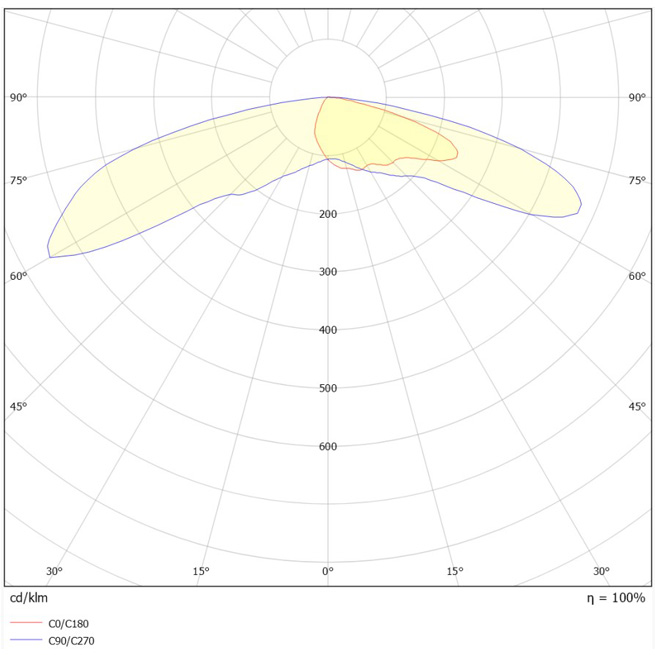

Clear, Extra Wide Optic
TLSBB-1000NXW-C-MT	603	8.4	72	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	340
	Weight (kg)	LED Energy Rating	Dimensions
	15	F	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBB-1500NXW-C-MT	1045	16.4	64	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	340
	Weight (kg)	LED Energy Rating	Dimensions
	15	F	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBB-1000WXW-C-MT	573	8.4	68	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	323
	Weight (kg)	LED Energy Rating	Dimensions
	15	F	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBB-1500WXW-C-MT	993	16.4	61	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	323
	Weight (kg)	LED Energy Rating	Dimensions
	15	F	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
Opal, Double-headed
TLSBBD-1100N-X-MT	931/931	19	98	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	404
	Weight (kg)	LED Energy Rating	Dimensions
	18.2	D	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBBD-1400N-X-MT	1154/1154	26.8	86	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	404
	Weight (kg)	LED Energy Rating	Dimensions
	18.2	D	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBBD-1100W-X-MT	884/884	19	93	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	383
	Weight (kg)	LED Energy Rating	Dimensions
	18.2	D	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBBD-1400W-X-MT	1096/1096	26.8	82	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	383
	Weight (kg)	LED Energy Rating	Dimensions
	18.2	D	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
Clear, Extra Wide Optic, Double-headed
TLSBBD-1000NXW-C-MT	603/603	16.8	72	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	340
	Weight (kg)	LED Energy Rating	Dimensions
	18.2	F	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBBD-1500NXW-C-MT	1045/1045	32.8	64	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	340
	Weight (kg)	LED Energy Rating	Dimensions
	18.2	F	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBBD-1000WXW-C-MT	573/573	16.8	68	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	323
	Weight (kg)	LED Energy Rating	Dimensions
	18.2	F	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)
TLSBBD-1500WXW-C-MT	993/993	32.8	61	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>102,000h	323
	Weight (kg)	LED Energy Rating	Dimensions
	18.2	F	315mm x 230mm x 1000mm (Single head), 315mm x 335mm x 1000mm (Double head)

Fitting Options

Photo Electronic Cell	-PC
DALI-2 Dimming / Monitoring	-DA
Change Over Relay, 240V Relay Supplied	-ER
Central Battery Maintained 110V	-EV
Maintained Emergency 3 Hour, DALI	-ED
Maintained Emergency 3 Hour	-E3
Matt Black	-MB
Matt Silver	-MS
Matt Titanium	-MT

• For paint colour options, please replace -MT with required paint code.
• For -PC option, Zelos Beam will be IP65 because the photocell lens is rated to IP65.

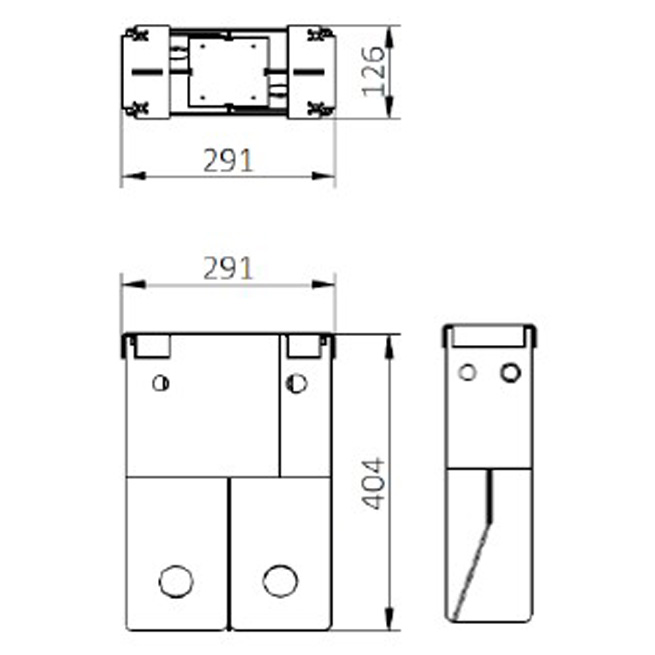

• For Root mounting bracket for single beam and double beam, please order TLSBB-ROOT.
• For lighting calculations utilising the double-headed Zelos Beam version, please use 2 x single Zelos Beam LDT files back-to-back.
