Tuscan Class II is a vandal resistant luminaire specifically designed for transport applications.
Standard Colours
Tuscan Class II’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution. Incorporating a removable gear tray ensures Tuscan Class II is quick and easy to maintain, whilst enabling sustainable technology upgrades.
Applications include station forecourts, covered platforms, stairs and footbridges.
Impact Resistance Rating: IK16 (150J). Learn More.
Ingress Protection Rating: IP65. Learn More.
Housing: Zinc coated steel body.
Paint: Polyester powder coat. All Colour Options Available Here.
Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.
Driver: Electronic control gear on removable tray for ease of repair/upgrade.
Mounting: Wall or ceiling.
Cable Entry: Provision for conduit entry in back and ends.
Design Life: 30+ years. Learn More.
| Tuscan Class II | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| L650mm | ||||
| D890-2-1500N-TB-CA | 1419 | 15.5 | 92 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>110,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||

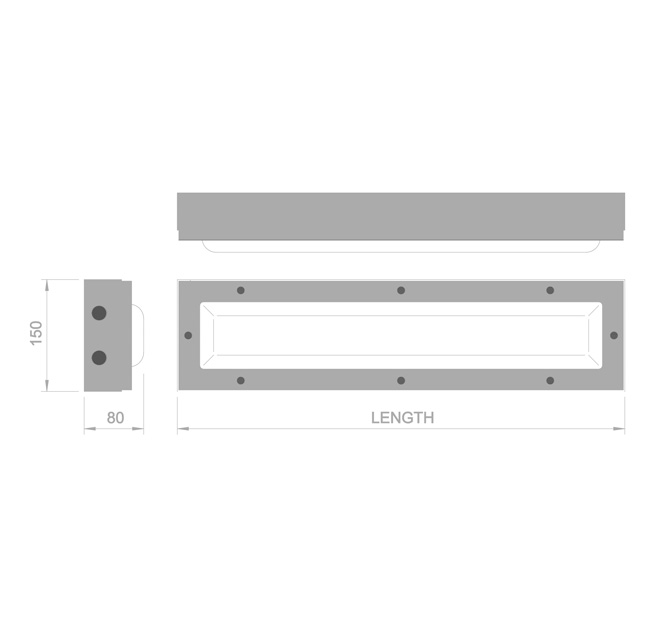

| 4.8 | C | 150mm x 80mm | ||
| D890-2-2200N-TB-CA | 2059 | 22.5 | 92 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>110,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.8 | C | 150mm x 80mm | ||
| D890-2-1500W-TB-CA | 1348 | 15.5 | 87 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>100,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.8 | D | 150mm x 80mm | ||
| D890-2-2200W-TB-CA | 1956 | 22.5 | 87 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>100,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.8 | D | 150mm x 80mm | ||
| L1250mm | ||||
| D890-4-3200N-TB-CA | 2990 | 33.7 | 89 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>110,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 8.7 | C | 150mm x 80mm | ||
| D890-4-4200N-TB-CA | 3883 | 44.9 | 86 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>110,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 8.7 | C | 150mm x 80mm | ||
| D890-4-3200W-TB-CA | 2840 | 33.7 | 84 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>100,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 8.7 | D | 150mm x 80mm | ||
| D890-4-4200W-TB-CA | 3689 | 44.9 | 82 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>100,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 8.7 | D | 150mm x 80mm | ||
| L1550mm | ||||
| D890-5-3700N-TB-CA | 3420 | 37.3 | 92 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>110,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 10.2 | C | 150mm x 80mm | ||
| D890-5-5500N-TB-CA | 4905 | 55.5 | 88 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>110,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 10.2 | C | 150mm x 80mm | ||
| D890-5-3700W-TB-CA | 3249 | 37.3 | 87 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>100,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 10.2 | D | 150mm x 80mm | ||
| D890-5-5500W-TB-CA | 4660 | 55.5 | 84 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 45 | L₇₀B₁₀>100,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 10.2 | D | 150mm x 80mm | ||
| Class II + Surge Protection + In-rush Limiter | -CB |
| Class II + Surge Protection | -CC |
| Anti-Graffiti Diffuser Coating | -AG |
| Coastal Paint Finish (Zone 2) | -Z2 |
| Class II Only | -CA |
| Class II + In-rush Limiter | -CD |
| Fully Recessed | -R |
| DALI-2 Dimming / Monitoring | -DA |
| Emergency luminaire monitoring module (CEAG) | -EC |
| Textured White | -TW |
| Textured Black | -TB |
• For paint colour options, please replace -TB with required paint code.
• HT Applies for standard version. For any options, please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• -EC not available on 650mm versions, 1550mm 5500lm version, or recessed versions.
• For Class II product with Surge Protection and In-rush Limiter, please replace -CA with -CB.
• For Class II product with Surge Protection, please replace -CA with -CC.
• For Class II product with In-rush Limiter, please replace -CA with -CD.
