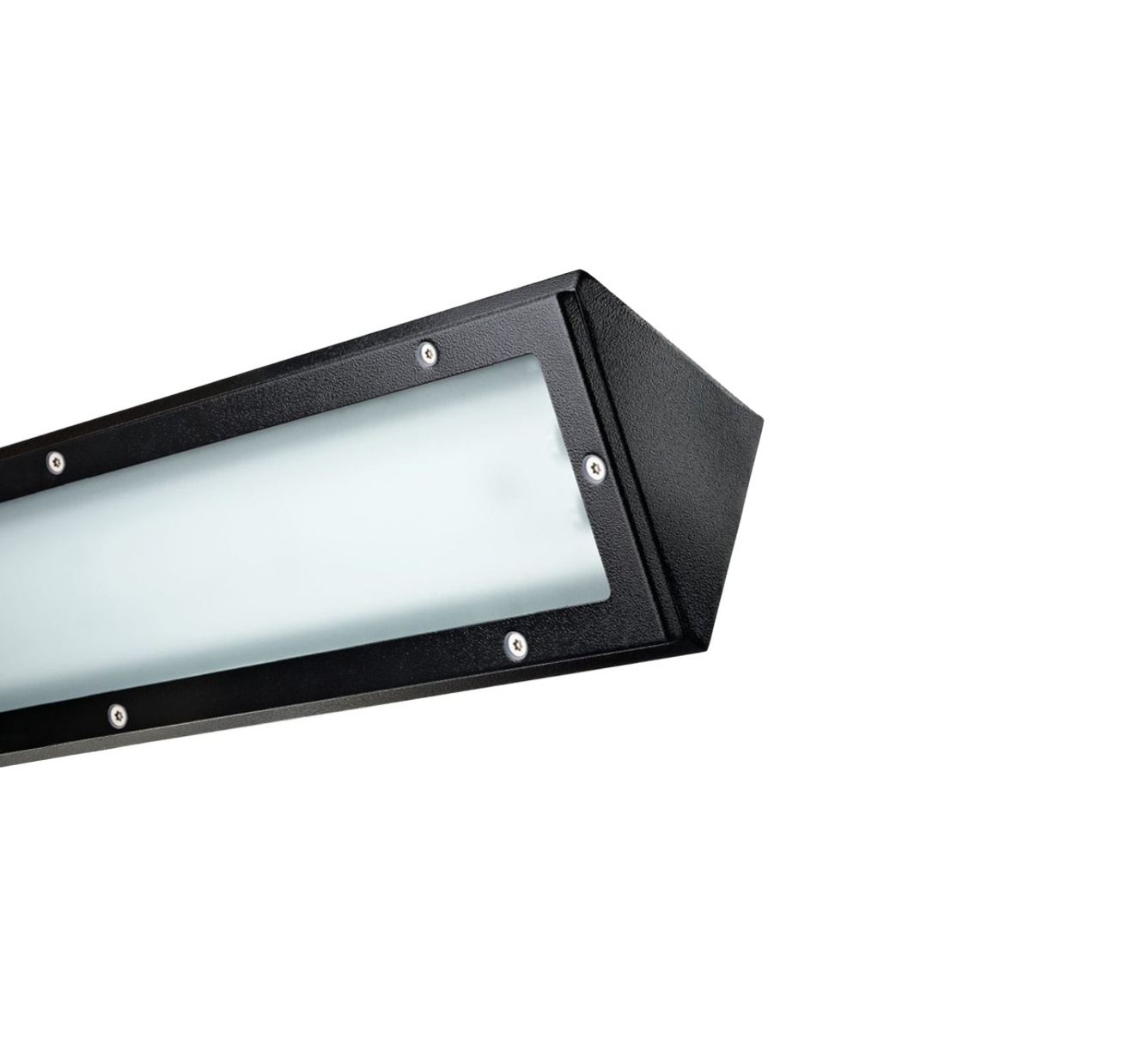

Tuscan 89 Angled S12 is a vandal resistant luminaire specifically designed in accordance with fire precautions for subsurface rail stations (Section 12).
Standard Colours
Tuscan 89 Angled S12 directs light where it’s needed, reducing wasted illumination and minimising glare. Incorporating a removable gear tray ensures Tuscan 89 Angled S12 is quick and easy to maintain, whilst enabling sustainable technology upgrades.
Tuscan 89 Angled S12 complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.
Impact Resistance Rating: IK08 (5J). Learn More.
Ingress Protection Rating: IP65. Learn More.
Housing: Zinc coated steel body.
Paint: Polyester powder coat. All Colour Options Available Here.
Diffuser: Frosted toughened glass diffuser in frame secured with tamperproof screws.
Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.
Mounting: Cornice mounting at either 45° or 30°/60°.
Cable Entry: N/A (Blank body).
Design Life: 30+ years. Learn More.
| Tuscan 89 Angled S12 | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|

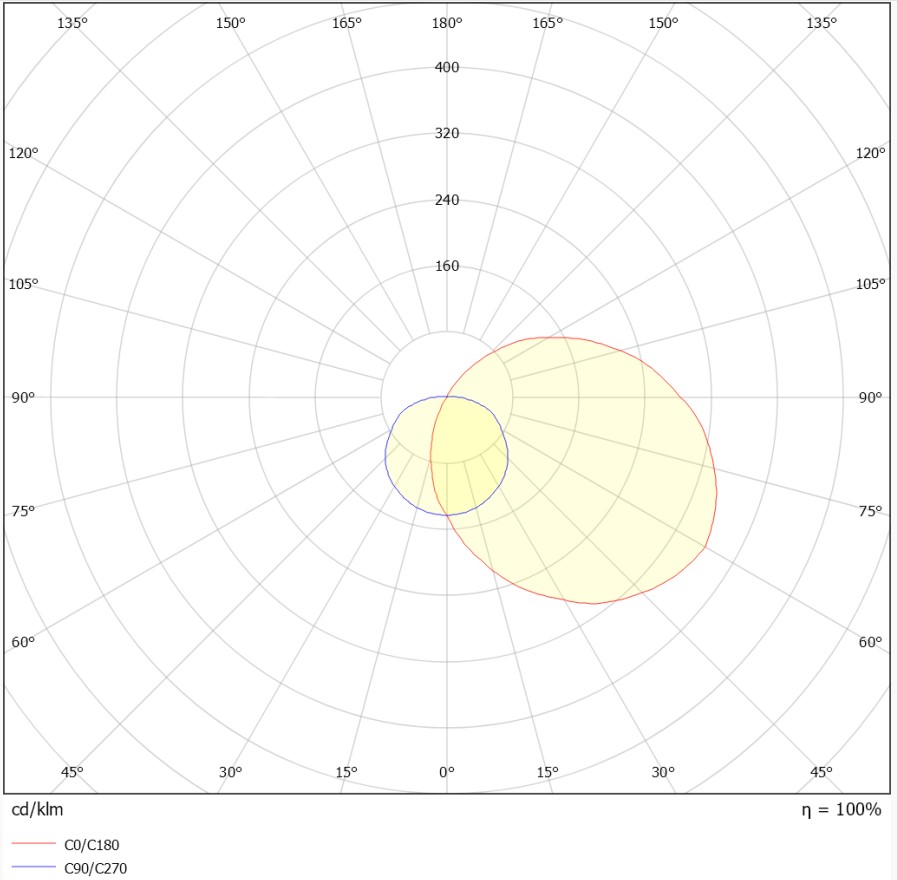

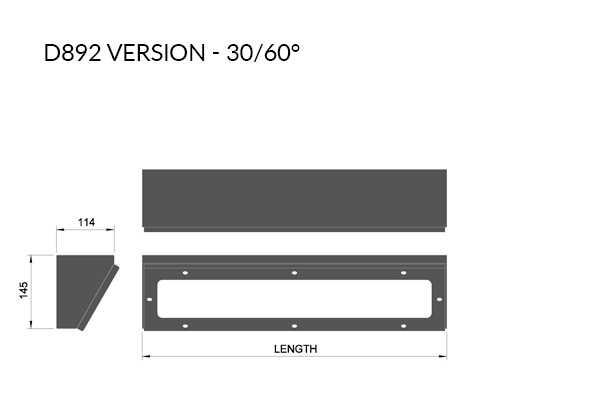

| L650mm x H145mm x W114mm - 30/60 Degree angle | ||||
| D892-2-1500N-F-TB-ST | 1507 | 15.6 | 97 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 5 | |
| LED Energy Rating | ||||
| C | ||||
| D892-2-2000N-F-TB-ST | 1750 | 17.5 | 100 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 5 | |
| LED Energy Rating | ||||
| C | ||||
| D892-2-2500N-F-TB-ST | 1934 | 20.1 | 96 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 5 | |
| LED Energy Rating | ||||
| C | ||||
| D892-2-3000N-F-TB-ST | 2282 | 22.5 | 101 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 5 | |
| LED Energy Rating | ||||
| C | ||||
| D892-2-1500W-F-TB-ST | 1432 | 15.6 | 92 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 5 | |
| LED Energy Rating | ||||
| C | ||||
| D892-2-2000W-F-TB-ST | 1663 | 17.5 | 95 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 5 | |
| LED Energy Rating | ||||
| C | ||||
| D892-2-2500W-F-TB-ST | 1837 | 20.1 | 91 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 5 | |
| LED Energy Rating | ||||
| C | ||||
| D892-2-3000W-F-TB-ST | 2168 | 22.5 | 96 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 5 | |
| LED Energy Rating | ||||
| C | ||||
| L1250mm x H145mm x W114mm - 30/60 Degree angle | ||||
| D892-4-2000N-F-TB-ST | 2018 | 20.3 | 99 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| D892-4-3000N-F-TB-ST | 2485 | 24.8 | 100 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| D892-4-4000N-F-TB-ST | 2964 | 30.1 | 98 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| D892-4-5000N-F-TB-ST | 3709 | 37.1 | 100 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| D892-4-6000N-F-TB-ST | 3813 | 39.5 | 97 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| D892-4-2000W-F-TB-ST | 1917 | 20.3 | 94 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| D892-4-3000W-F-TB-ST | 2361 | 24.8 | 95 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| D892-4-4000W-F-TB-ST | 2816 | 30.1 | 94 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| D892-4-5000W-F-TB-ST | 3524 | 37.1 | 95 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| D892-4-6000W-F-TB-ST | 3622 | 39.5 | 92 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 9.2 | C | |||
| L1550mm x H145mm x W114mm - 30/60 Degree angle | ||||
| D892-5-2500N-F-TB-ST | 2669 | 24.3 | 110 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||
| D892-5-3750N-F-TB-ST | 3387 | 30.1 | 113 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||
| D892-5-5000N-F-TB-ST | 4027 | 36.4 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||
| D892-5-6250N-F-TB-ST | 4666 | 42.2 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||
| D892-5-7500N-F-TB-ST | 5288 | 48.5 | 109 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||
| D892-5-2500W-F-TB-ST | 2536 | 24.3 | 104 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||
| D892-5-3750W-F-TB-ST | 3218 | 30.1 | 107 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||
| D892-5-5000W-F-TB-ST | 3826 | 36.4 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||
| D892-5-6250W-F-TB-ST | 4433 | 42.2 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||
| D892-5-7500W-F-TB-ST | 5024 | 48.5 | 104 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 11.2 | C | |||

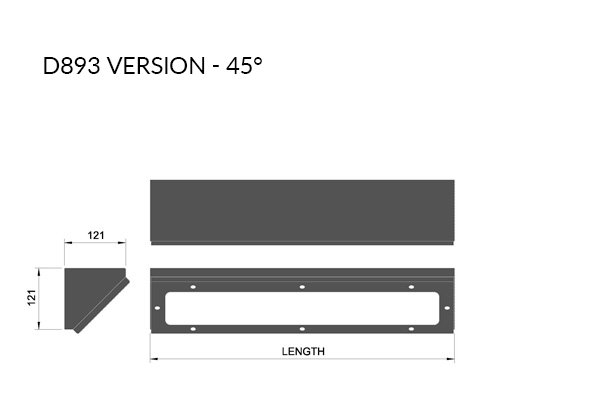

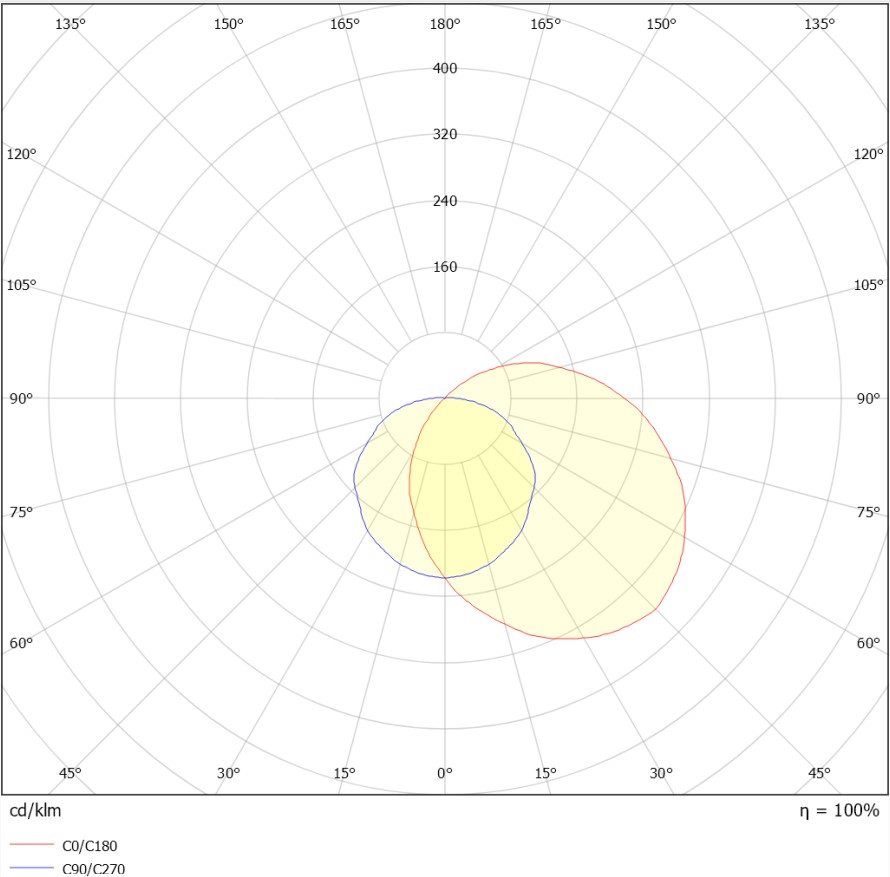

| L650mm x H121mm x W121mm - 45 Degree angle | ||||
| D893-2-1500N-F-TB-ST | 1507 | 15.6 | 97 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 4.7 | |
| LED Energy Rating | ||||
| C | ||||
| D893-2-2000N-F-TB-ST | 1750 | 17.5 | 100 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 4.7 | |
| LED Energy Rating | ||||
| C | ||||
| D893-2-2500N-F-TB-ST | 1934 | 20.1 | 96 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 4.7 | |
| LED Energy Rating | ||||
| C | ||||
| D893-2-3000N-F-TB-ST | 2282 | 22.5 | 101 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 4.7 | |
| LED Energy Rating | ||||
| C | ||||
| D893-2-1500W-F-TB-ST | 1432 | 15.6 | 92 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 4.7 | |
| LED Energy Rating | ||||
| C | ||||
| D893-2-2000W-F-TB-ST | 1663 | 17.5 | 95 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 4.7 | |
| LED Energy Rating | ||||
| C | ||||
| D893-2-2500W-F-TB-ST | 1837 | 20.1 | 91 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 4.7 | |
| LED Energy Rating | ||||
| C | ||||
| D893-2-3000W-F-TB-ST | 2168 | 22.5 | 96 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Weight (kg) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 4.7 | |
| LED Energy Rating | ||||
| C | ||||
| L1250mm x H121mm x W121mm - 45 Degree angle | ||||
| D893-4-2000N-F-TB-ST | 2018 | 20.3 | 99 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| D893-4-3000N-F-TB-ST | 2485 | 24.8 | 100 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| D893-4-4000N-F-TB-ST | 2964 | 30.1 | 98 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| D893-4-5000N-F-TB-ST | 3709 | 37.1 | 100 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| D893-4-6000N-F-TB-ST | 3813 | 39.5 | 97 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 550 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| D893-4-2000W-F-TB-ST | 1917 | 20.3 | 94 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| D893-4-3000W-F-TB-ST | 2361 | 24.8 | 95 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| D893-4-4000W-F-TB-ST | 2816 | 30.1 | 94 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| D893-4-5000W-F-TB-ST | 3524 | 37.1 | 95 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| D893-4-6000W-F-TB-ST | 3622 | 39.5 | 92 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 522 | |
| Weight (kg) | LED Energy Rating | |||
| 8.7 | C | |||
| L1550mm x H121mm x W121mm - 45 Degree angle | ||||
| D893-5-2500N-F-TB-ST | 2669 | 24.3 | 110 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| D893-5-3750N-F-TB-ST | 3387 | 30.1 | 113 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| D893-5-5000N-F-TB-ST | 4027 | 36.4 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| D893-5-6250N-F-TB-ST | 4666 | 42.2 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| D893-5-7500N-F-TB-ST | 5288 | 48.5 | 109 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 570 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| D893-5-2500W-F-TB-ST | 2536 | 24.3 | 104 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| D893-5-3750W-F-TB-ST | 3218 | 30.1 | 107 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| D893-5-5000W-F-TB-ST | 3826 | 36.4 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| D893-5-6250W-F-TB-ST | 4433 | 42.2 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| D893-5-7500W-F-TB-ST | 5024 | 48.5 | 104 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 541 | |
| Weight (kg) | LED Energy Rating | |||
| 10.6 | C | |||
| Coastal Paint Finish (Zone 2) | -Z2 |
| Switch Dimming | -DI |
| DALI-2 Dimming / Monitoring | -DA |
| Maintained Emergency 3 Hour | -E3 |
| Central Battery Maintained 110V | -EV |
| Change Over Relay, 240V Relay Supplied | -ER |
| Maintained Emergency 3 Hour, Self Test | -ES |
| Maintained Emergency 3 Hour, DALI | -ED |
| Smooth White | -SW |
| Pure White | -PW |
| Textured White | -TW |
| Textured Black | -TB |
• For paint colour options, please replace -TB with required paint code.
• -E3 / -ES / -ED not available on 650mm versions.
Complete the form below to download this resource.
