Tuscan 88 Angled

Tuscan 88 Angled

IP65

IK16 (150J)

Linear

Class I

Surface

Community and Public

Custodial

Transport

Tuscan 88 Angled is a vandal resistant luminaire specifically designed for challenging environments, such as custodial facilities, transport applications and community and public installations.

Standard Colours

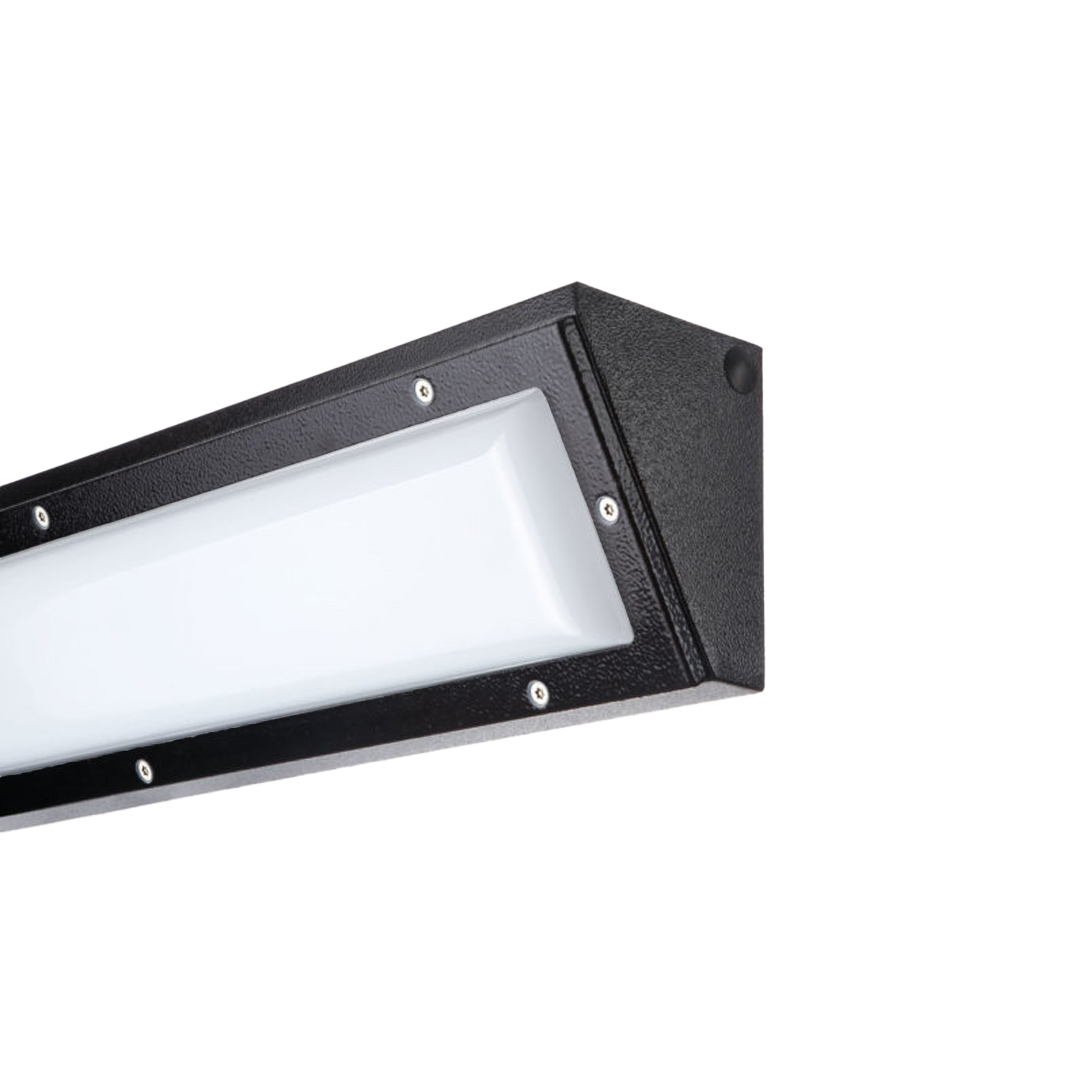

Tuscan 88 Angled Vandal Resistant Luminaire

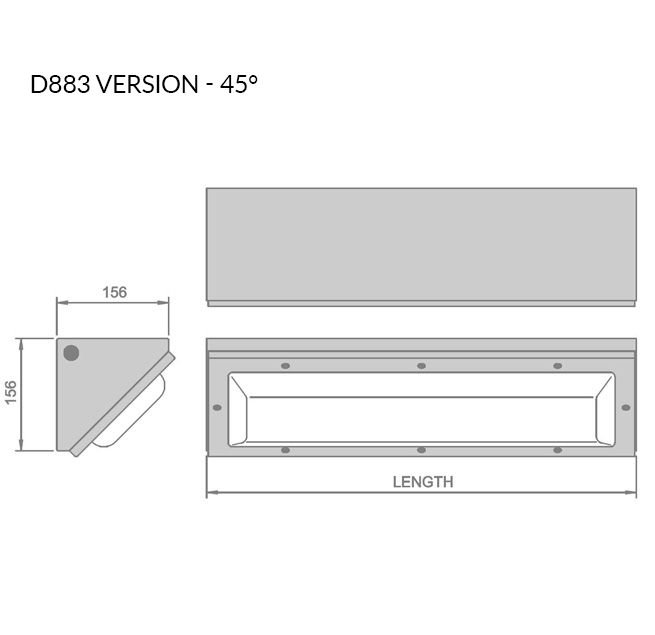

Tuscan 88 Angled D883 Version Drawing with degree

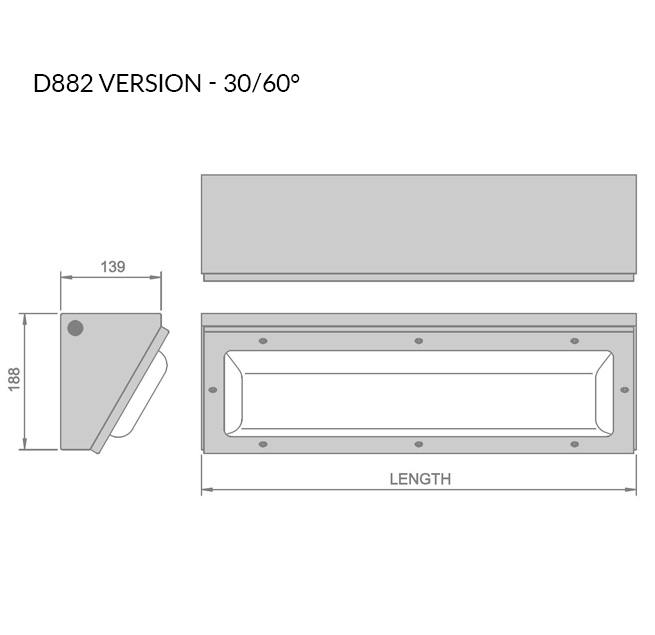

Tuscan 88 Angled D882 Version Drawing 30 60 degree

Product Information

Tuscan 88 Angled directs light precisely where it’s needed, reducing wasted illumination and minimising glare. Incorporating a removable gear tray ensures Tuscan 88 Angled is quick and easy to maintain, whilst enabling sustainable technology upgrades.

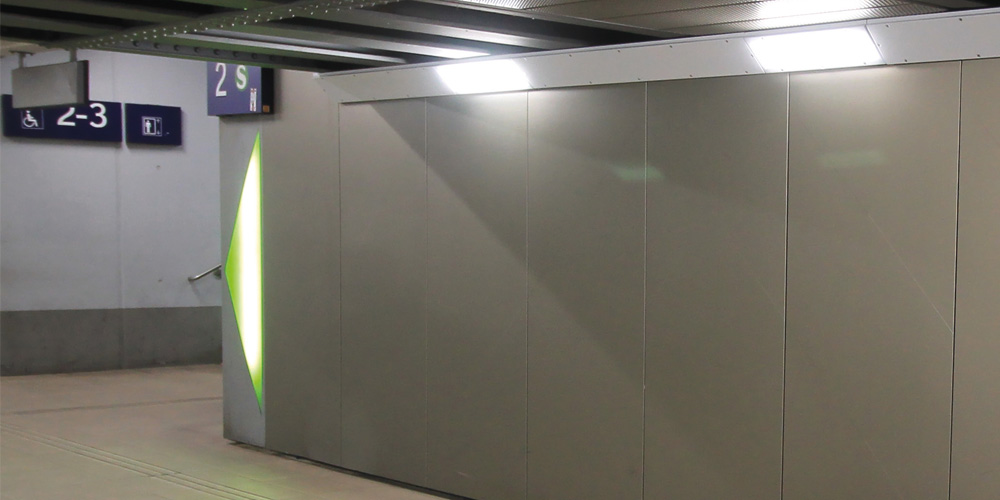

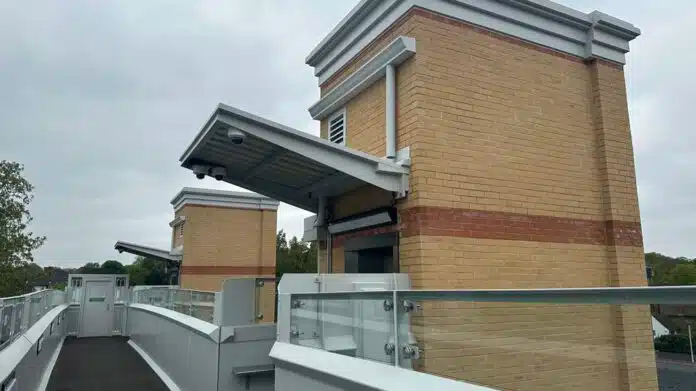

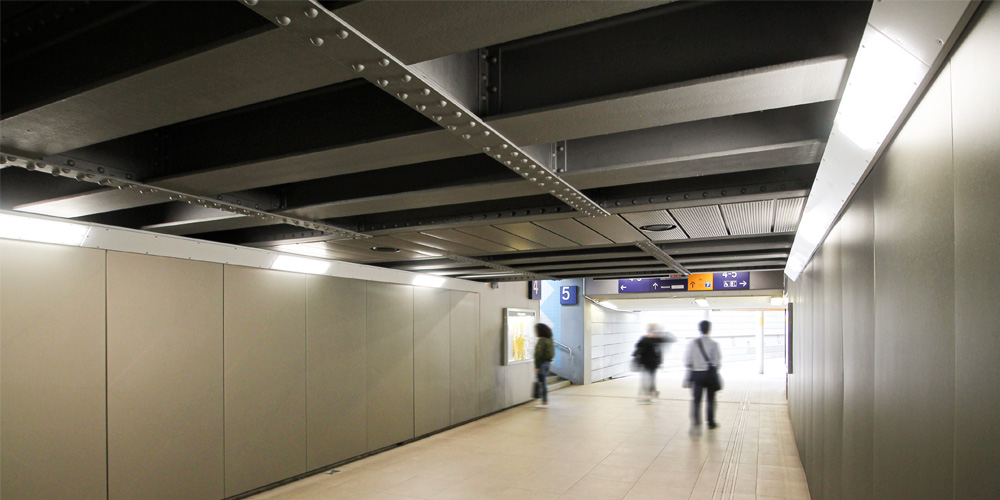

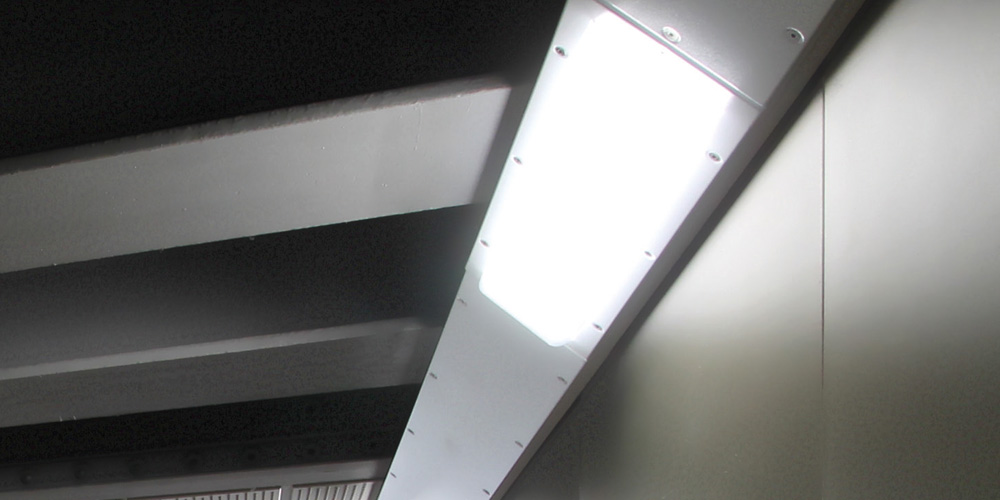

Community and Public applications include subways, car parks, and the perimeter of buildings. Custodial applications include police stations, law courts and association areas. Transport applications include covered platforms, general circulation, back of house, stairs and footbridges.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK16 (150J). Learn More.

Ingress Protection Rating: IP65. Learn More.

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Cornice mounting at either 45° or 30°/60°.

Cable Entry: Provision for conduit entry in back and ends.

Design Life: 30+ years. Learn More.

Technical Information

Tuscan 88 Angled	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
L700mm x H188mm x W139mm - 30/60 Degree angle
D882-2-1500N-X-TB	1377	15.6	88	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating
	6	C
D882-2-2000N-X-TB	1801	20.8	87	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating
	6	C
D882-2-2500N-X-TB	2297	26.8	86	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating
	6	C
D882-2-3000N-X-TB	2567	30.8	83	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating
	6	C
D882-2-1500W-X-TB	1308	15.6	84	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating
	6	D
D882-2-2000W-X-TB	1711	20.8	82	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating
	6	D
D882-2-2500W-X-TB	2182	26.8	81	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating
	6	D
D882-2-3000W-X-TB	2439	30.8	79	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating
	6	D
L1300mm x H188mm x W139mm - 30/60 Degree angle
D882-4-3000N-X-TB	2804	28.4	99	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating
	10.6	C
D882-4-4000N-X-TB	3718	38.8	96	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating
	10.6	C
D882-4-5000N-X-TB	4616	50.3	92	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating
	10.6	C
D882-4-6000N-X-TB	5298	58.4	91	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating
	10.6	C
D882-4-3000W-X-TB	2664	28.4	94	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating
	10.6	D
D882-4-4000W-X-TB	3532	38.8	91	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating
	10.6	D
D882-4-5000W-X-TB	4385	50.3	87	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating
	10.6	D
D882-4-6000W-X-TB	5033	58.4	86	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating
	10.6	D
L1600mm x H188mm x W139mm - 30/60 Degree angle
D882-5-3750N-X-TB	3565	34.8	102	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	588
	Weight (kg)	LED Energy Rating
	12.4	C
D882-5-5000N-X-TB	4681	47.6	98	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	588
	Weight (kg)	LED Energy Rating
	12.4	C
D882-5-6250N-X-TB	5860	62.5	94	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	588
	Weight (kg)	LED Energy Rating
	12.4	C
D882-5-7500N-X-TB	6520	72.1	90	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	588
	Weight (kg)	LED Energy Rating
	12.4	C
D882-5-3750W-X-TB	3387	34.8	97	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	558
	Weight (kg)	LED Energy Rating
	12.4	D
D882-5-5000W-X-TB	4447	47.6	93	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	558
	Weight (kg)	LED Energy Rating
	12.4	D
D882-5-6250W-X-TB	5567	62.5	89	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	558
	Weight (kg)	LED Energy Rating
	12.4	D
D882-5-7500W-X-TB	6194	72.1	86	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	558
	Weight (kg)	LED Energy Rating
	12.4	D
L700mm x H158mm x W158mm - 45 Degree angle
D883-2-1500N-X-TB	1377	15.6	88	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating
	5.7	C
D883-2-2000N-X-TB	1801	20.8	87	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating
	5.7	C
D883-2-2500N-X-TB	2297	26.8	86	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating
	5.7	C
D883-2-3000N-X-TB	2567	30.8	83	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating
	5.7	C
D883-2-1500W-X-TB	1308	15.6	84	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating
	5.7	D
D883-2-2000W-X-TB	1711	20.8	82	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating
	5.7	D
D883-2-2500W-X-TB	2182	26.8	81	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating
	5.7	D
D883-2-3000W-X-TB	2439	30.8	79	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating
	5.7	D
L1300mm x H158mm x W158mm - 45 Degree angle
D883-4-3000N-X-TB	2804	28.4	99	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating
	10.1	C
D883-4-4000N-X-TB	3718	38.8	96	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating
	10.1	C
D883-4-5000N-X-TB	4616	50.3	92	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating
	10.1	C
D883-4-6000N-X-TB	5298	58.4	91	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating
	10.1	C
D883-4-3000W-X-TB	2664	28.4	94	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating
	10.1	D
D883-4-4000W-X-TB	3532	38.8	91	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating
	10.1	D
D883-4-5000W-X-TB	4385	50.3	87	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating
	10.1	D
D883-4-6000W-X-TB	5033	58.4	86	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating
	10.1	D
L1600mm x H158mm x W158mm - 45 Degree angle
D883-5-3750N-X-TB	3565	34.8	102	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	588
	Weight (kg)	LED Energy Rating
	11.5	C
D883-5-5000N-X-TB	4681	47.6	98	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	588
	Weight (kg)	LED Energy Rating
	11.5	C
D883-5-6250N-X-TB	5860	62.5	94	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	588
	Weight (kg)	LED Energy Rating
	11.5	C
D883-5-7500N-X-TB	6520	72.1	90	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	588
	Weight (kg)	LED Energy Rating
	11.5	C
D883-5-3750W-X-TB	3387	34.8	97	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	558
	Weight (kg)	LED Energy Rating
	11.5	D
D883-5-5000W-X-TB	4447	47.6	93	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	558
	Weight (kg)	LED Energy Rating
	11.5	D
D883-5-6250W-X-TB	5567	62.5	89	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	558
	Weight (kg)	LED Energy Rating
	11.5	D
D883-5-7500W-X-TB	6194	72.1	86	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	558
	Weight (kg)	LED Energy Rating
	11.5	D

Fitting Options

Anti-Graffiti Diffuser Coating	-AG
Coastal Paint Finish (Zone 2)	-Z2
Blank Ends	-BE
Network Rail Specs	-NT
Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Central Battery Maintained 110V	-EV
Change Over Relay, 240V Relay Supplied	-ER
Maintained Emergency 3 Hour, Self Test	-ES
Maintained Emergency 3 Hour, DALI	-ED
Textured White	-TW
Textured Black	-TB
Matt Titanium	-MT
