Tuscan 88

IP65

IK16 (150J)

Linear

Class I

Recessed

Surface

Community and Public

Custodial

Tuscan 88 is a vandal resistant luminaire specifically designed for challenging environments. Such as custodial facilities, transport applications and community and public installations.

Standard Colours

Product Configurator

Product Information

Tuscan 88’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution. Incorporating a removable gear tray ensures Tuscan 88 is quick and easy to maintain, whilst enabling sustainable technology upgrades.

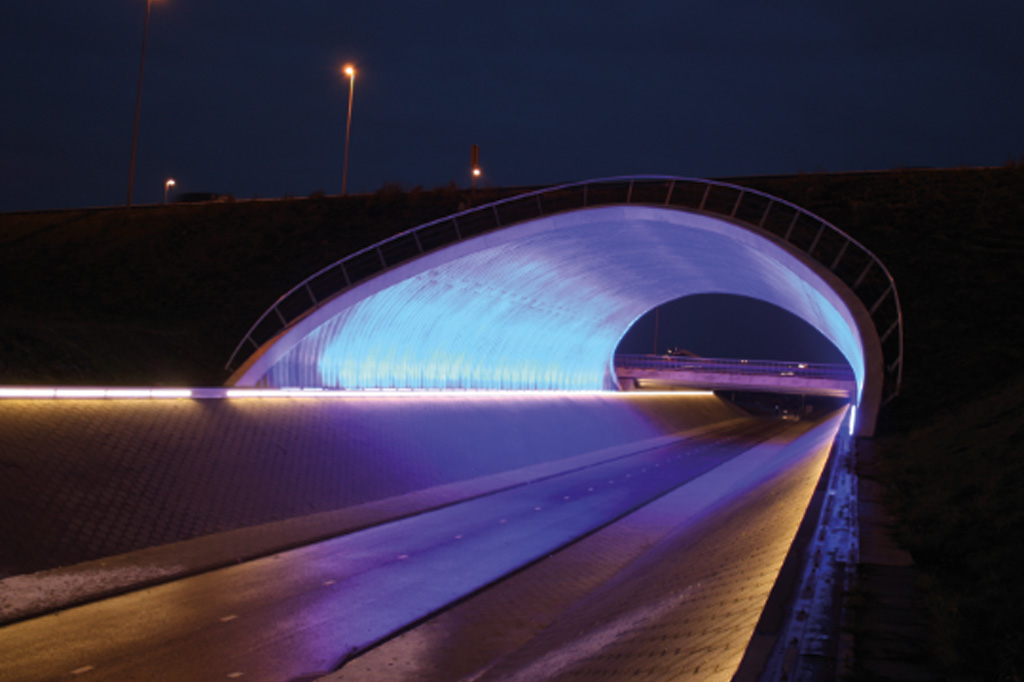

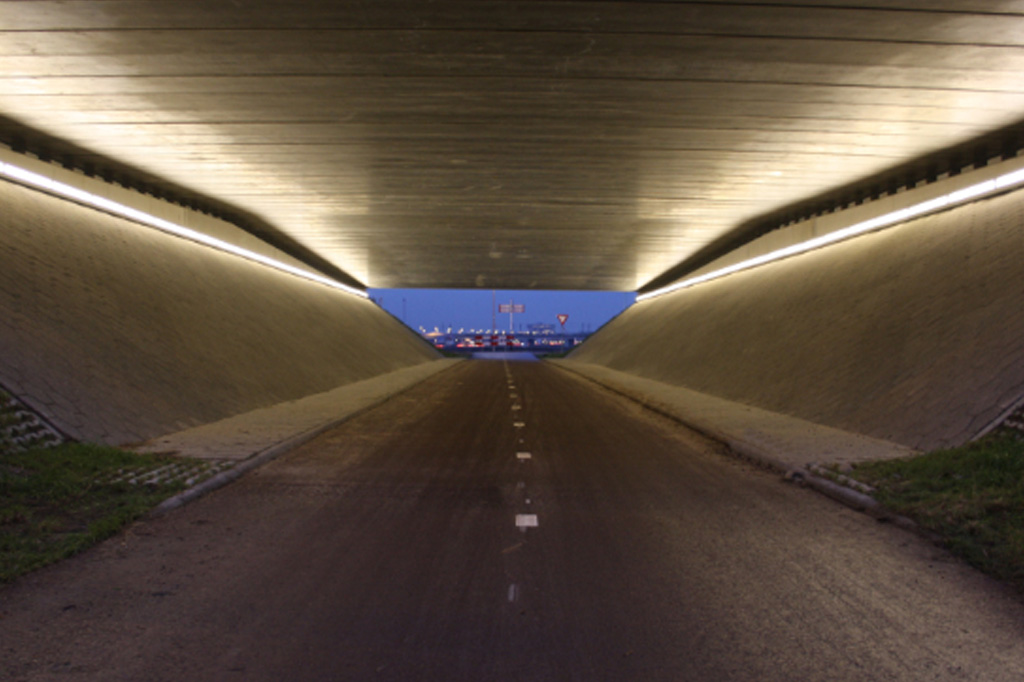

Community and Public applications include subways, car parks, and the perimeter of buildings. Custodial applications include police stations, law courts and association areas. Transport applications include covered platforms, general circulation, back of house, stairs and footbridges.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK16 (150J). What is IK Rating?

Ingress Protection Rating: IP65. What is IP Rating?

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Wall or ceiling. (Recessed option, ceiling only)

Cable Entry: Provision for conduit entry in back and ends. (N/A for Network Rail options)

Design Life: 30+ years. What is Design Life?

Technical Information

Tuscan 88	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
L700mm
D880-2-1500N-X-TB	1377	15.6	88	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating	Dimensions

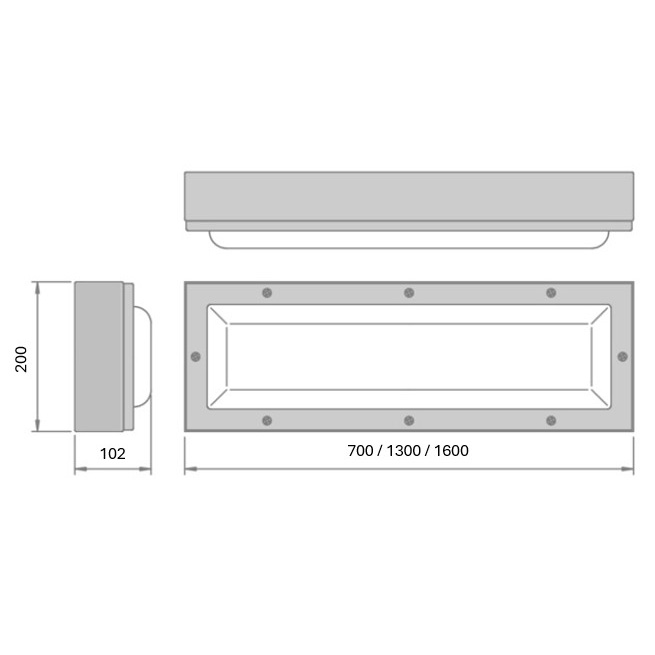

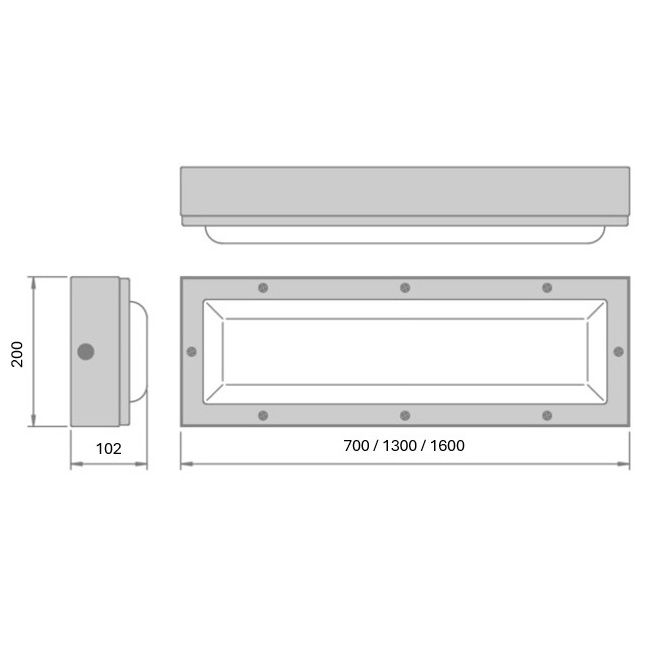

	5.7	C	200mm x 102mm
D880-2-2000N-X-TB	1801	20.8	87	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating	Dimensions
	5.7	C	200mm x 102mm
D880-2-2500N-X-TB	2297	26.8	86	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating	Dimensions
	5.7	C	200mm x 102mm
D880-2-3000N-X-TB	2567	30.8	83	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	457
	Weight (kg)	LED Energy Rating	Dimensions
	5.7	C	200mm x 102mm
D880-2-1500W-X-TB	1308	15.6	84	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating	Dimensions
	5.7	D	200mm x 102mm
D880-2-2000W-X-TB	1711	20.8	83	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating	Dimensions
	5.7	D	200mm x 102mm
D880-2-2500W-X-TB	2182	26.8	81	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating	Dimensions
	5.7	D	200mm x 102mm
D880-2-3000W-X-TB	2439	30.8	79	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	434
	Weight (kg)	LED Energy Rating	Dimensions
	5.7	D	200mm x 102mm
L1300mm
D880-4-3000N-X-TB	2804	28.4	99	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating	Dimensions
	9.5	C	200mm x 102mm
D880-4-4000N-X-TB	3718	38.8	96	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating	Dimensions
	9.5	C	200mm x 102mm
D880-4-5000N-X-TB	4616	50.3	92	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating	Dimensions
	9.5	C	200mm x 102mm
D880-4-6000N-X-TB	5298	58.4	91	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	638
	Weight (kg)	LED Energy Rating	Dimensions
	9.5	C	200mm x 102mm
D880-4-3000W-X-TB	2664	28.4	94	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating	Dimensions
	9.5	D	200mm x 102mm
D880-4-4000W-X-TB	3532	38.8	91	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating	Dimensions
	9.5	D	200mm x 102mm
D880-4-5000W-X-TB	4385	50.3	87	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating	Dimensions
	9.5	D	200mm x 102mm
D880-4-6000W-X-TB	5033	58.4	86	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	606
	Weight (kg)	LED Energy Rating	Dimensions
	9.5	D	200mm x 102mm
L1600mm
D880-5-3750N-X-TB	3565	34.8	102	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	664
	Weight (kg)	LED Energy Rating	Dimensions
	11.5	C	200mm x 102mm
D880-5-5000N-X-TB	4681	47.6	98	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	664
	Weight (kg)	LED Energy Rating	Dimensions
	11.5	C	200mm x 102mm
D880-5-6250N-X-TB	5860	62.5	94	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	664
	Weight (kg)	LED Energy Rating	Dimensions
	11.5	C	200mm x 102mm
D880-5-7500N-X-TB	6520	72.1	90	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	664
	Weight (kg)	LED Energy Rating	Dimensions
	11.5	C	200mm x 102mm
D880-5-3750W-X-TB	3387	34.8	97	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	630
	Weight (kg)	LED Energy Rating	Dimensions
	11.5	D	200mm x 102mm
D880-5-5000W-X-TB	4447	47.6	93	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	630
	Weight (kg)	LED Energy Rating	Dimensions
	11.5	D	200mm x 102mm
D880-5-6250W-X-TB	5567	62.5	89	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	630
	Weight (kg)	LED Energy Rating	Dimensions
	11.5	D	200mm x 102mm
D880-5-7500W-X-TB	6194	72.1	86	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	630
	Weight (kg)	LED Energy Rating	Dimensions
	11.5	D	200mm x 102mm

Fitting Options

Anti-Graffiti Diffuser Coating	-AG
Coastal Paint Finish (Zone 2)	-Z2
Network Rail Specs	-NT
Blank Ends	-BE
Fully Recessed	-R
DALI with **% Pre-set	-D
Maintained Emergency 3 Hour, Self Test	-ES
Change Over Relay, 240V Relay Supplied	-ER
Central Battery Maintained 110V	-EV
Maintained Emergency 3 Hour, DALI	-ED
Maintained Emergency 3 Hour	-E3
Textured Black	-TB
Textured White	-TW
Matt Titanium	-MT
Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA
Night Time Dimming 6% Pre-set	-DN

• For paint colour options, please replace -TB with required paint code.
• Emergency options (-E3/ -ES/ -ED/ -ER/ -EV) and Dimming options (-DA/ -DI) cannot be combined on all 700mm versions.
