Terminus Wall S12 is a vandal resistant luminaire specifically designed in accordance with fire precautions for subsurface rail stations (Section 12).
Standard Colours
Terminus Wall S12’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare. Incorporating a removable gear tray ensures Terminus Wall S12 is quick and easy to maintain, whilst enabling sustainable technology upgrades.
Terminus Wall S12 complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.
Applications include general circulation areas and station forecourts.
Impact Resistance Rating: IK08 (5J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Extruded and die cast aluminium body.
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: Clear toughened glass diffuser.
Driver: Integral fused electronic control gear with terminal box.
Mounting: Wall.
Cable Entry: Provision for cable entry into terminal box.
| Terminus Wall S12 | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|

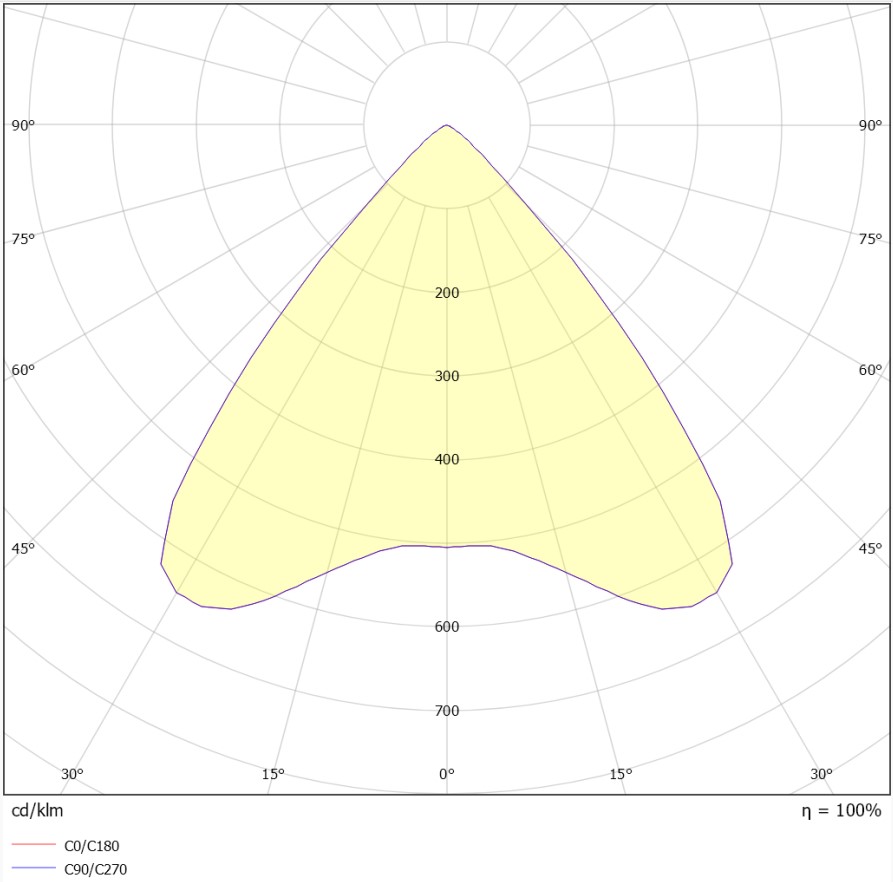

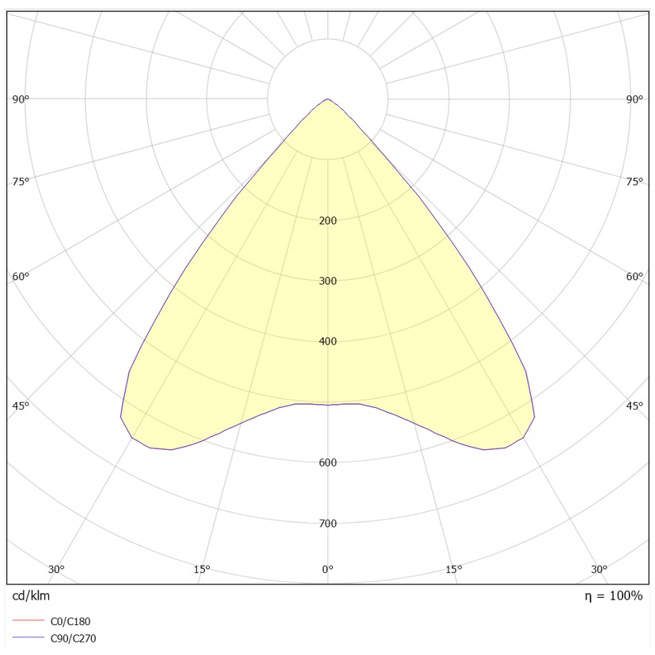

| Wide Clear | ||||
| TMW-1100NW-C-MT-ST | 966 | 8.3 | 117 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||

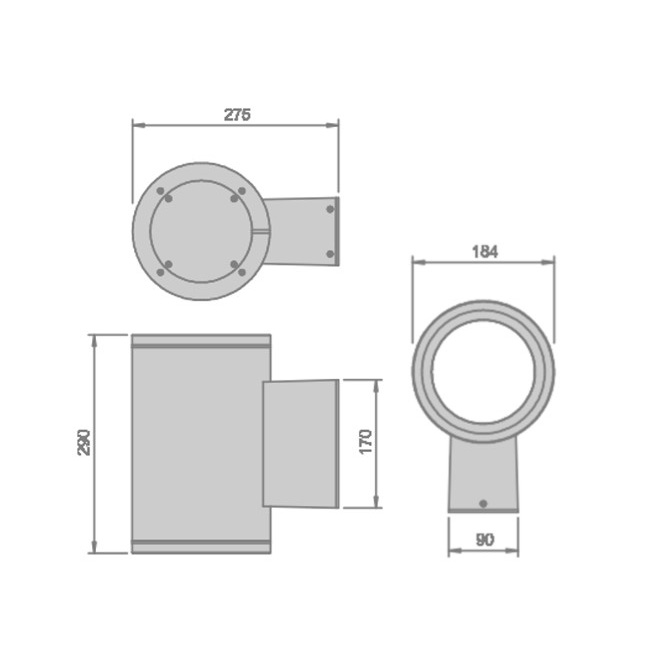

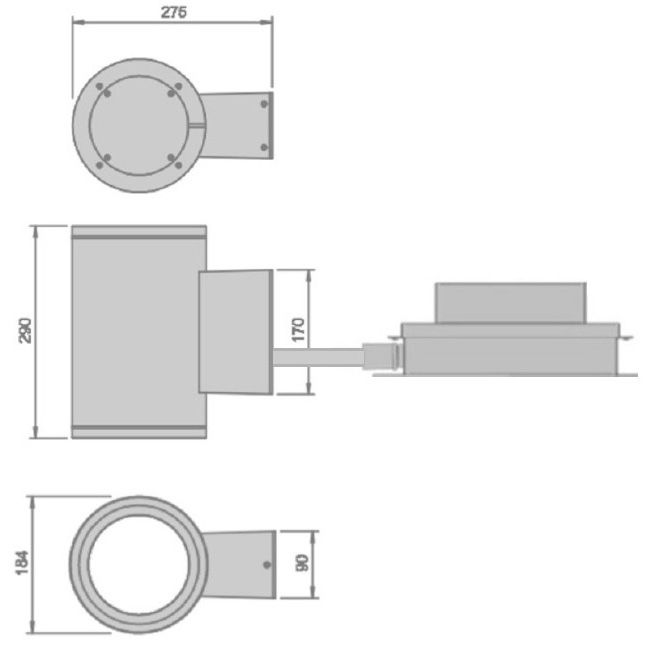

| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-2000NW-C-MT-ST | 1674 | 14.2 | 118 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-3000NW-C-MT-ST | 2367 | 19.8 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-4500NW-C-MT-ST | 3635 | 31.2 | 116 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-1100WW-C-MT-ST | 918 | 8.3 | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-2000WW-C-MT-ST | 1590 | 14.2 | 112 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-3000WW-C-MT-ST | 2249 | 19.8 | 114 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-4500WW-C-MT-ST | 3453 | 31.2 | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||

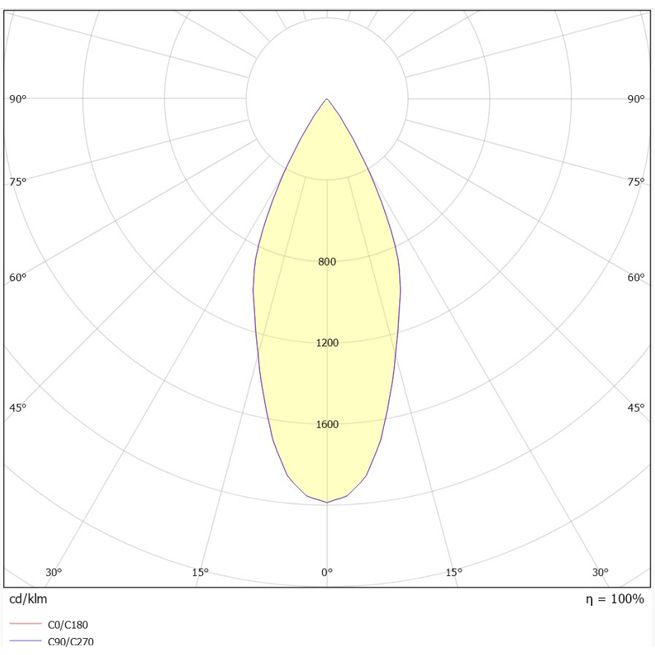

| Medium Clear | ||||
| TMW-1100NM-C-MT-ST | 943 | 8.2 | 115 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-2000NM-C-MT-ST | 1664 | 14.2 | 117 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-3000NM-C-MT-ST | 2332 | 20.1 | 116 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-4500NM-C-MT-ST | 3511 | 31.2 | 113 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-1100WM-C-MT-ST | 896 | 8.2 | 109 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-2000WM-C-MT-ST | 1581 | 14.2 | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-3000WM-C-MT-ST | 2215 | 20.1 | 110 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-4500WM-C-MT-ST | 3335 | 31.2 | 107 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||

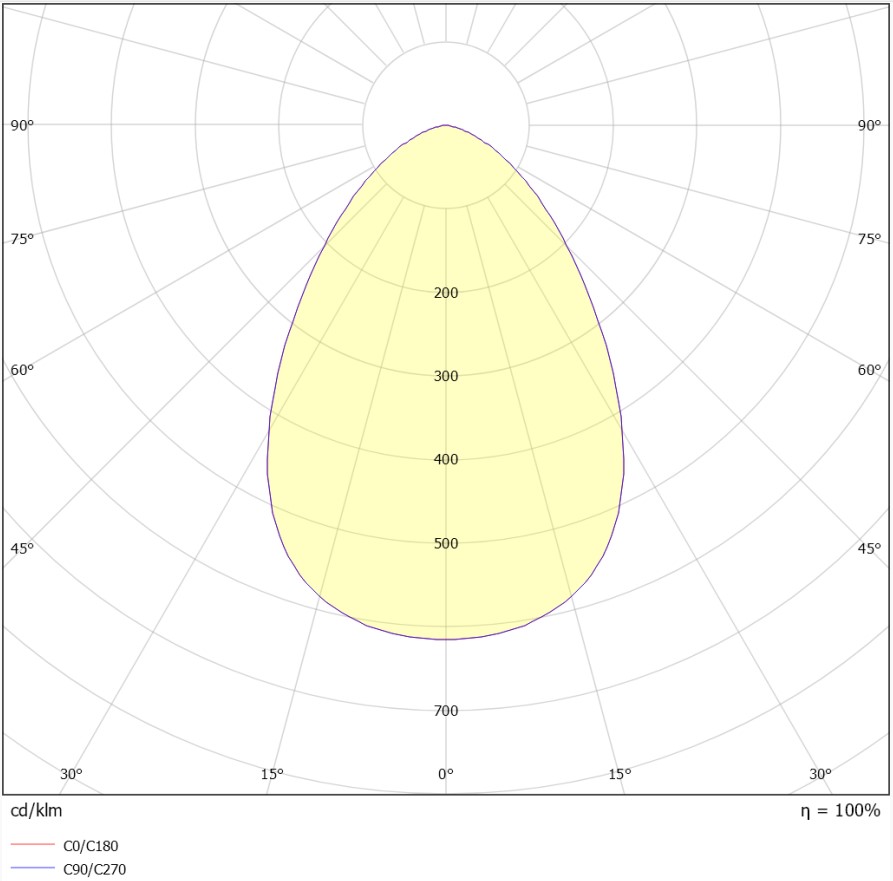

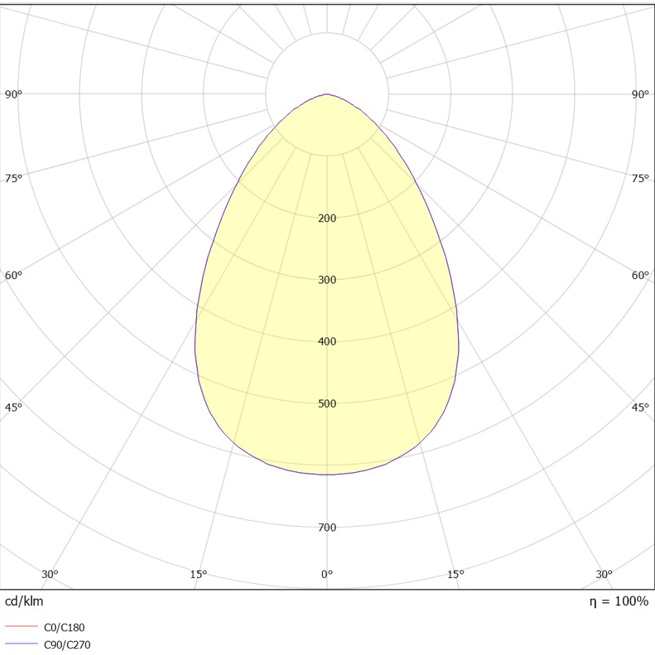

| Wide Frosted | ||||
| TMW-1100NW-F-MT-ST | 853 | 8.1 | 105 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 489 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-2000NW-F-MT-ST | 1484 | 13.4 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 489 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-3000NW-F-MT-ST | 2152 | 20.1 | 107 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 489 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-4500NW-F-MT-ST | 3292 | 31.5 | 105 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 489 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-1100WW-F-MT-ST | 810 | 8.1 | 100 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 464 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-2000WW-F-MT-ST | 1410 | 13.4 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 464 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-3000WW-F-MT-ST | 2044 | 20.1 | 102 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 464 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-4500WW-F-MT-ST | 3127 | 31.5 | 99 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 464 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||

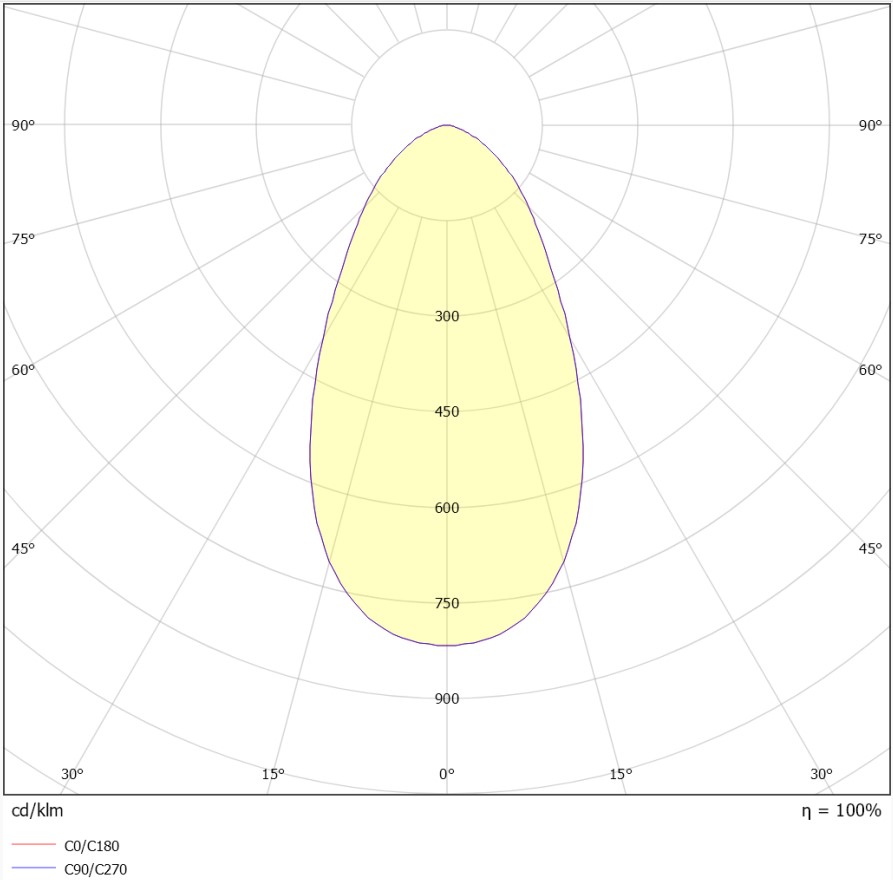

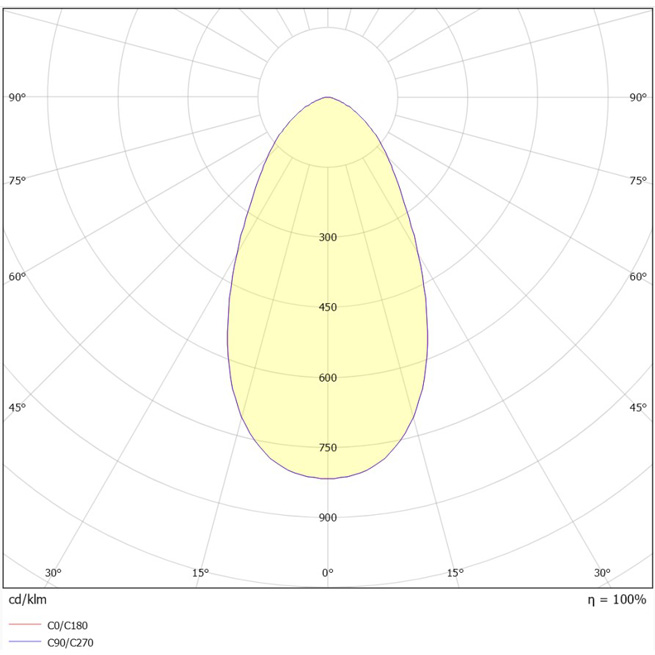

| Medium Frosted | ||||
| TMW-1100NM-F-MT-ST | 762 | 8.1 | 94 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 432 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-2000NM-F-MT-ST | 1365 | 14.5 | 94 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 432 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-3000NM-F-MT-ST | 1926 | 20.2 | 95 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 432 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-4500NM-F-MT-ST | 2955 | 31.3 | 94 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 432 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-1100WM-F-MT-ST | 724 | 8.1 | 89 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 410 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-2000WM-F-MT-ST | 1297 | 14.5 | 89 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 410 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-3000WM-F-MT-ST | 1830 | 20.2 | 91 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 410 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMW-4500WM-F-MT-ST | 2807 | 31.3 | 90 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 410 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| DALI-2 Dimming / Monitoring | -DA |

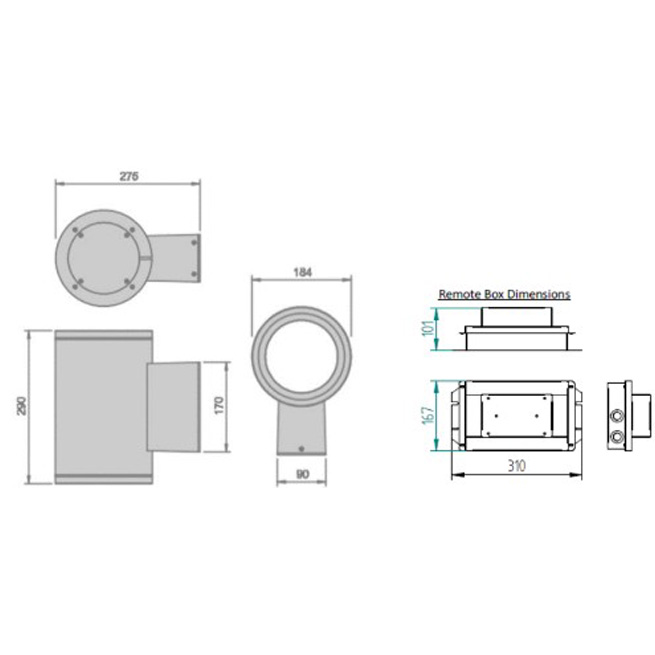

| Maintained Emergency 3 Hour in Remote Box | -EB |
| Matt White | -MW |
| Matt Titanium | -MT |
| Matt Silver | -MS |
• For paint colour options, please replace -MT with required paint code.
• For Post Top version, please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
