Terminus is a vandal resistant downlight designed specifically for transport applications and community and public installations.
Standard Colours
Terminus’ uniform light distribution reduces glare and provides focused illumination for specific areas or objects. Incorporating a removable gear tray ensures Terminus is quick and easy to maintain, whilst enabling sustainable technology upgrades.

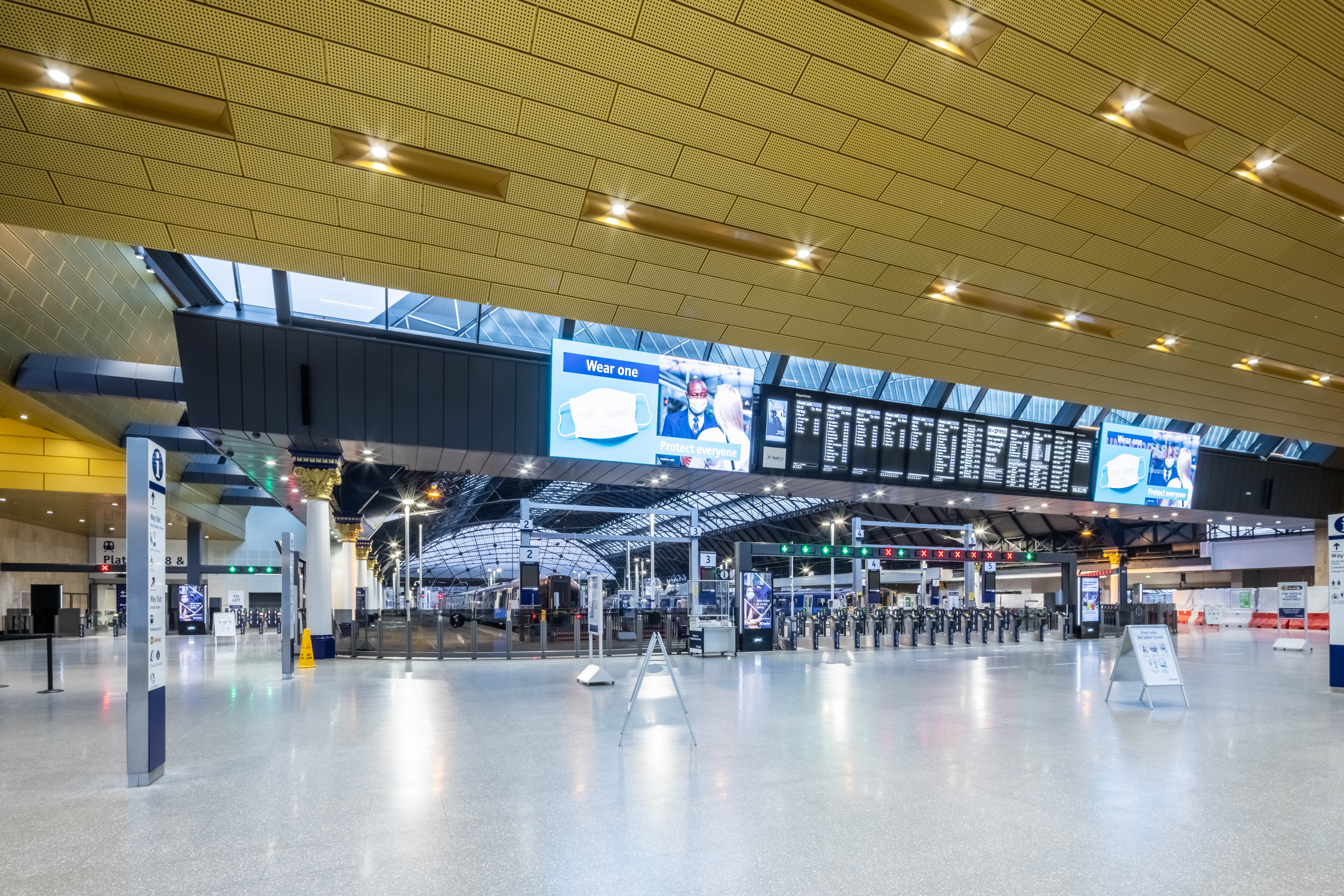

Community and Public applications include the exterior and perimeter of buildings. Transport applications include general circulation areas, public toilets, waiting rooms, station forecourts and ticket areas.
Impact Resistance Rating: IK12 (62.5J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Die cast aluminium body.
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: Clear polycarbonate diffuser.
Driver: Remote electronic control gear.
Mounting: Recessed ceiling.
Cable Entry: Provision for cable entry in remote driver box.
| Terminus | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| Wide Beam | ||||
| TMR-1100NW-C-MT | 964 | 8.2 | 118 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 472 | 4 | C | Ø235mm, 142mm | |
| TMR-2000NW-C-MT | 1676 | 14.2 | 118 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 472 | 4 | C | Ø235mm, 142mm | |
| TMR-3000NW-C-MT | 2387 | 20 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 472 | 4 | C | Ø235mm, 142mm | |
| TMR-4500NW-C-MT | 3636 | 31.3 | 116 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 472 | 4 | C | Ø235mm, 142mm | |
| TMR-1100WW-C-MT | 916 | 8.2 | 112 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-2000WW-C-MT | 1592 | 14.2 | 112 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-3000WW-C-MT | 2268 | 20 | 113 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-4500WW-C-MT | 3454 | 31.3 | 110 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| Medium Beam | ||||
| TMR-1100NM-C-MT | 908 | 8.1 | 112 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-2000NM-C-MT | 1585 | 14.2 | 112 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-3000NM-C-MT | 2269 | 19.8 | 115 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-4500NM-C-MT | 3463 | 30.8 | 112 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-1100WM-C-MT | 863 | 8.1 | 106 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 425 | 4 | C | Ø235mm, 142mm | |
| TMR-2000WM-C-MT | 1506 | 14.2 | 106 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 425 | 4 | C | Ø235mm, 142mm | |
| TMR-3000WM-C-MT | 2156 | 19.8 | 109 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 425 | 4 | C | Ø235mm, 142mm | |
| TMR-4500WM-C-MT | 3290 | 30.8 | 107 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 425 | 4 | C | Ø235mm, 142mm | |
| Wide Asymmetric | ||||
| TMR-1100NWA-C-MT | 791 | 8.3 | 95 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 472 | 4 | C | Ø235mm, 142mm | |
| TMR-2000NWA-C-MT | 1414 | 14.9 | 95 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 472 | 4 | C | Ø235mm, 142mm | |
| TMR-3000NWA-C-MT | 1981 | 21.1 | 94 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 472 | 4 | C | Ø235mm, 142mm | |
| TMR-4500NWA-C-MT | 3232 | 31.1 | 104 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 472 | 4 | C | Ø235mm, 142mm | |
| TMR-1100WWA-C-MT | 751 | 8.2 | 91 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-2000WWA-C-MT | 1343 | 14.2 | 90 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-3000WWA-C-MT | 1882 | 20 | 89 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-4500WWA-C-MT | 3070 | 31.3 | 99 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| Medium Asymmetric | ||||
| TMR-1100NMA-C-MT | 788 | 8.3 | 95 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-2000NMA-C-MT | 1406 | 15 | 94 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-3000NMA-C-MT | 1969 | 21.2 | 93 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-4500NMA-C-MT | 2814 | 31 | 91 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 448 | 4 | C | Ø235mm, 142mm | |
| TMR-1100WMA-C-MT | 749 | 8.1 | 90 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 425 | 4 | C | Ø235mm, 142mm | |
| TMR-2000WMA-C-MT | 1336 | 14.2 | 89 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 425 | 4 | C | Ø235mm, 142mm | |
| TMR-3000WMA-C-MT | 1871 | 19.8 | 88 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 425 | 4 | C | Ø235mm, 142mm | |
| TMR-4500WMA-C-MT | 2673 | 30.8 | 86 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 425 | 4 | C | Ø235mm, 142mm | |
| DALI-2 Dimming / Monitoring | -DA |
| Central Battery Maintained 110V | -EV |
| Maintained Emergency 3 Hour in Remote Box | -EB |
| Change Over Relay, 240V Relay Supplied | -ER |
| Matt White | -MW |
| Matt Titanium | -MT |
| Matt Silver | -MS |
• For paint colour options, please replace -MT with required paint code.
• HT Applies to standard version. For any options (e.g. -E3), please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• Minimum recess void depth can be reduced from 250mm to 150mm for Ambient Temperature ≤40°C.
• Please note that remote box is IP65 rated.
