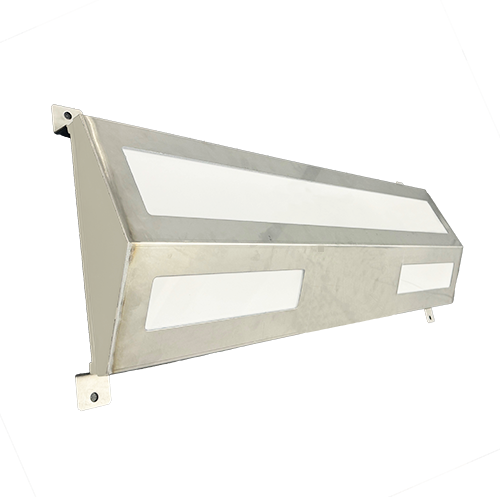

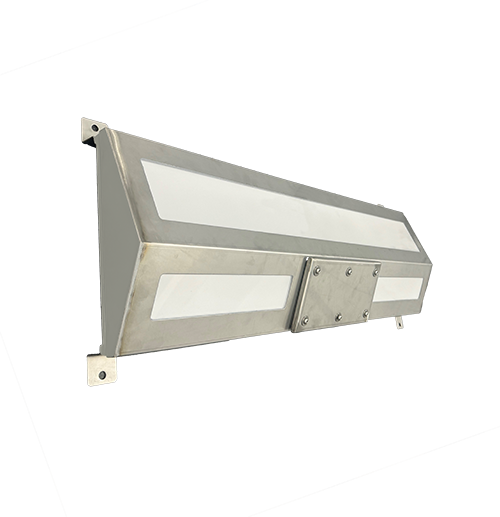

Redoubt 90 has been carefully designed to minimise glare, by restricting the output based on the illuminous surface area, in order to comply with BS-EN 12464-1 (1000lm per 300cm²). Redoubt 90 has been tested to IP69K to ensure cleaning at high pressure and temperature.

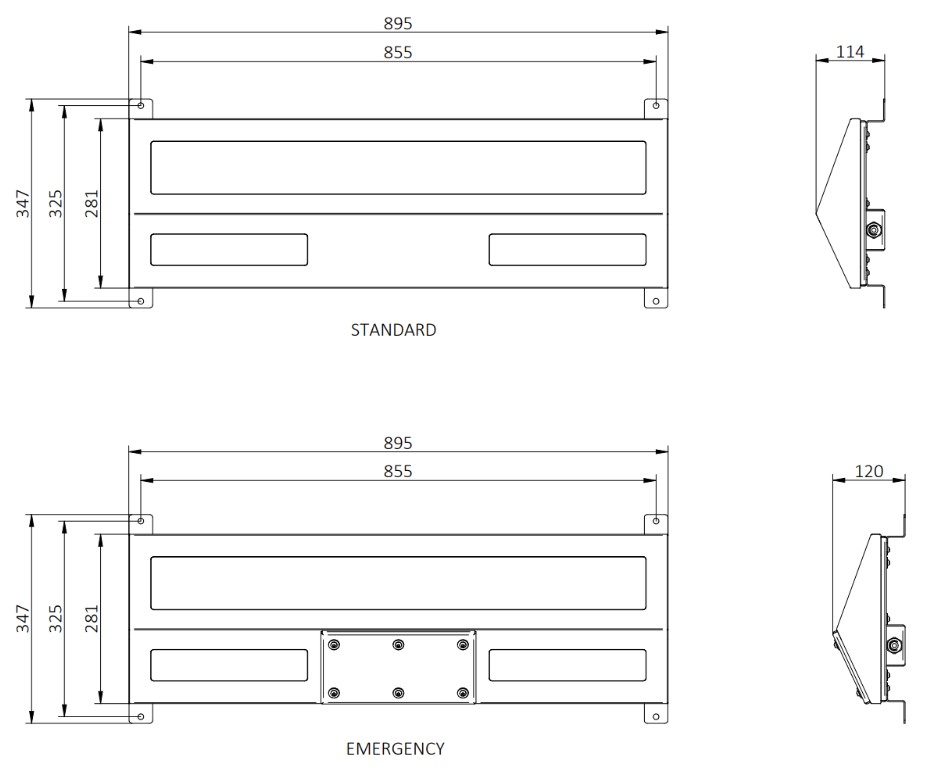

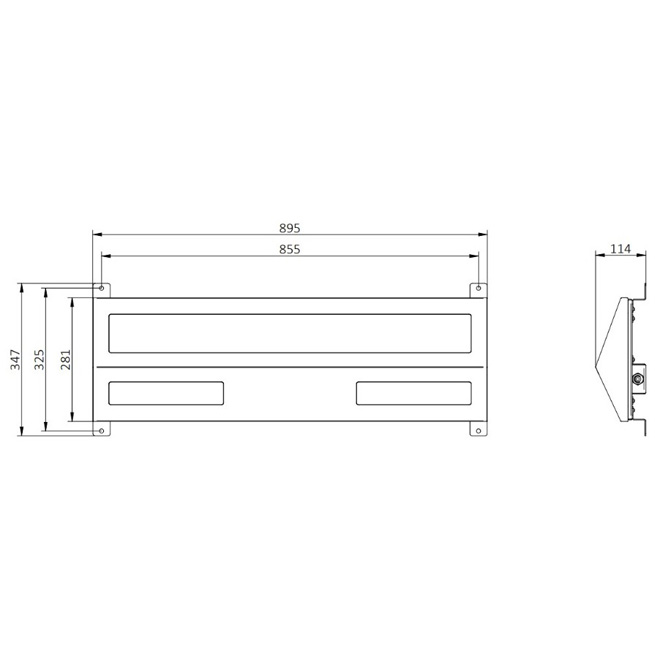

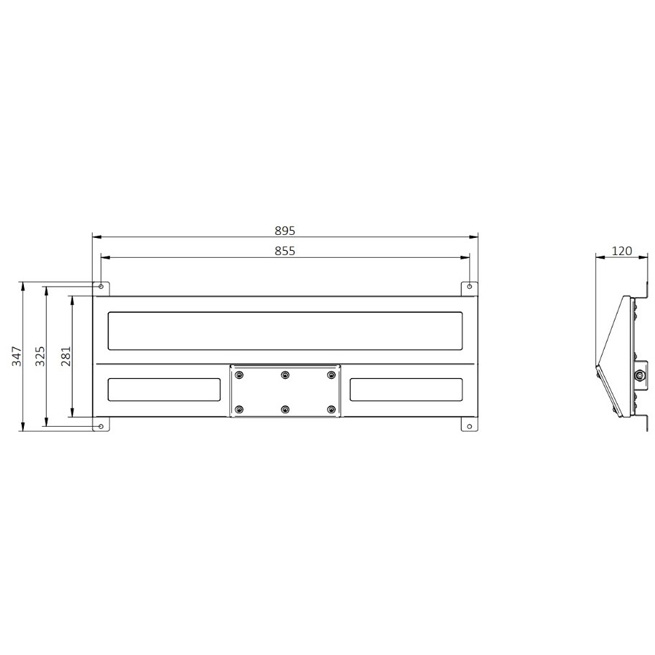

Redoubt 90, at 895mm in length, has been constructed in a way that allows for it to be fixed between stanchions. Redoubt 90 provides uniform lighting for both the underside of vehicles and the pit floor, incorporating separate upward and downward illumination. With high levels of impact, ingress and chemical resistance, Redoubt 90 is designed to endure the harsh environments expected within this application.
Rail applications include illuminating sunken, heavy duty maintenance pits within rail maintenance facilities.
