Product Information

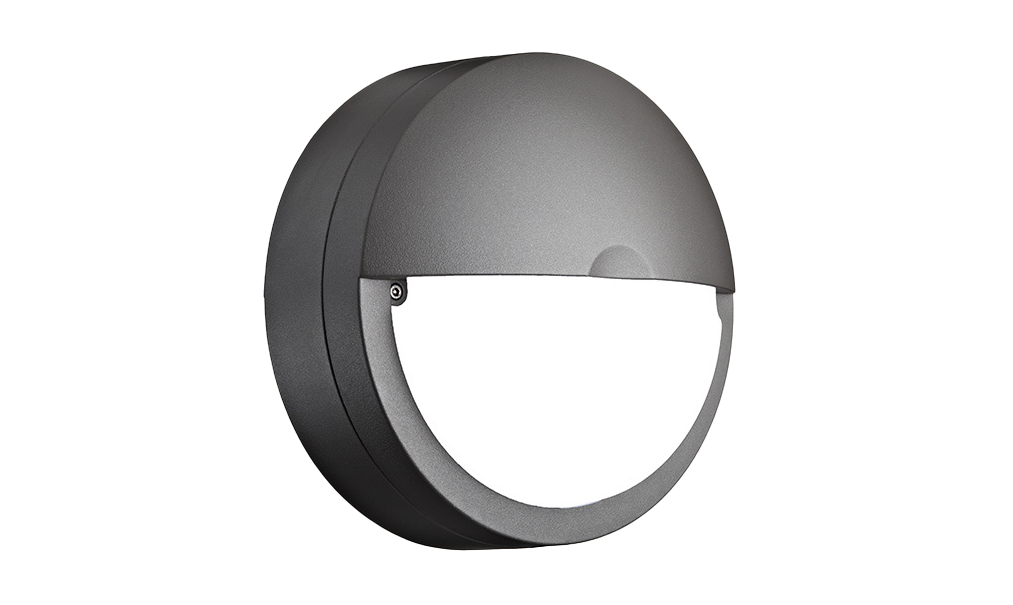

Quantum’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution. Incorporating a removable gear tray ensures Quantum is quick and easy to maintain, whilst enabling sustainable technology upgrades.
Applications include the exterior and perimeter of buildings.
This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK16 (150J). What is IK Rating?
Ingress Protection Rating: IP65. What is IP Rating?
Housing: Die cast aluminium body.
Paint: Polyester powder coat. All Colour Options Available Here.
Diffuser: Opal polycarbonate diffuser in casting secured with tamperproof screws.
Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.
Mounting: Wall.
Cable Entry: Provision for conduit entry in back.
Design Life: 30+ years. What is Design Life?

Technical Information

Quantum Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
Opal
QTM-1100N-X-MT 1150 14.1 82 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₇₀B₁₀>100,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions

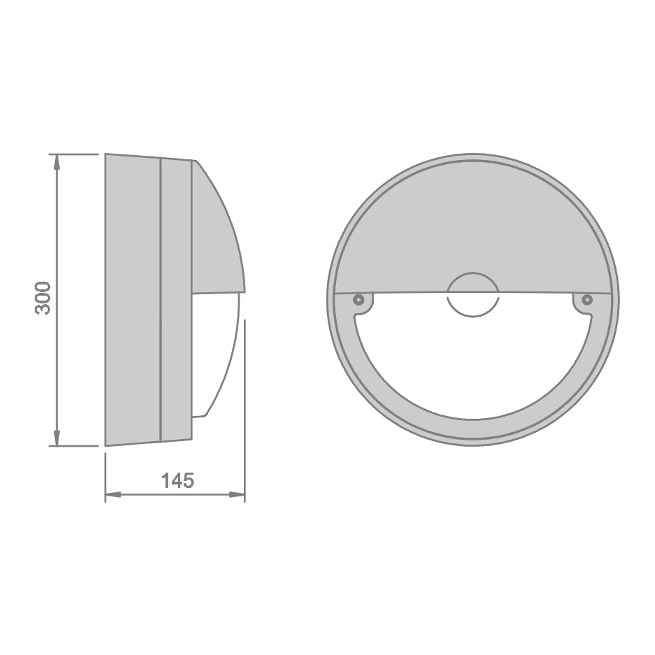

403 4 D Ø300mm, 145mm
QTM-1400N-X-MT 1503 18.3 82 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₇₀B₁₀>100,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
403 4 D Ø300mm, 145mm
QTM-1900N-X-MT 1855 23.8 78 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₇₀B₁₀>100,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
403 4 D Ø300mm, 145mm
QTM-1100W-X-MT 1093 14.1 77 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₇₀B₁₀>100,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
382 4 D Ø300mm, 145mm
QTM-1400W-X-MT 1428 18.3 78 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₇₀B₁₀>100,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
382 4 D Ø300mm, 145mm
QTM-1900W-X-MT 1762 23.8 74 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₇₀B₁₀>100,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
382 4 D Ø300mm, 145mm

Fitting Options

Photo Electronic Cell -PC

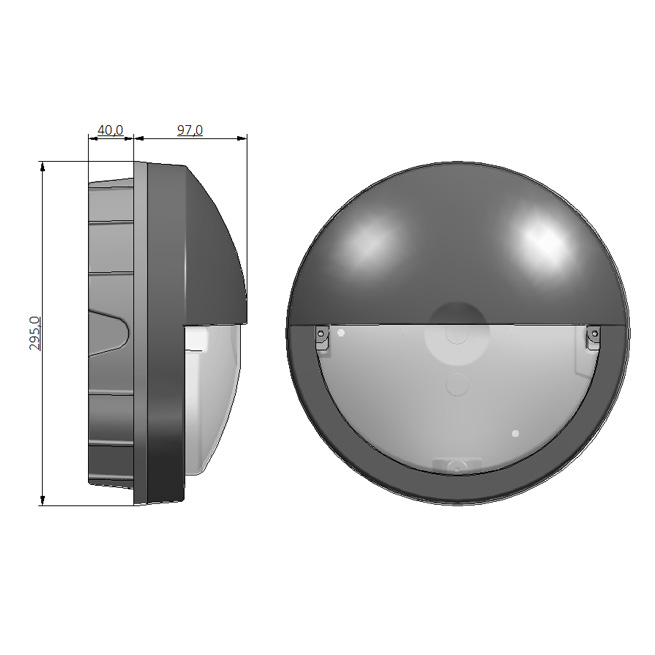

Semi-Recessed -SR

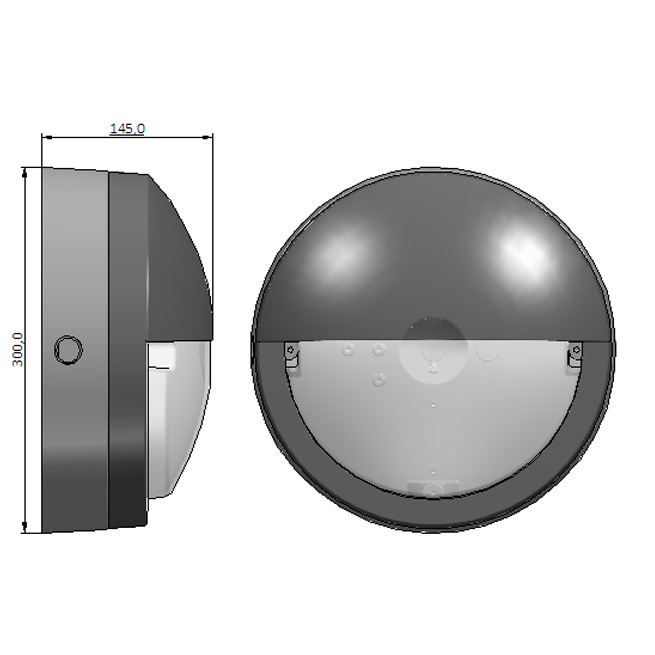

Conduit Hole in One End -1H

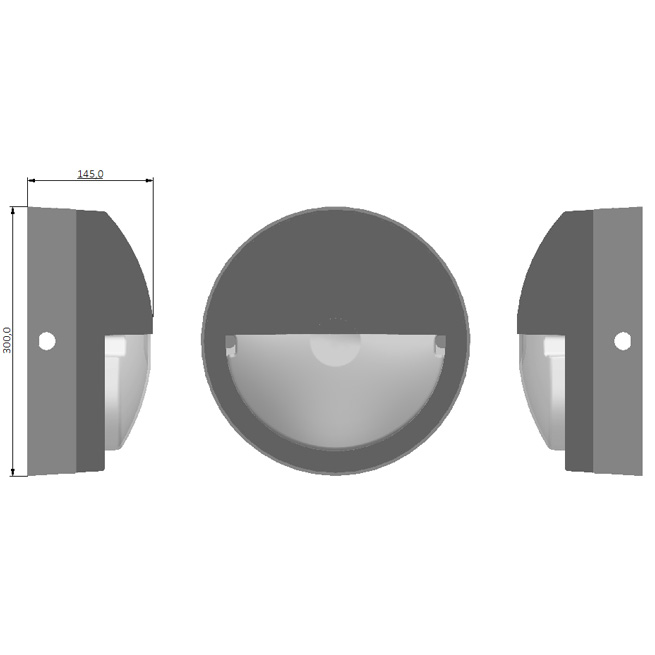

Conduit Hole in Both Ends -2H
Change Over Relay, 240V Relay Supplied -ER
Central Battery Maintained 110V -EV
Maintained Emergency 3 Hour -E3
Matt White -MW
Matt Silver -MS
Matt Titanium -MT

• For paint colour options, please replace -MT with required paint code.
• HT Applies to standard version. For any options (e.g. -E3), please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• -1H please note this is on the left hand side.

;
