Obex

IP65

IK20 (250J)

Linear

Class I

Surface

Custodial

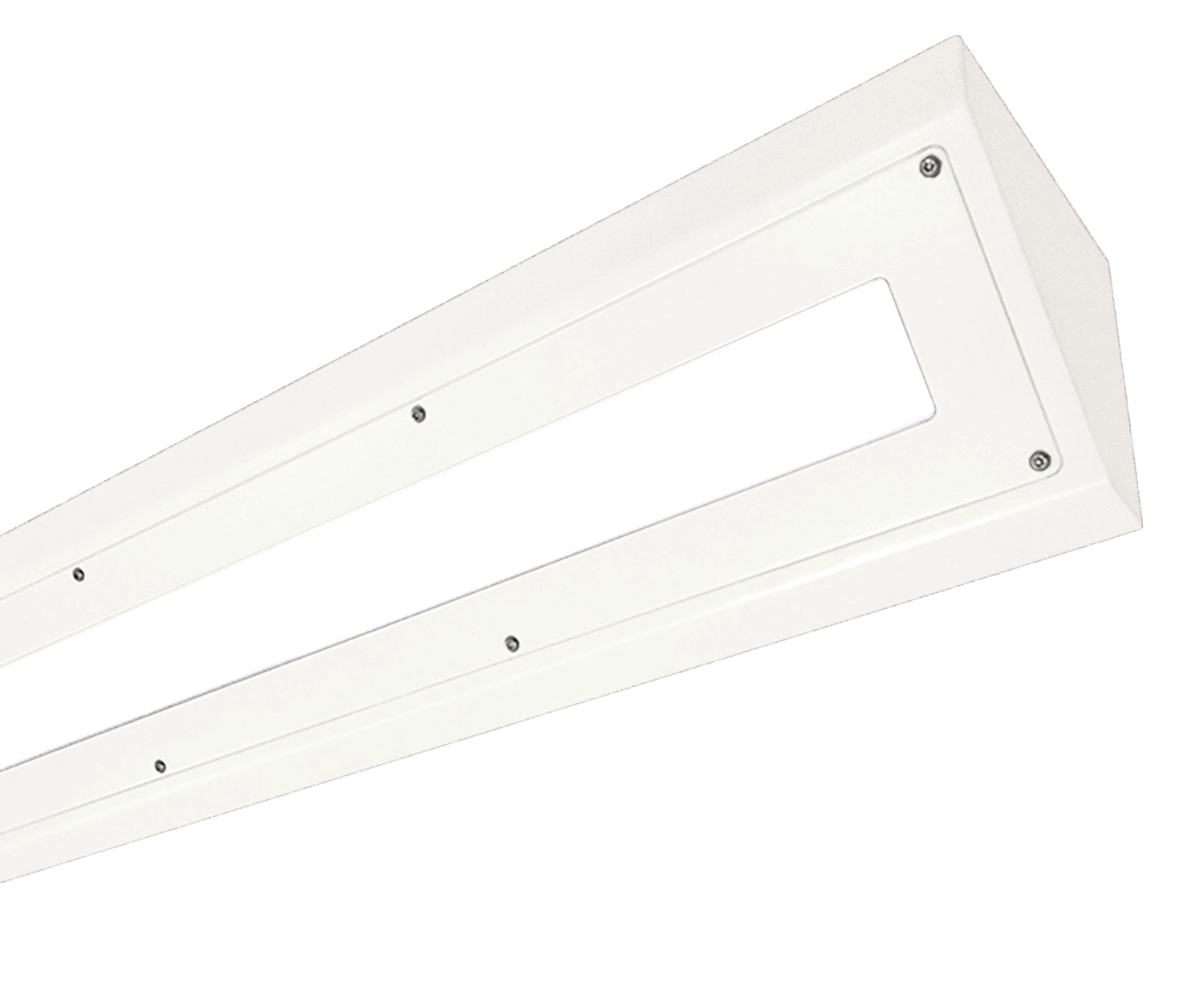

Obex is a ligature resistant luminaire specifically designed for challenging environments, such as custodial facilities.

Standard Colours

Product Information

Obex’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare. Obex’s flush smooth diffuser and front plate assembly aids easy cleaning and enhanced ligature resistance capability.

The ligature resistant design helps prevent self-harming. Complete with 3 light level switchable circuits for cleaning, daytime operation and night light.

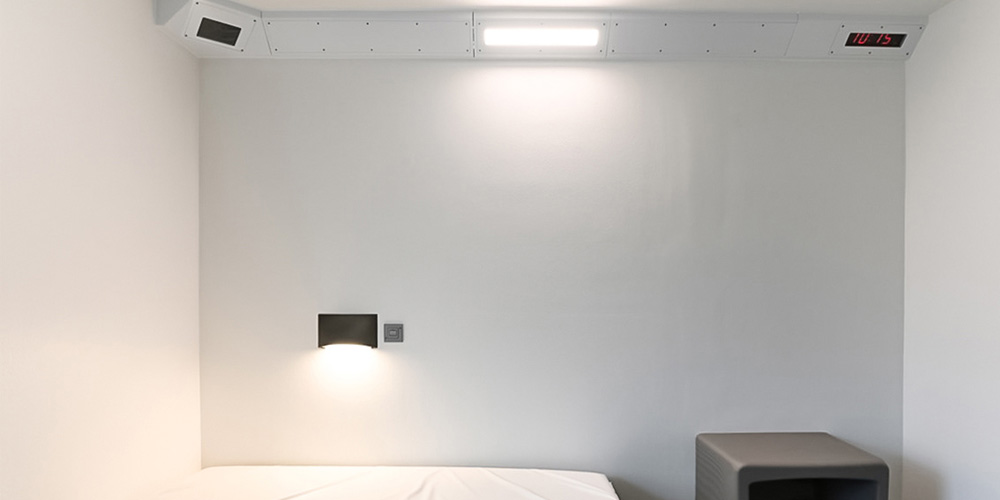

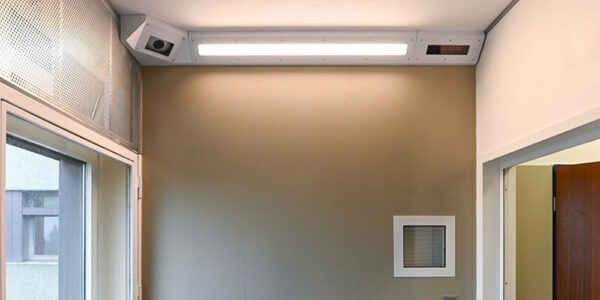

Applications include police stations and law courts.

Obex Trunking provides a cable management system for this luminaire.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

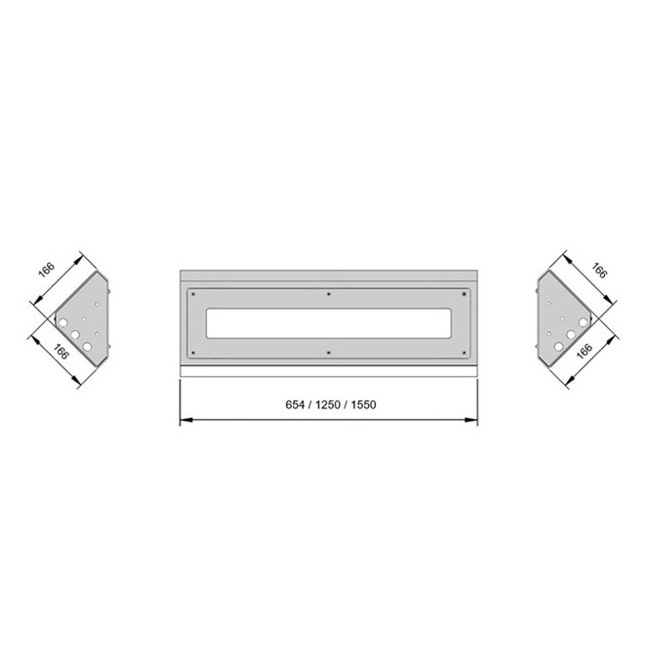

Product Specification

Impact Resistance Rating: IK20 (250J). What is IK Rating?

Ingress Protection Rating: IP65. What is IP Rating?

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Flush Opal polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on a removable tray for ease of repair/upgrade with fused plug & socket connector block for 3 level switching & night light. DALI drivers as standard.

Mounting: Cornice

Cable Entry: Provision for conduit entry in ends.

Design Life: 30+ years. What is Design Life?

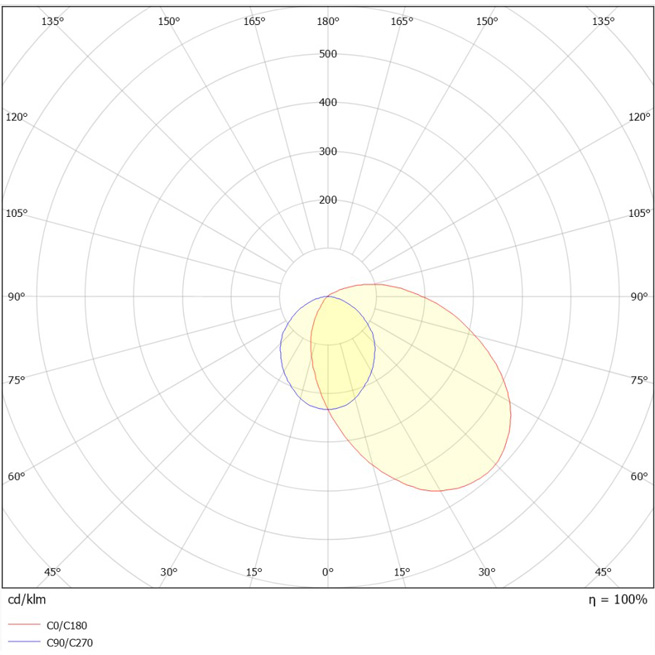

Technical Information

Obex	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
L648mm
OBX-G1-2-3000W-TW-DA	3524 (Daytime)	40	88	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	434	L₈₀B₁₀>72,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	391	12	C	166mm x 166mm
OBX-G1-2-3000N-TW-DA	3778 (Daytime)	40	95	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	476	L₈₀B₁₀>72,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	410	12	B	166mm x 166mm
L1250mm
OBX-G1-4-6000W-TW-DA	3368/5326 (Daytime/High Output)	34/54	99	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	434	L₈₀B₁₀>72,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	489	18.8	C	166mm x 166mm
OBX-G1-4-6000N-TW-DA	3647/5665 (Daytime/High Ouput)	34/54	107	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	476	L₈₀B₁₀>72,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	513	18.8	B	166mm x 166mm
L1551mm
OBX-G1-5-9000W-TW-DA	5723/9223 (Daytime/High Output)	61/98	94	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	434	L₈₀B₁₀>72,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	489	23.5	C	166mm x 166mm
OBX-G1-5-9000N-TW-DA	6191/10075 (Daytime/High Output)	61/99	101	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	476	L₈₀B₁₀>72,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	515	23.5	B	166mm x 166mm

Fitting Options

Microwave Sensor - Basic	-M1

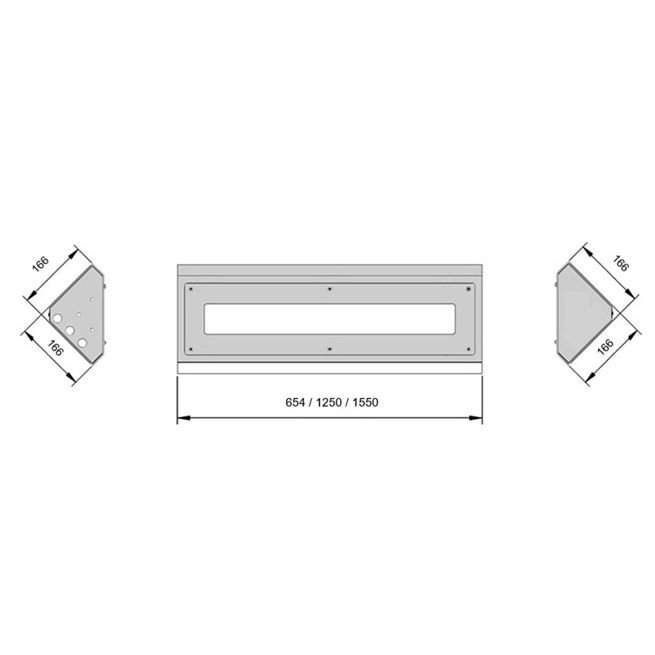

Right Blank End	-RB

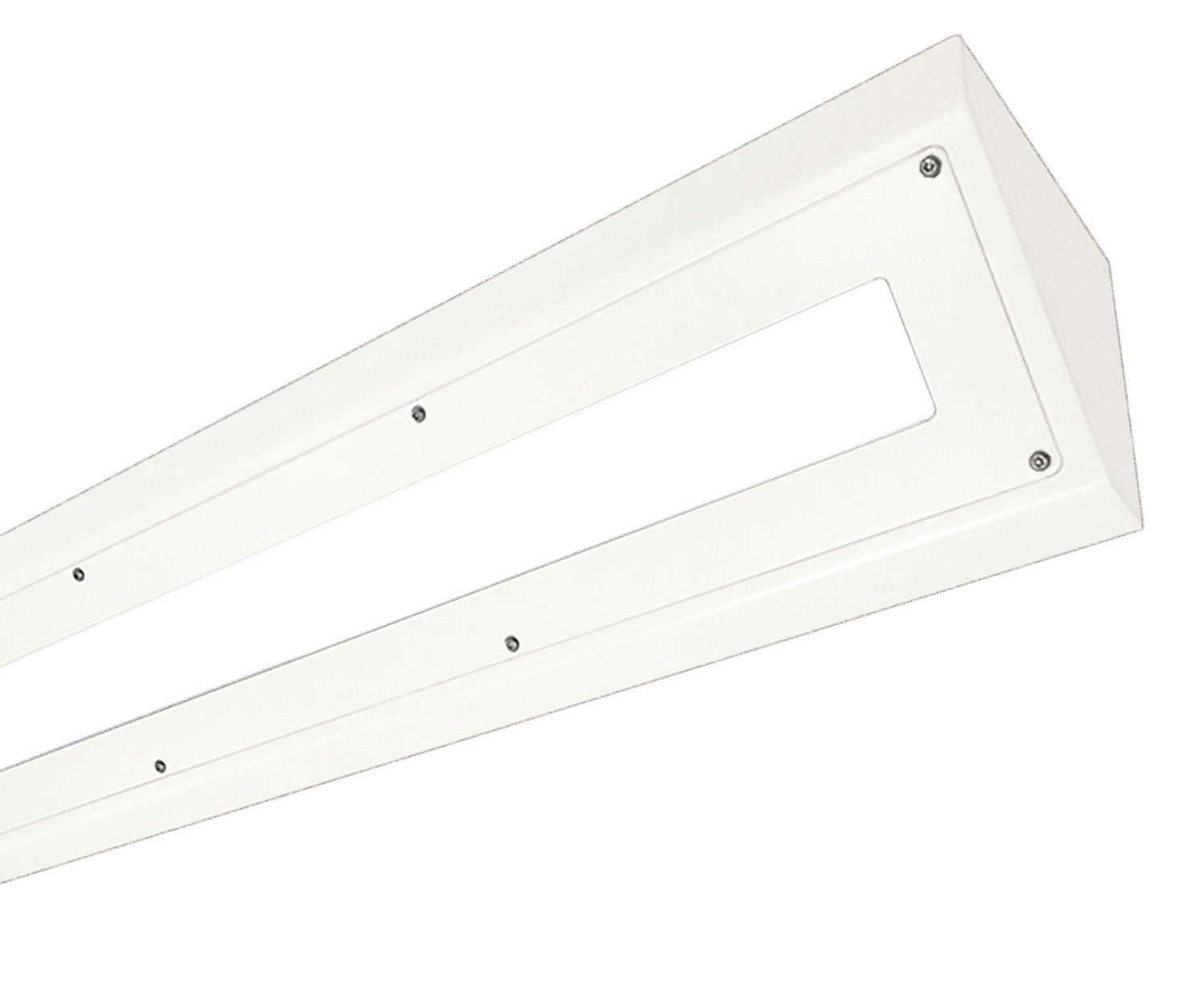

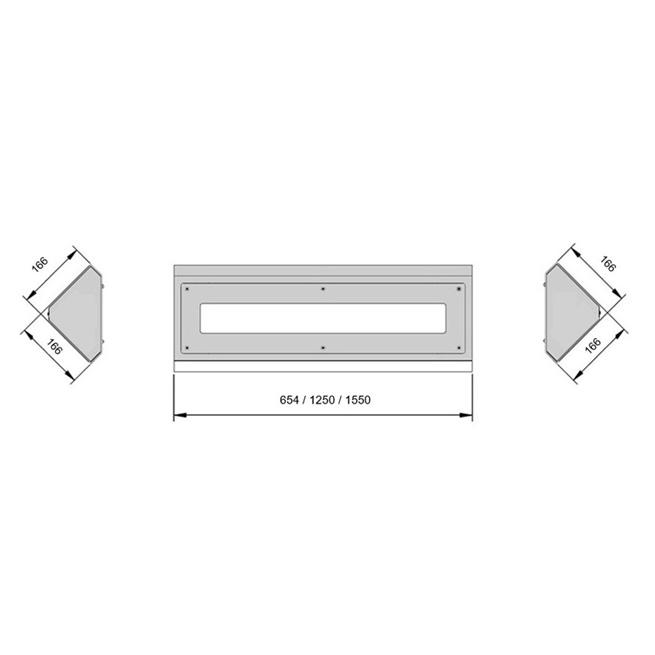

Blank Ends	-BE

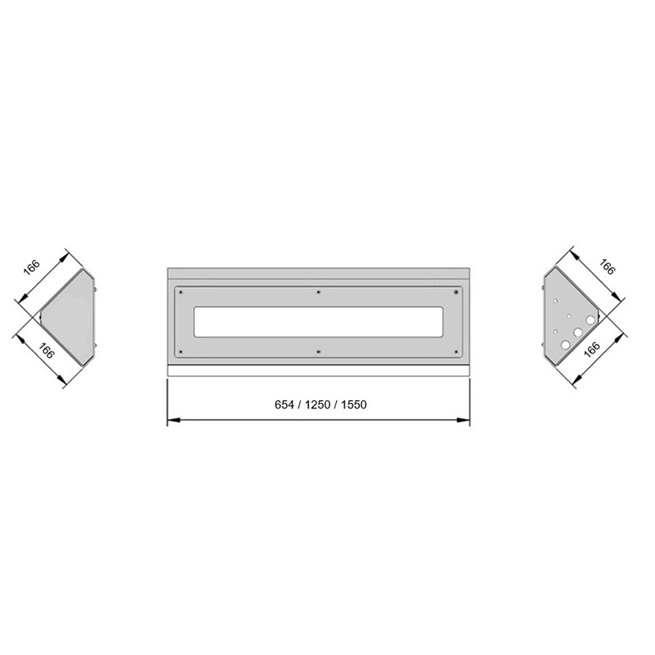

Left Blank End	-LB
DALI-2 Dimming / Monitoring	-DA
DALI with **% Pre-set	-D
Maintained Emergency 3 Hour, Self Test	-ES
Change Over Relay, 240V Relay Supplied	-ER
Central Battery Maintained 110V	-EV
Maintained Emergency 3 Hour, DALI	-ED
Maintained Emergency 3 Hour	-E3
Textured White	-TW

• High output for visually impaired use, inspections and deep cleaning.

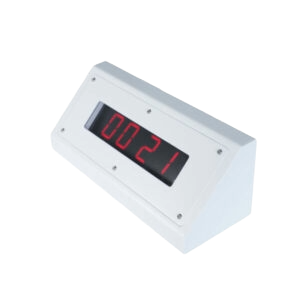

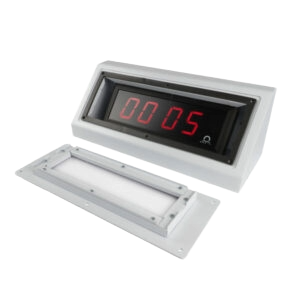

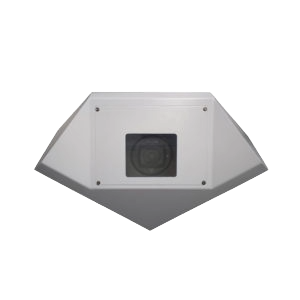

• For Obex clock unit with window for digital clocks, please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• -ER cannot be combined with -M1.
