Monitor is a vandal resistant luminaire designed specifically for challenging environments, such as custodial and secure healthcare facilities, transport applications and community and public installations.

Standard Colours

Monitor Horizontal Adaptor Plate ADH Drawing

Product Information

Monitor’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution. Incorporating a removable gear tray ensures Monitor is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Community and Public applications include the interior communal spaces of buildings. Secure Health applications include exercise and activity areas. Custodial applications include activity rooms. Transport applications include public toilets.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK16 (150J). Learn More.

Ingress Protection Rating: IP65. Learn More.

Housing: Extruded aluminium body (70% recycled content), with die cast end caps (93% recycled content) secured with tamperproof screws.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Clip-in opal polycarbonate diffuser.

Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Ceiling mounting or horizontal mounting on a solid substrate. Separate adapter plate attachments are available for suspended or horizontal wall mounting on structures where the back of the body is exposed so as to retain the IP65 rating.

Cable Entry: Provision for conduit entry in back or one end.

Design Life: 30+ years. Learn More.

Technical Information

Monitor	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
L360mm
D855-1-1000N-X-TB	1081	9.9	109	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	2
	LED Energy Rating	Dimensions
	C	115mm x 88mm
D855-1-1000W-X-TB	1027	9.9	104	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	2
	LED Energy Rating	Dimensions
	D	115mm x 88mm
L640mm
D855-2-1500N-X-TB	1654	15.5	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	3
	LED Energy Rating	Dimensions
	C	115mm x 88mm
D855-2-2000N-X-TB	2023	19.1	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	3
	LED Energy Rating	Dimensions
	C	115mm x 88mm
D855-2-2500N-X-TB	2412	23.1	105	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	3
	LED Energy Rating	Dimensions
	C	115mm x 88mm
D855-2-1500W-X-TB	1571	15.5	101	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	3
	LED Energy Rating	Dimensions
	D	115mm x 88mm
D855-2-2000W-X-TB	1922	19.1	101	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	3
	LED Energy Rating	Dimensions
	D	115mm x 88mm
D855-2-2500W-X-TB	2291	23.1	99	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	3
	LED Energy Rating	Dimensions
	D	115mm x 88mm
L1240mm
D855-4-2000N-X-TB	2527	21.2	119	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>110,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	816	5	C	115mm x 88mm
D855-4-3000N-X-TB	3325	28.3	117	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>110,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	816	5	C	115mm x 88mm
D855-4-4000N-X-TB	4068	35.6	114	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	40	L₇₀B₁₀>110,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	816	5	C	115mm x 88mm
D855-4-5000N-X-TB	4817	43.3	111	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	40	L₇₀B₁₀>110,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	816	5	C	115mm x 88mm
D855-4-6000N-X-TB	5450	50.6	108	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	40	L₇₀B₁₀>110,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	816	5	C	115mm x 88mm
D855-4-2000W-X-TB	2401	21.2	112	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>100,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	775	5	D	115mm x 88mm
D855-4-3000W-X-TB	3159	28.3	109	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>100,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	775	5	D	115mm x 88mm
D855-4-4000W-X-TB	3865	35.6	106	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	40	L₇₀B₁₀>100,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	775	5	D	115mm x 88mm
D855-4-5000W-X-TB	4576	43.3	102	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	40	L₇₀B₁₀>100,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	775	5	D	115mm x 88mm
D855-4-6000W-X-TB	5178	50.6	108	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	40	L₇₀B₁₀>100,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	775	5	D	115mm x 88mm
L1540mm
D855-5-2500N-X-TB	3235	26.3	123	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	840
	Weight (kg)	LED Energy Rating	Dimensions
	6	C	115mm x 88mm
D855-5-3750N-X-TB	4203	34.8	121	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	840
	Weight (kg)	LED Energy Rating	Dimensions
	6	C	115mm x 88mm
D855-5-5000N-X-TB	5059	42.9	118	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	840
	Weight (kg)	LED Energy Rating	Dimensions
	6	C	115mm x 88mm
D855-5-6250N-X-TB	6108	53.6	114	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	840
	Weight (kg)	LED Energy Rating	Dimensions
	6	C	115mm x 88mm
D855-5-7500N-X-TB	6815	61.2	111	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	840
	Weight (kg)	LED Energy Rating	Dimensions
	6	C	115mm x 88mm
D855-5-2500W-X-TB	3073	26.3	117	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	798
	Weight (kg)	LED Energy Rating	Dimensions
	6	D	115mm x 88mm
D855-5-3750W-X-TB	3993	34.8	115	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	798
	Weight (kg)	LED Energy Rating	Dimensions
	6	D	115mm x 88mm
D855-5-5000W-X-TB	4806	42.9	112	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	798
	Weight (kg)	LED Energy Rating	Dimensions
	6	D	115mm x 88mm
D855-5-6250W-X-TB	5803	53.6	108	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	798
	Weight (kg)	LED Energy Rating	Dimensions
	6	D	115mm x 88mm
D855-5-7500W-X-TB	6474	61.2	106	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	798
	Weight (kg)	LED Energy Rating	Dimensions
	6	D	115mm x 88mm

Fitting Options

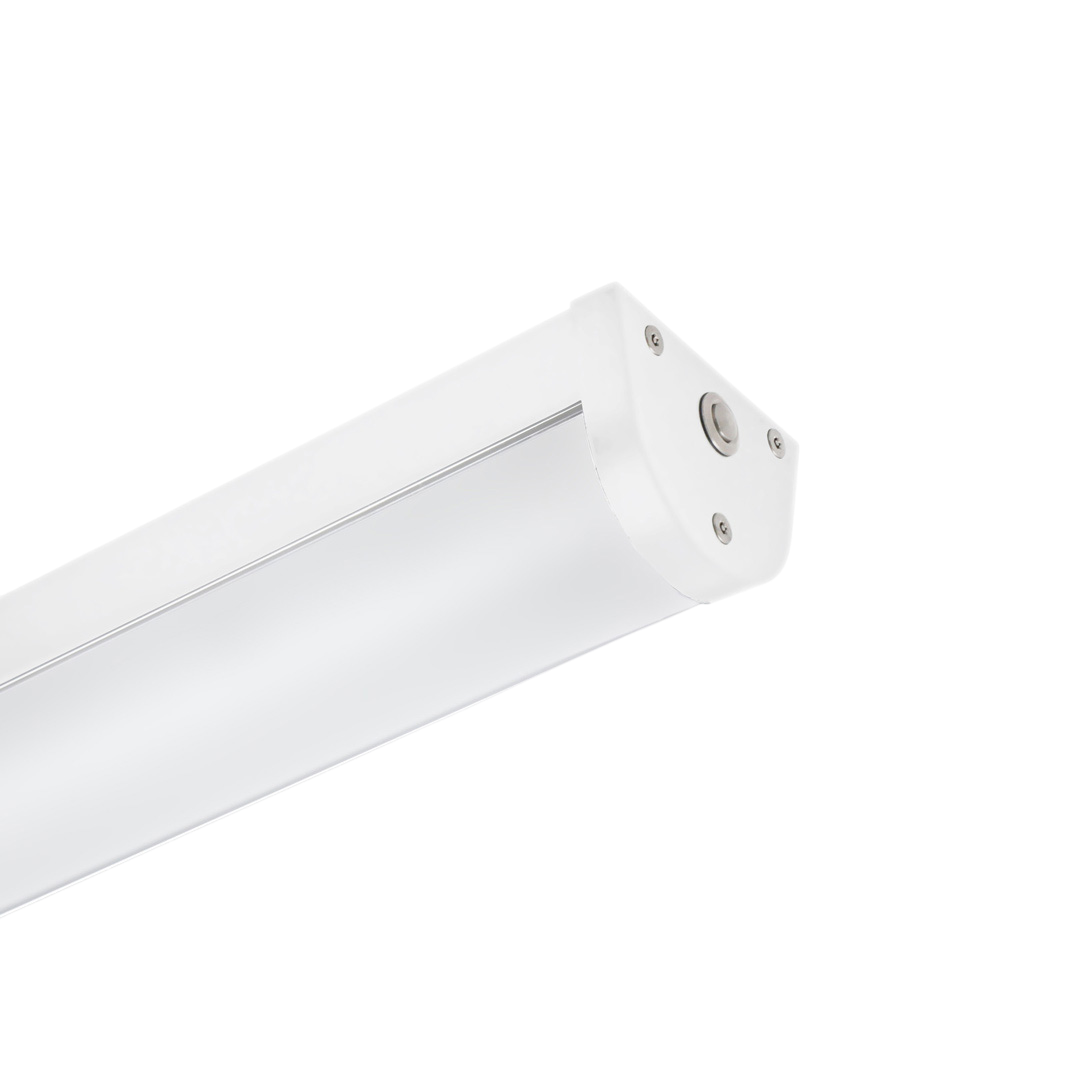

Switch on Fitting	-SX
Horizontal Adaptor Plate	-AH
Conduit Hole in One End	-1H
Side Adaptor Plate	-AS
Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Central Battery Maintained 110V	-EV
Change Over Relay, 240V Relay Supplied	-ER
Maintained Emergency 3 Hour, Self Test	-ES
Maintained Emergency 3 Hour, DALI	-ED
Textured White	-TW
Textured Black	-TB
Matt Silver	-MS

• For paint colour options, please replace -TB with required paint code.
• HT Applies for standard version. For any options (e.g.-E3) please check with technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• -DA / -DI not available on 360mm version.
• -E3 / -ES / -ED / -ER not available on all 360mm and 640mm versions.
