    CMS/Trunking/Dummy Bodies
    Surface
    HT45°C
    Transport

    Mission CMS is a cable management system specifically designed for transport environments.

    Standard Colours

    Pure White
    Matt Silver
    Mission CMS Cable Management System

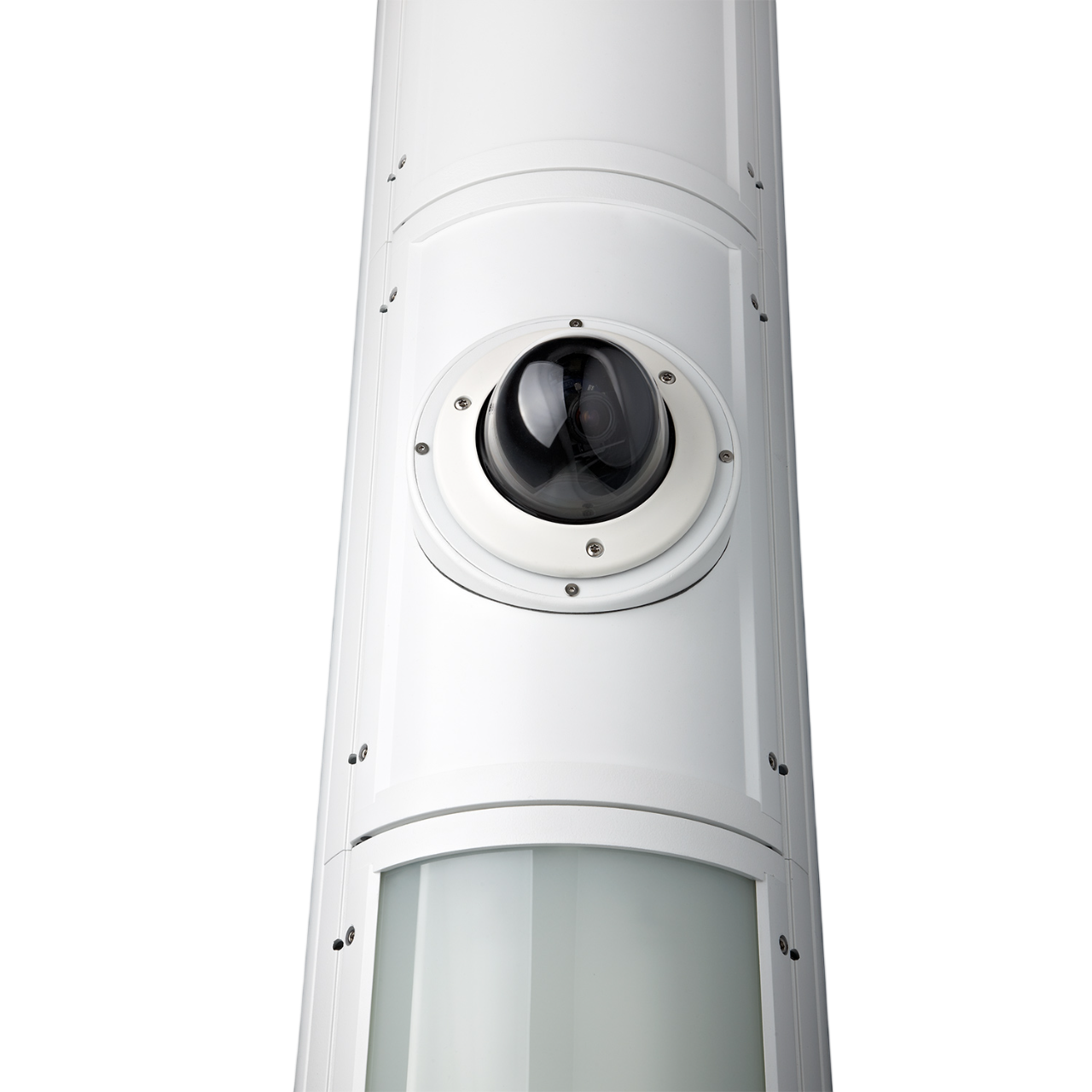

    Mission CMS Camera

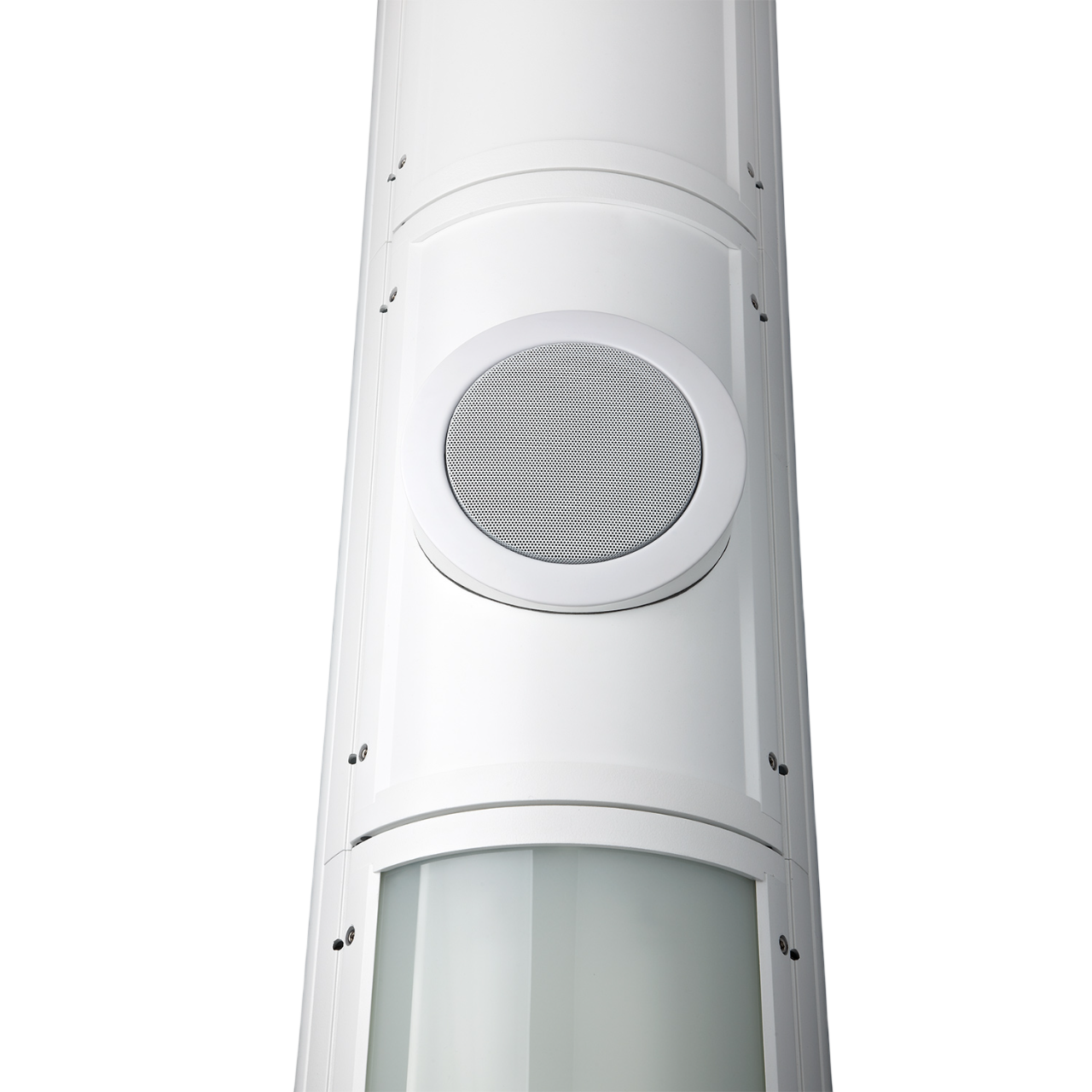

    Mission CMS Speaker
    Mission CMS Drawing

    Product Information

    Mission CMS, utilising our Mission luminaire, provides versatile mounting options including suspended or surface mounting. Other Mission CMS options include speakers, dummy bodies, infill panels, cameras, sensors, PA and CCTV.
    Each application is unique and will be catered to your requirements. As a guide, the weight for 1 metre of Mission CMS is 18.5 kg (indication only).
    Applications include covered platforms and underpasses.

    Product Specification

    TRUNKING



    Impact Resistance Rating: N/A

    Ingress Protection Rating: N/A
    Housing: Extruded aluminium body
    Paint: Polyester powder coat. All colours available, CLICK HERE.
    Diffuser: N/A
    Driver: N/A
    Mounting: Ceiling or cornice mounting.
    Cable Entry: N/A
    LUMINAIRE
    Impact Resistance Rating: IK16 (150J). More information, CLICK HERE

    Ingress Protection Rating: IP65. More information, CLICK HERE



    Housing: Extruded aluminium body with die cast aluminium end caps.



    Paint: Polyester powder coat. All colours available, CLICK HERE



    Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.



    Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.



    Mounting: Ceiling or cornice mounting.



    Cable Entry: Via Mission CMS

    Fitting Options

    Pure White -PW
    Matt Silver -MS

    Downloads

    Product Datasheet

    Spec Assist
