Linilux Angled

Linilux Angled

IP54

IK12 (62.5J)

Linear

Class I

Surface

TM65/66

Community and Public

Custodial

Secure Healthcare

Transport

Linilux Angled is a vandal resistant luminaire specifically designed for challenging environments, such as custodial and secure healthcare facilities, transport applications and community and public installations.

Standard Colours

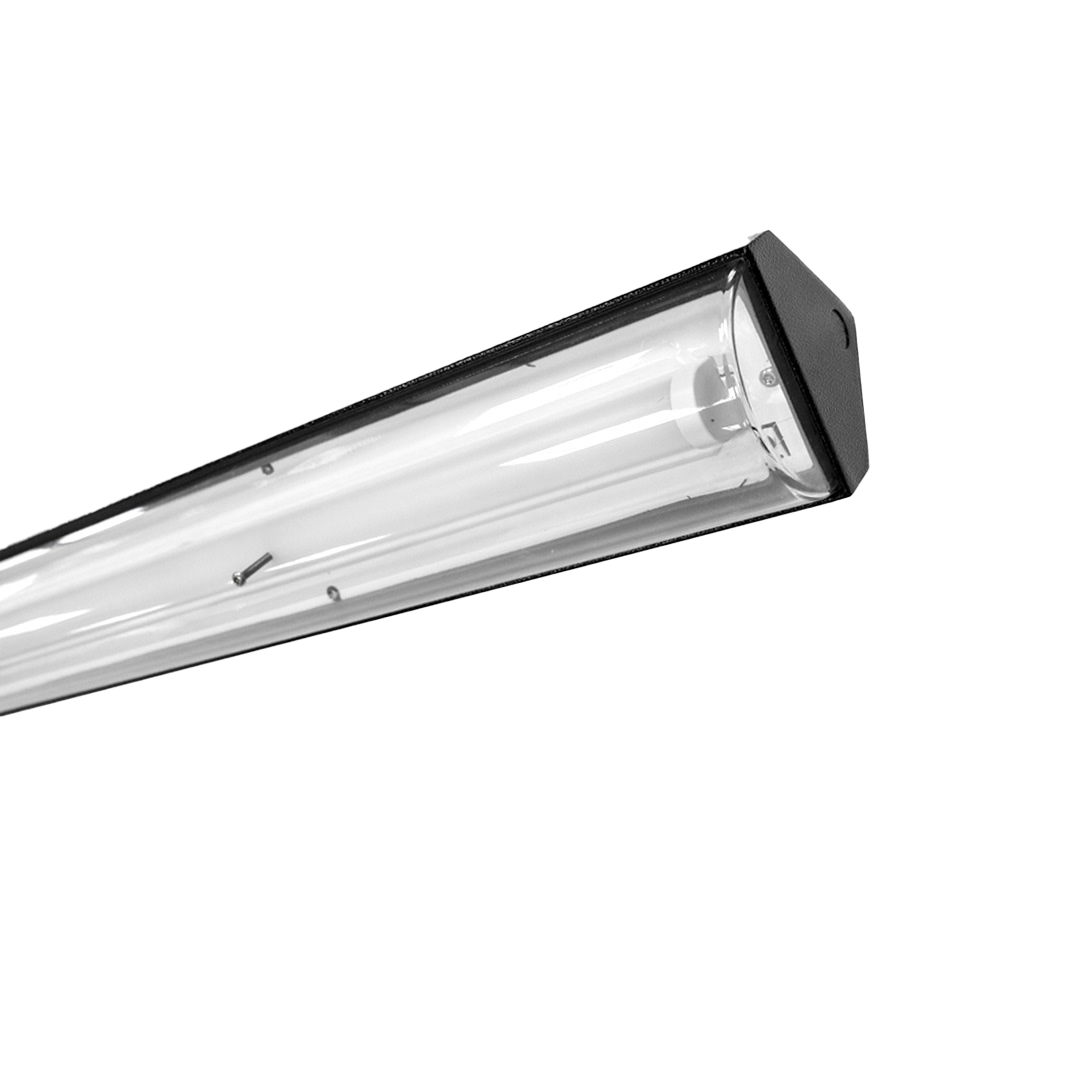

Linilux Angled Vandal Resistant Luminaire

Product Information

Linilux Angled directs light where it’s needed, reducing wasted illumination and minimising glare. Incorporating a removable gear tray ensures Linilix Angled is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Custodial applications include association areas, education facilities, ancillary areas, police stations and law courts. Transport applications include office and back of house. Secure Health applications include corridors and circulation spaces.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK12 (62.5J). Learn More.

Ingress Protection Rating: IP54. Learn More.

Housing: Zinc coated steel body

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Clear polycarbonate diffuser secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Wall or cornice mounting.

Cable Entry: Provision for conduit entry in back and ends.

Design Life: 30+ years. Learn More.

Technical Information

Linilux Angled	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)

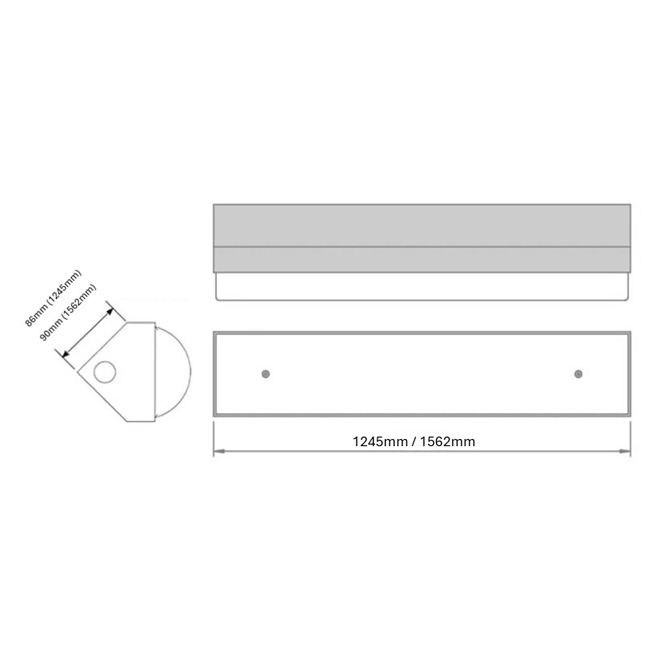

1245mm x 86mm 86mm
LLXA-G1-4-1700N-TB	1779	16.7	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	685
	Weight (kg)	LED Energy Rating
	5.6	C
LLXA-G1-4-2300N-TB	2352	21.3	110	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	685
	Weight (kg)	LED Energy Rating
	5.6	C
LLXA-G1-4-2800N-TB	2876	26	110	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	685
	Weight (kg)	LED Energy Rating
	5.6	C
LLXA-G1-4-3500N-TB	3508	30.9	113	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	685
	Weight (kg)	LED Energy Rating
	5.6	C
LLXA-G1-4-1700W-TB	1771	15.7	112	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	618
	Weight (kg)	LED Energy Rating
	5.6	C
LLXA-G1-4-2300W-TB	2331	20.2	115	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	618
	Weight (kg)	LED Energy Rating
	5.6	C
LLXA-G1-4-2800W-TB	2850	24.8	115	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	618
	Weight (kg)	LED Energy Rating
	5.6	C
LLXA-G1-4-3400W-TB	3413	29.9	114	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	618
	Weight (kg)	LED Energy Rating
	5.6	C
1562mm x 90mm x 90mm
LLXA-G1-5-2700N-TB	2798	20.1	139	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	732
	Weight (kg)	LED Energy Rating
	7	C
LLXA-G1-5-3600N-TB	3688	25.9	142	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	732
	Weight (kg)	LED Energy Rating
	7	C
LLXA-G1-5-4500N-TB	4548	31.5	144	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	732
	Weight (kg)	LED Energy Rating
	7	C
LLXA-G1-5-5300N-TB	5365	38	141	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	732
	Weight (kg)	LED Energy Rating
	7	C
LLXA-G1-5-2600W-TB	2655	18.7	142	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	645
	Weight (kg)	LED Energy Rating
	7	C
LLXA-G1-5-3500W-TB	3502	24.4	143	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	645
	Weight (kg)	LED Energy Rating
	7	C
LLXA-G1-5-4300W-TB	4362	30.2	145	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	645
	Weight (kg)	LED Energy Rating
	7	C
LLXA-G1-5-5100W-TB	5177	36.7	141	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	645
	Weight (kg)	LED Energy Rating
	7	C

Fitting Options

Coastal Paint Finish (Zone 2)	-Z2
DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Central Battery Maintained 110V	-EV
Change Over Relay, 240V Relay Supplied	-ER
Maintained Emergency 3 Hour, Self Test	-ES
Textured White	-TW
Textured Black	-TB
Matt Titanium	-MT
