Flair Mini

IP65

IK09 (10J)

Linear

Class III

Recessed

Surface

Transport

Flair Mini is an S12 luminaire designed in accordance with fire precautions for subsurface rail stations (Section 12).

Product Information

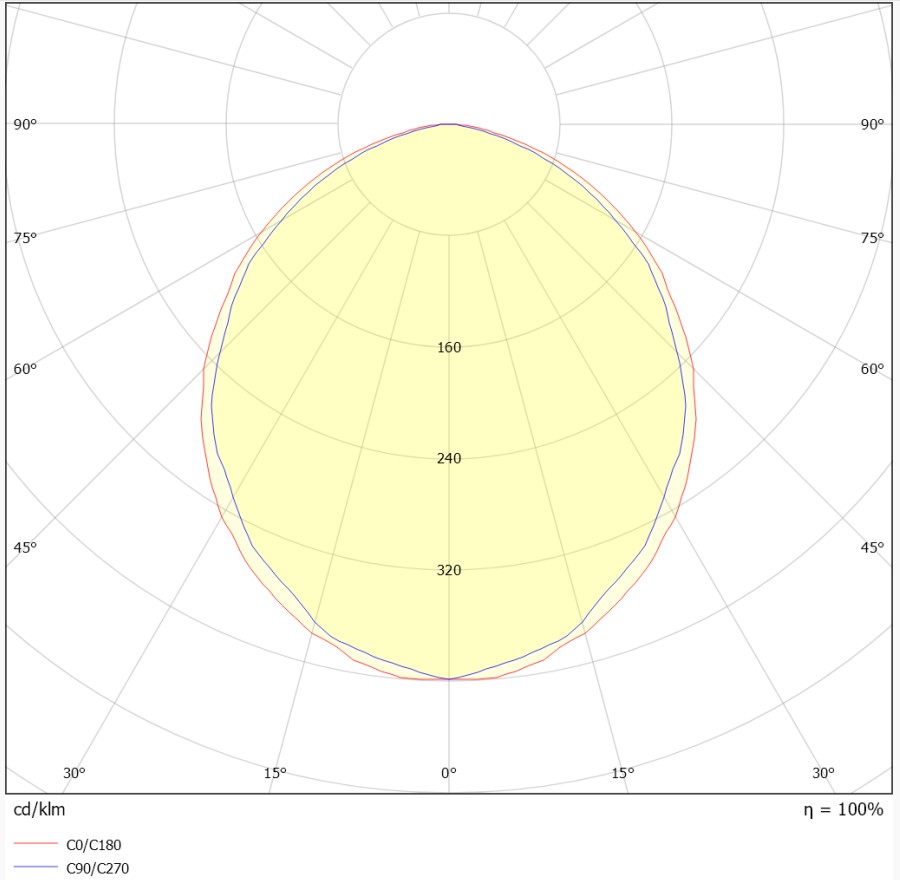

Flair Mini’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution.

Flair Mini complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.

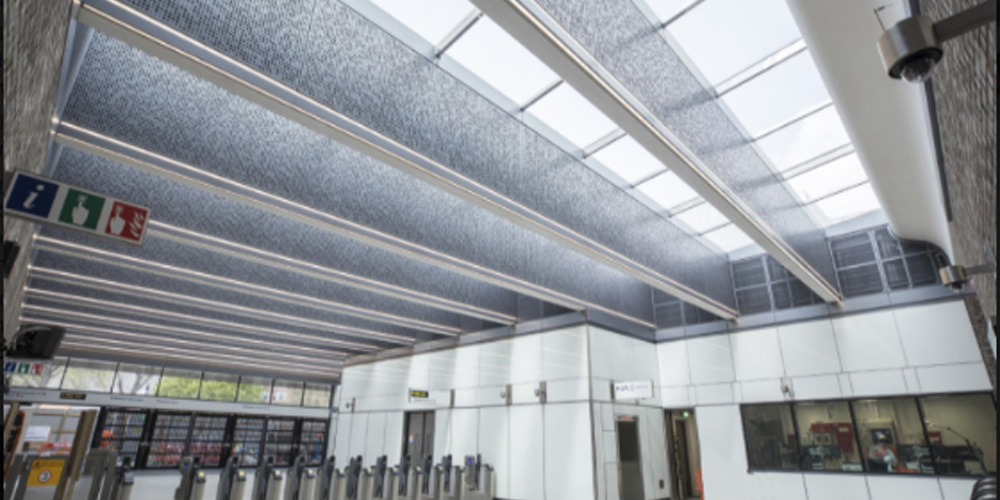

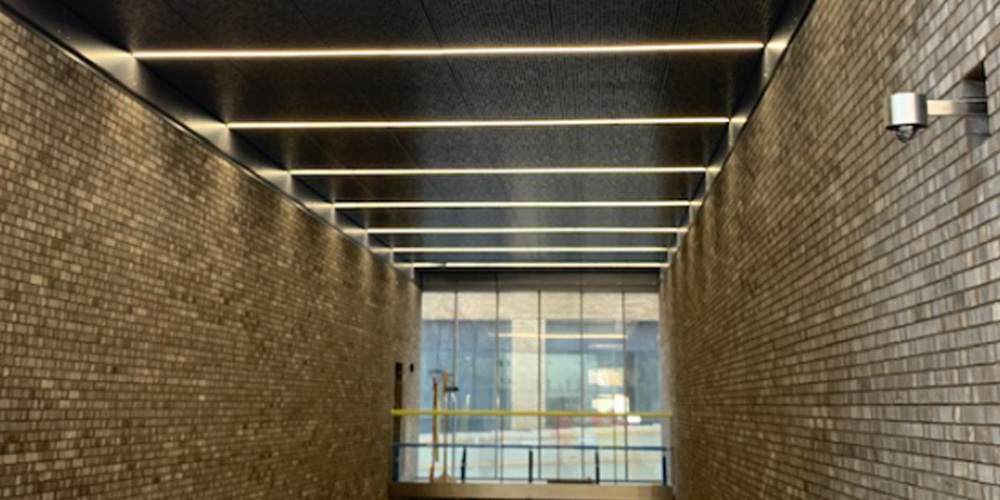

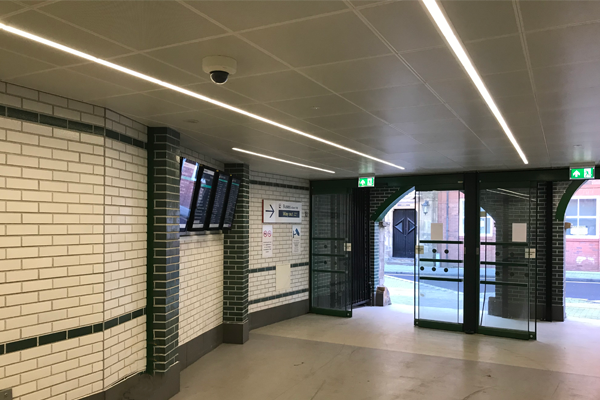

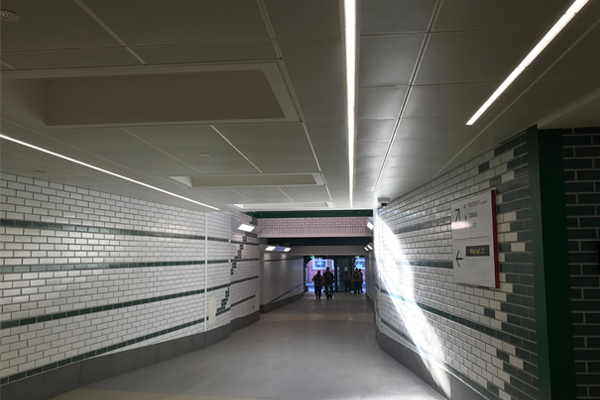

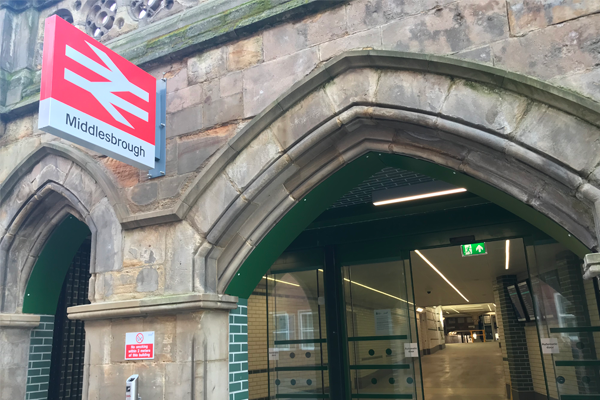

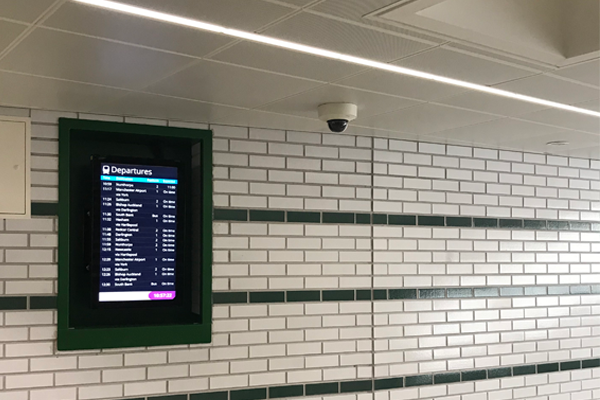

Applications include ticket areas, station forecourts, general circulation areas, covered platforms and subways.

Product Specification

Impact Resistance Rating: IK09 (10J). More information, CLICK HERE.

Ingress Protection Rating: IP65. More information, CLICK HERE.

Housing: Extruded aluminium body with aluminium end caps secured with tamperproof screws.

Paint: N/A. Clear anodised finish.

Diffuser: Toughened opal glass diffuser.

Driver: Remote 24V DC power supply required (supplied separately). Up to 11 metre continuous length possible from a single 24V power supply.

Mounting: Ceiling or wall.

Cable Entry: Via plug and socket (Supplied). Provision for mains cable entry in remote power supply.

Technical Information

Flair Mini	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)

FLM-277N	277	6.7	53	4000
	CRI	LED Lifetime	Weight (kg)	LED Energy Rating
	CRI>80	L₇₀B₁₀>50,000h	0.9	G

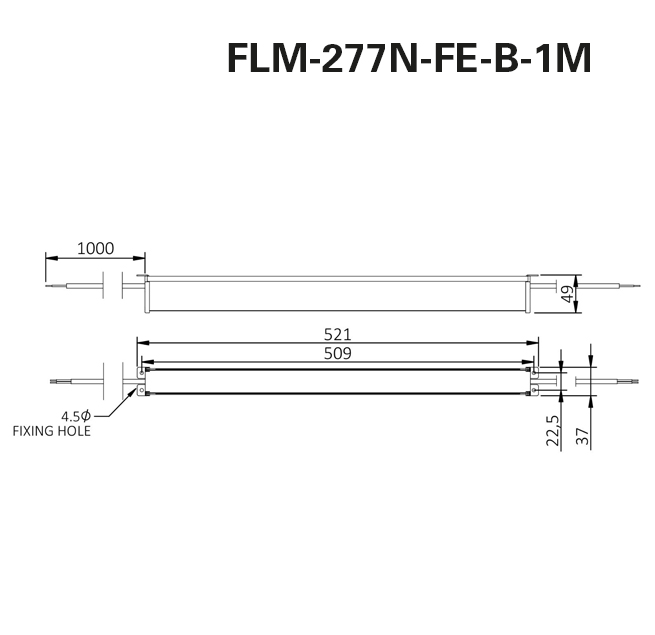

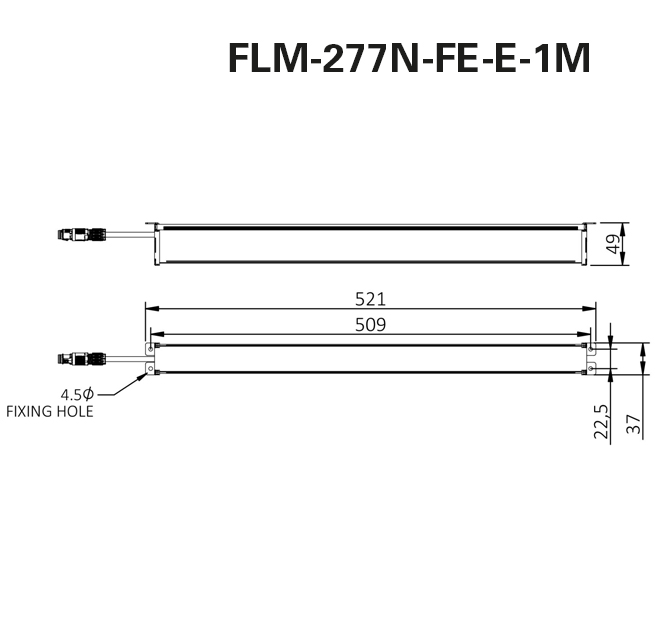

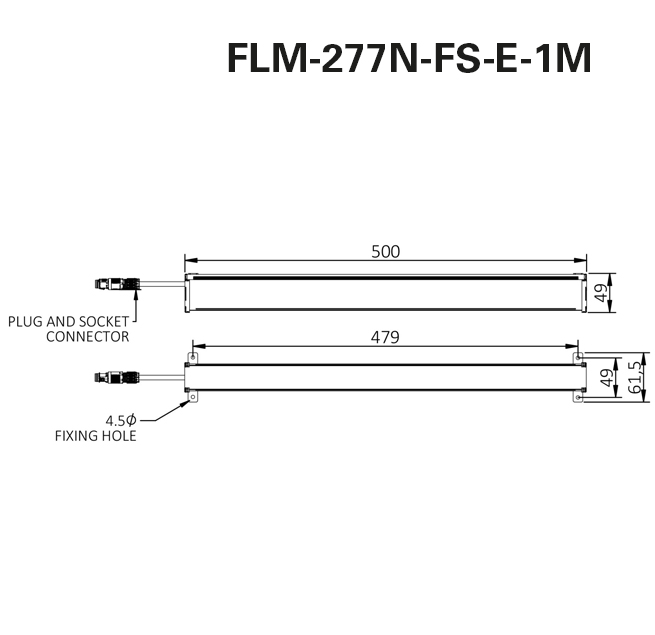

	Dimensions
	500mm x 50mm x 40mm
FLM-516N	516	11.6	52	4000
	CRI	LED Lifetime	Weight (kg)	LED Energy Rating
	CRI>80	L₇₀B₁₀>50,000h	0.9	G
	Dimensions
	500mm x 50mm x 40mm

• Efficacy: Lumens per circuit watt, based on maximum run using 160W 24V power supply.
• For 277 version, max run 11m (22 fittings).
• For 516 version, max run 7m (14 fittings).
IP65 remote box with fused 24V 160W SELV DALI constant voltage power supply. Includes “LED module failure” detection. With 3m cable lead and socket connector. Painted white. Part No FLM-RMB-PT.
Please call technical sales on +44 (0)20 8254 2022 to discuss your requirements.
