Product Information

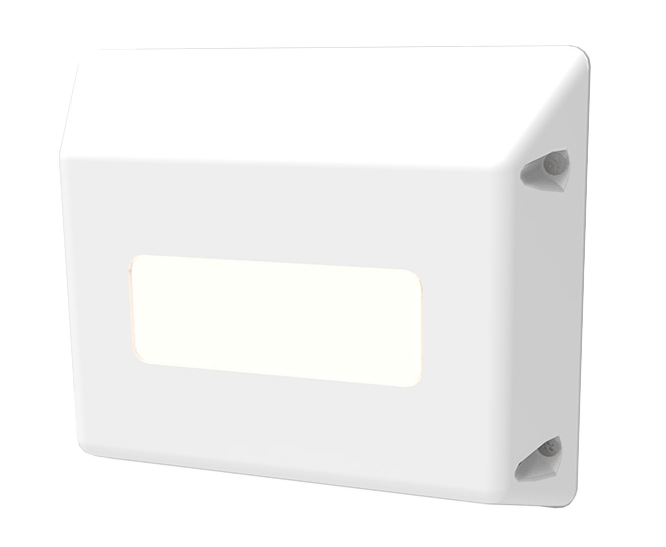

DPW20S’s opal diffuser gives a soft lit appearance for wayfinding at night. It is designed to be mounted at low level, typically 450mm above the floor. It is supplied with first fix plate for simple mounting. The integral microwave sensor is to provide switching via movement detection.
DPW20S is designed to meet the requirements of “Design in Mental Health Network’s (DiMHN) Testing Guidance for Products in Mental Health Facilities” rating LIG5-5/ES2. It minimises the risk of self-harm or injury by preventing the attachment of ligatures, and is designed to be disassembled and reinstated to ensure maintenance can be undertaken quickly and easily after anti-pick mastic application.
Applications include bedrooms and en-suites in secure health environments.
The DPW20S is available with an amber light version, specifically designed for specialist environments where reducing blue light emission is essential.
This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK16 (150J). What is IK Rating?
Ingress Protection Rating: IP65. What is IK Rating?
Housing: Cast aluminium body.
Paint: Polyester powder coat. All Colour Options Available Here.
Diffuser: Flush opal polycarbonate diffuser.
Driver: Integral electronic control gear.
Mounting: Surface, typically 450mm above the floor.
Cable Entry: Provision for cable entry in back.
Design Life: 30+ years. What is Design Life?

Technical Information

DPW20S Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)

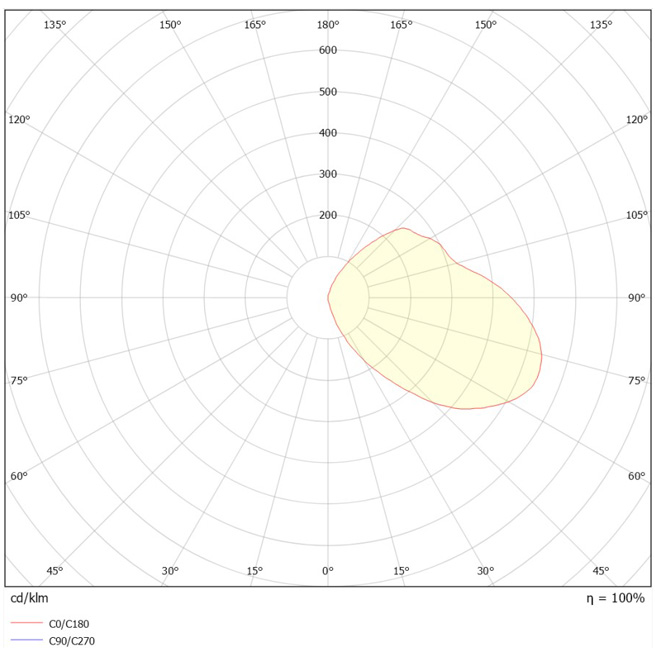

Opal
DW2-80W-MW-M4 84 2.7 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
CRI>80 60,000 L₈₀B₁₀>72,000h 1.1
LED Energy Rating Dimensions

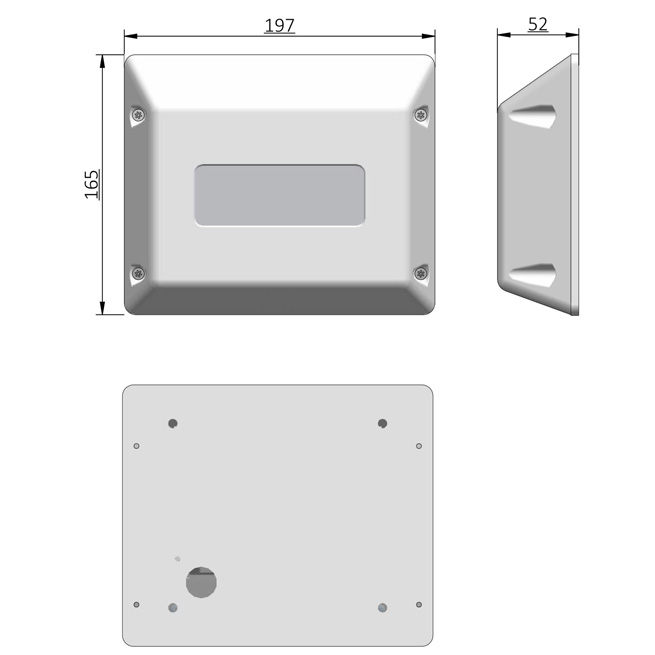

C 197mm x 165mm x 52mm
DW2-80N-MW-M4 88 2.7 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
CRI>80 60,000 L₈₀B₁₀>72,000h 1.1
LED Energy Rating Dimensions
C 197mm x 165mm x 52mm

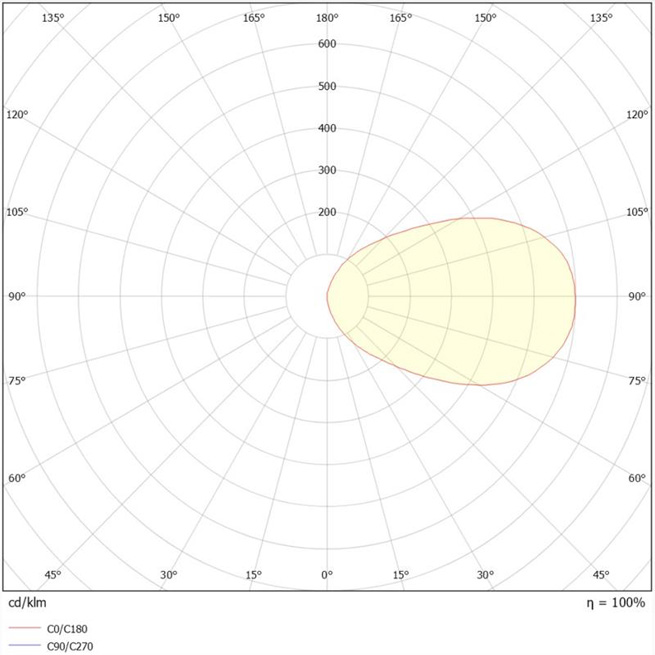

Amber
DW2-60A-MW-M4 62 3.7 1750
Driver Lifetime (up to hours) LED Lifetime Weight (kg) LED Energy Rating
60,000 L₈₀B₁₀>72,000h 1.1 C
Dimensions
197mm x 165mm x 52mm

Fitting Options

Matt White -MW
;
