Product Information

DPR20S’ opal diffuser provides a soft lit appearance, while providing a functional light for tasks. There is reduced glare with downward light direction for reading, using specialist optical films.
DPR20S is designed to meet the requirements of “Design in Mental Health Network’s (DiMHN) Testing Guidance for Products in Mental Health Facilities” rating LIG5-5/ES2. It minimises the risk of self-harm or injury by preventing the attachment of ligatures, and is designed to be disassembled and reinstated to ensure maintenance can be undertaken quickly and easily after anti-pick mastic application.
Applications include bedrooms and en-suites in secure health environments.
This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK16 (150J). Learn More.
Ingress Protection Rating: IP65. Learn More.
Housing: Cast aluminium body.
Paint: Polyester powder coat. All Colour Options Available Here.
Diffuser: Flush opal polycarbonate diffuser.
Driver: Integral electronic control gear and vandal resistant switch.
Mounting: Surface
Cable Entry: Provision for cable entry in back.
Design Life: 30+ years. Learn More.

Technical Information

DPR20S Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
Opal
DR2-80W-MW 84 2.2 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
CRI>80 60,000 L₈₀B₁₀>72,000h 1.1
LED Energy Rating Dimensions

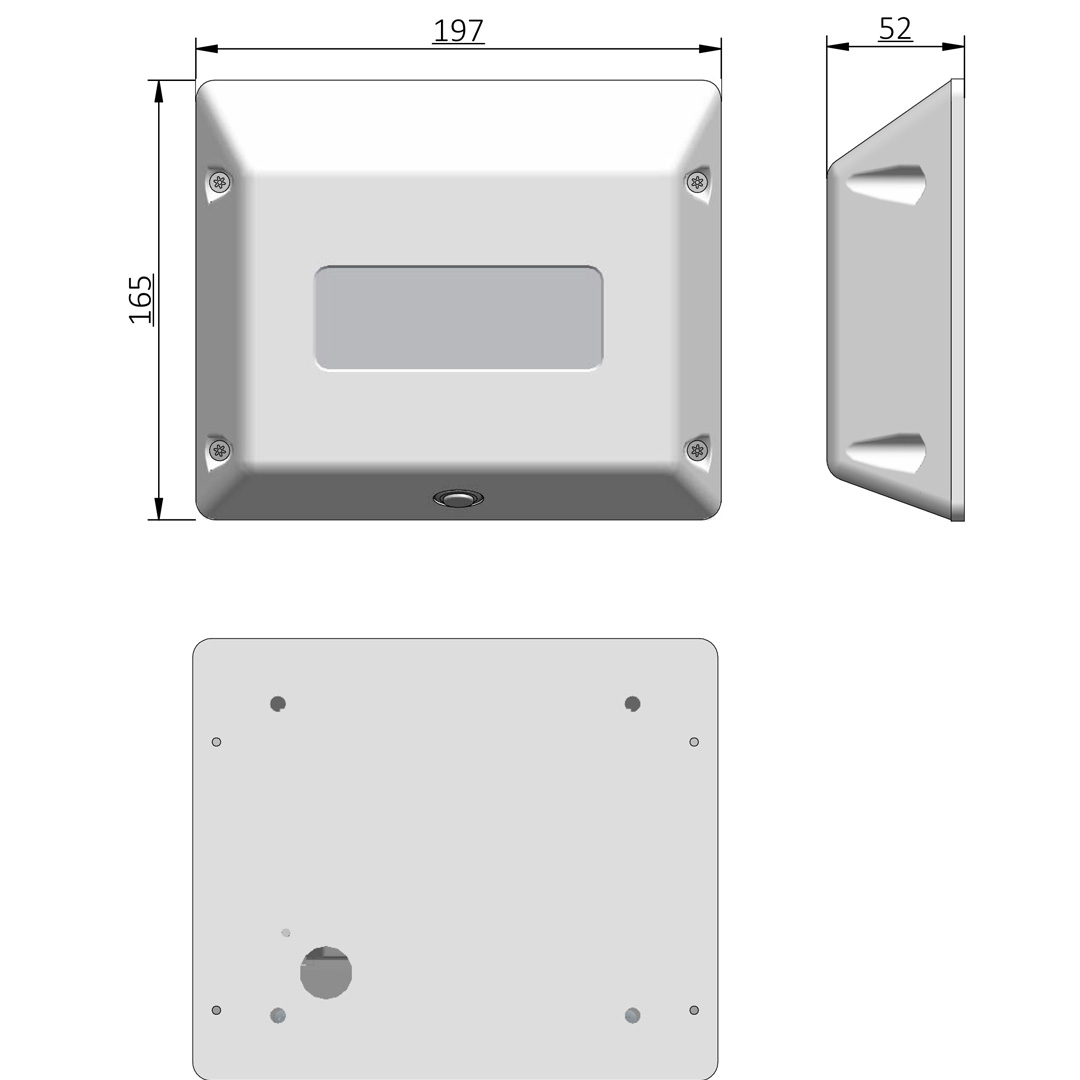

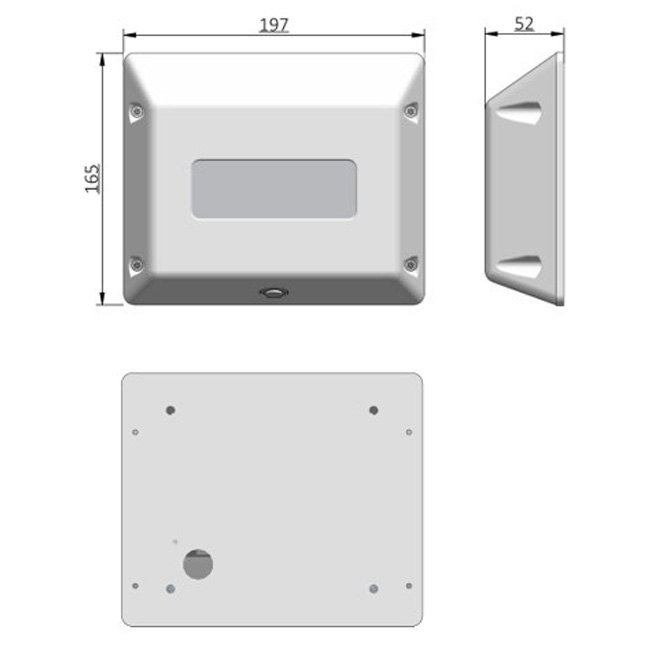

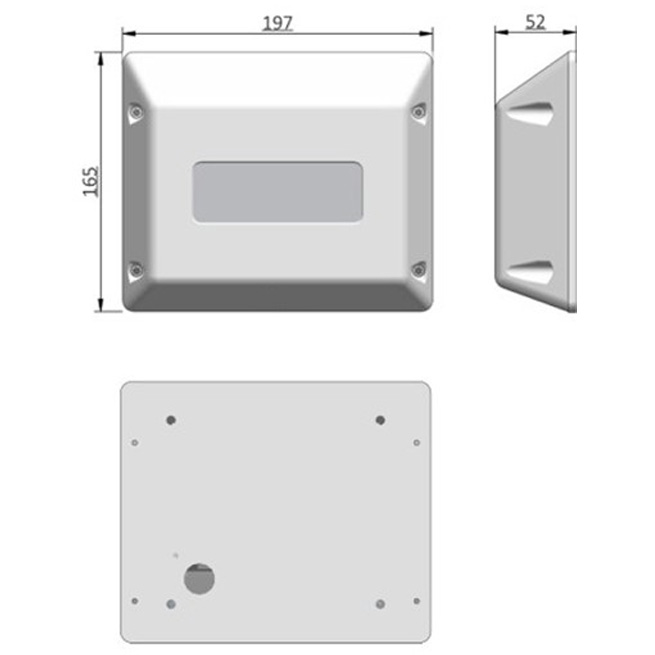

C 197mm x 165mm x 52mm
DR2-80N-MW 88 2.2 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
CRI>80 60,000 L₈₀B₁₀>72,000h 1.1
LED Energy Rating Dimensions
C 197mm x 165mm x 52mm

Fitting Options

Matt White -MW
;
