DPR20

IP65

IK14 (100J)

Bulkhead

Class I

Recessed

Secure Healthcare

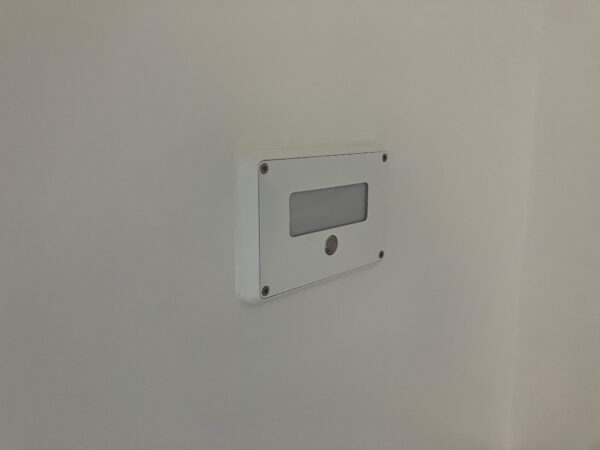

DPR20 is a ligature resistant reading light specifically designed for challenging environments, such as in secure healthcare facilities as a bedhead in the bedrooms.

Standard Colours

Product Information

DPR20’s opal diffuser provides a soft lit appearance, while providing a functional light for tasks.

DPR20 is designed to meet the requirements of “Design in Mental Health Network’s (DiMHN) Testing Guidance for Products in Mental Health Facilities” rating LIG5-5/ES2. It minimises the risk of self-harm or injury by preventing the attachment of ligatures, and is designed to be disassembled and reinstated to ensure maintenance can be undertaken quickly and easily after anti-pick mastic application, with integrated anti-vandal switch.

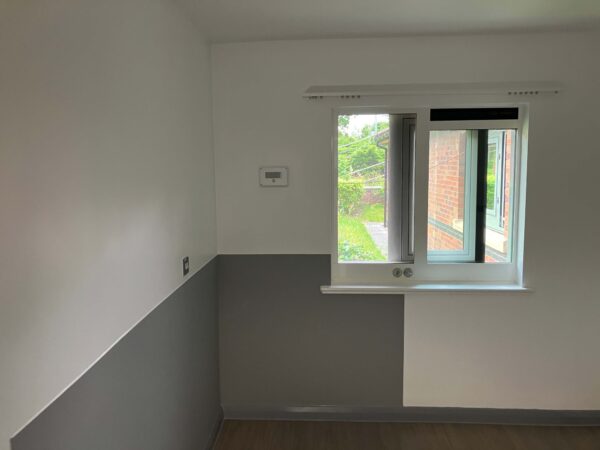

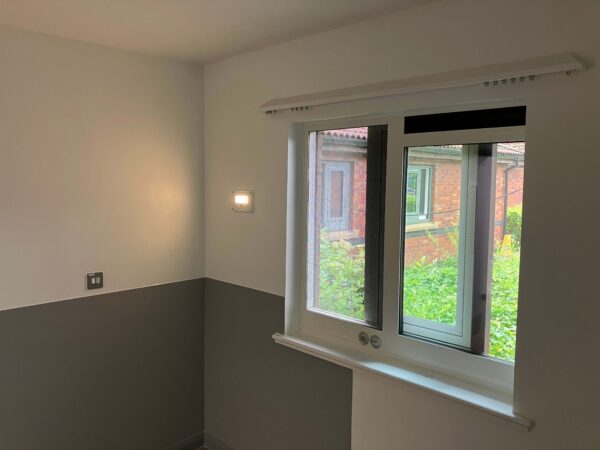

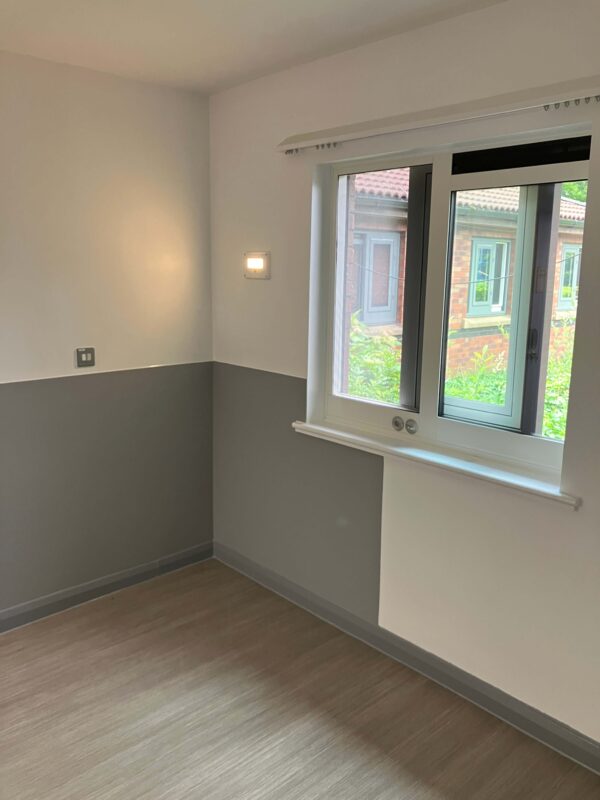

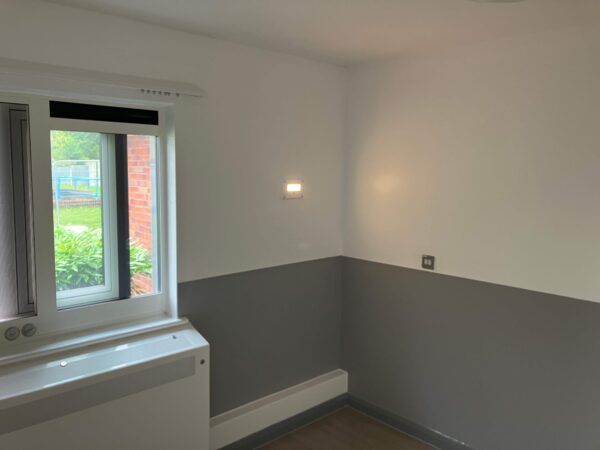

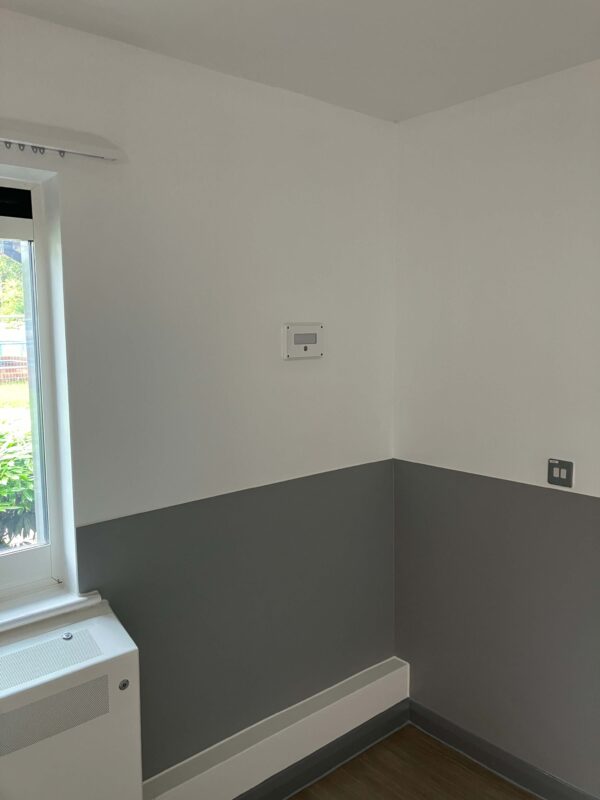

Applications include bedrooms and en-suites in secure health environments.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK14 (100J). Learn More.

Ingress Protection Rating: IP65 (from front only). Learn More.

Housing: Machined aluminium body with zinc coated steel faceplate.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Flush opal polycarbonate diffuser.

Driver: Integral electronic control gear and vandal resistant switch.

Mounting: Designed to fit into a standard 47mm 2-gang recessed backbox.

Cable Entry: Provision for cable entry in back.

Design Life: 30+ years. Learn More.

Technical Information

DPR20	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
Opal
DR2-80W-MW-R	84	2.2		3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	60,000	L₈₀B₁₀>72,000h	1.1
	LED Energy Rating	Dimensions

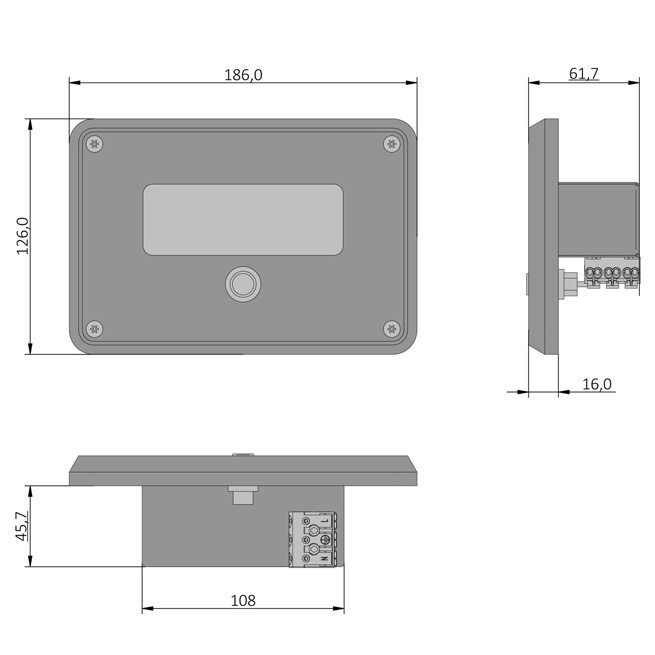

	C	186mm x 126mm x 16mm surface height (total 62mm)
DR2-80N-MW-R	88	2.2		4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	60,000	L₈₀B₁₀>72,000h	1.1
	LED Energy Rating	Dimensions
	C	186mm x 126mm x 16mm surface height (total 62mm)
