DL86 RGBW

DL86 RGBW

IP65

IK11 (50J)

Downlights

Class I

Recessed

Community and Public

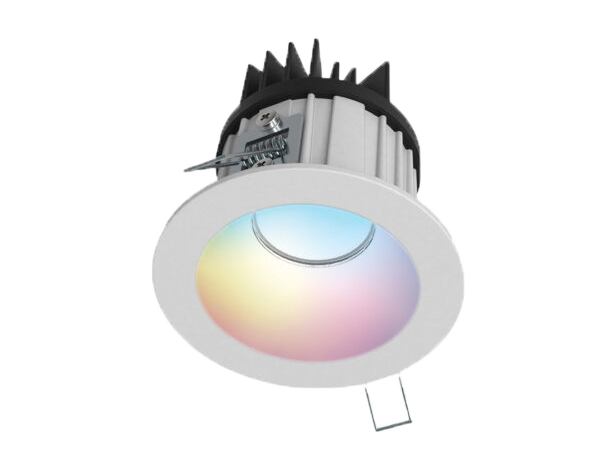

DL86 RGBW is a colour changing downlight specifically designed for community and public environments.

Standard Colours

Product Information

DL86 RGBW allows for customisable coloured lighting effects, including white, to create a dynamic or therapeutic setting. DL86 RGBW’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare to create a comfortable feel.

Incorporating a removable gear tray ensures DL86 RGBW is quick and easy to maintain, whilst enabling sustainable technology upgrades. Applications include the exterior and perimeter of public buildings and housing blocks.

Applications include the exterior and perimeter of public buildings and housing blocks.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK11 (50J). Learn More.

Ingress Protection Rating: IP65 (from below only). Learn More.

Housing: Die-cast aluminium body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Polycarbonate diffuser with opal liner.

Driver: Remote electronic control gear. DALI (Device type 6) drivers as standard. Casambi wireless enabled (User Interface required).

Mounting: Ceiling, recessed.

Cable Entry: Provision for cable entry in remote driver box.

Design Life: 30+ years. Learn More.

Technical Information

DL86 RGBW	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)

DL86-G1-RGBW-MW-DW	165 (white 4000K channel)	6		RGBW
	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)	LED Energy Rating
	50,000	L₇₀B₁₀>100,000h	0.6	E

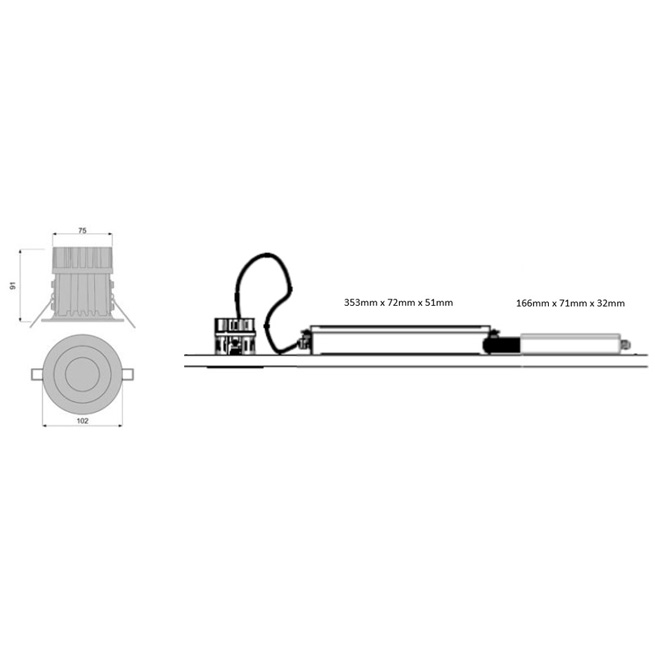

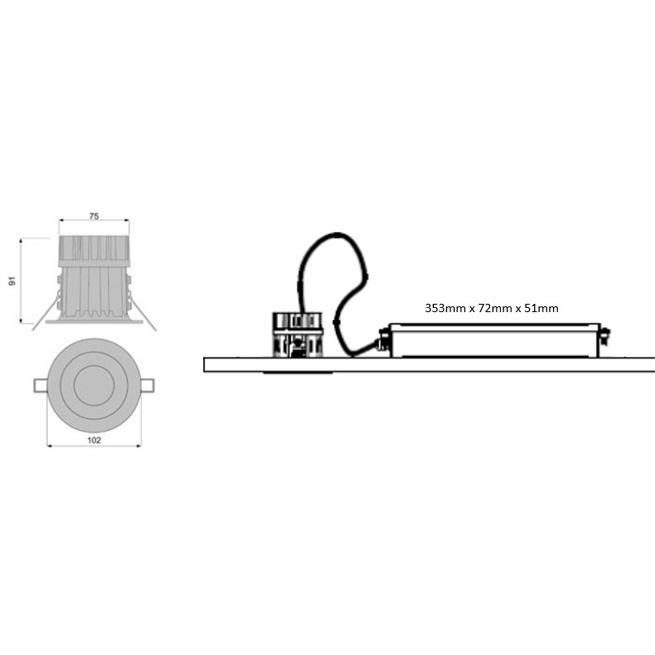

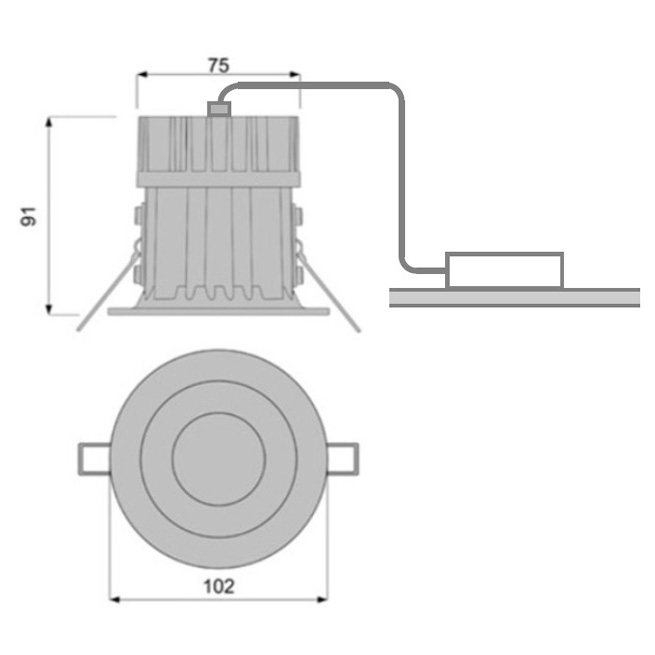

	Dimensions
	Ø102mm, 91mm

Fitting Options

DALI-2 Dimming / Monitoring	-DA
Matt White	-MW
Casambi Node	-DW

• For DALI only version, please replace -DW with -DA. (DALI control system required).
• For Casambi User interface (White), order code CAUI-W.
• For Casambi User interface (Black), order code CAUI-B.
