Brunel

IP54

IK14 (100J)

Bulkhead

Class I

Surface

Community and Public

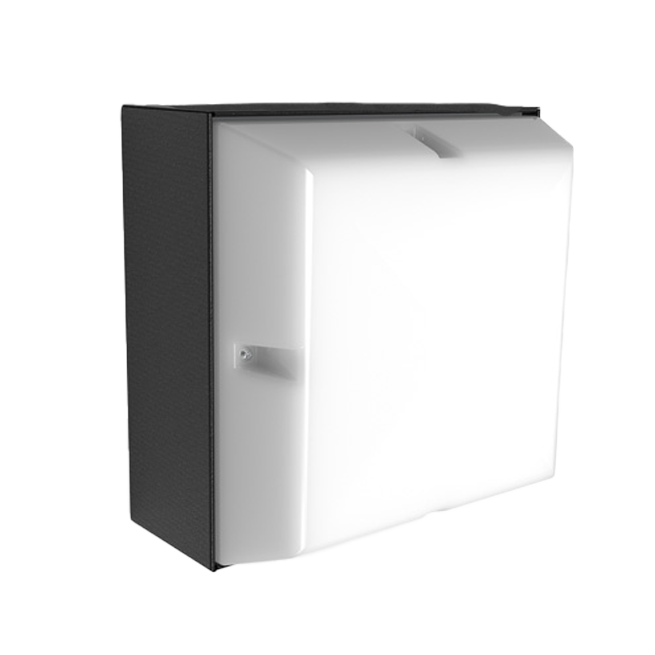

Brunel is a vandal resistant bulkhead specifically designed for community and public environments.

Standard Colours

Product Information

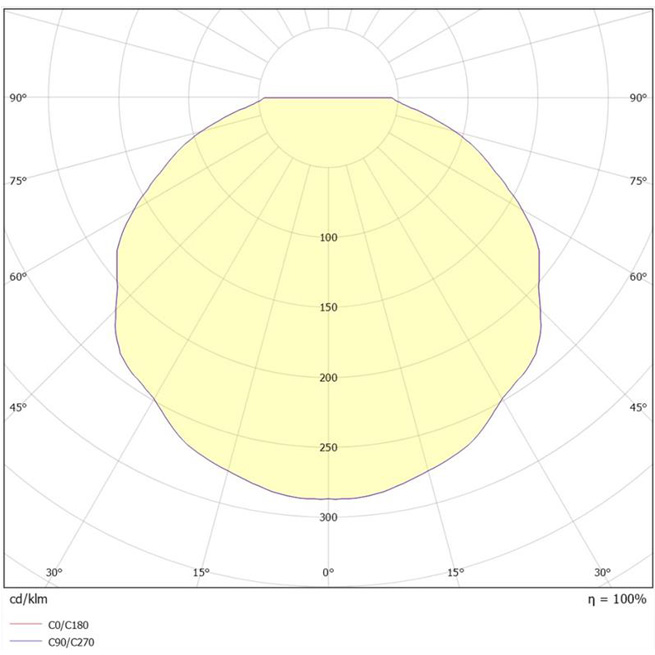

Brunel’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare. Incorporating a removable gear tray ensures Brunel is quick and easy to maintain, whilst enabling sustainable technology upgrades.

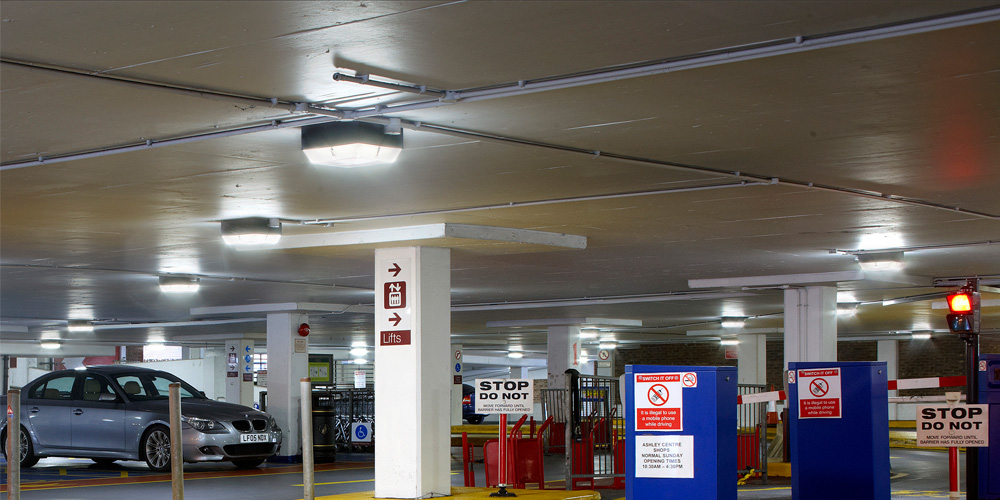

The Brunel luminaire is ideal for car parks, internal communal areas, and building perimeters delivering reliable performance with its high impact and ingress protection ratings.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK14 (100J). Learn More.

Ingress Protection Rating: IP54. Learn More.

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Opal polycarbonate diffuser, secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Wall or ceiling.

Cable Entry: Provision for conduit entry in back.

Design Life: 30+ years. Learn More.

Technical Information

Brunel	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
Opal
D207-3000N-X-TB	2828	26.6	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	489
	Weight (kg)	LED Energy Rating	Dimensions

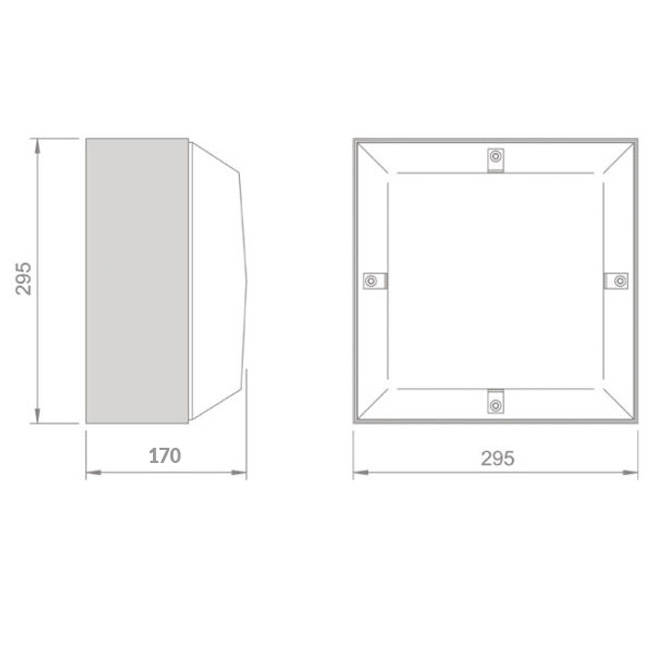

	3.5	D	295mm x 295mm x 165mm
D207-4000N-X-TB	3718	35.7	104	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	489
	Weight (kg)	LED Energy Rating	Dimensions
	3.5	D	295mm x 295mm x 165mm
D207-5000N-X-TB	4534	45.4	100	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	489
	Weight (kg)	LED Energy Rating	Dimensions
	3.5	D	295mm x 295mm x 165mm

Fitting Options

Coastal Paint Finish (Zone 2)	-Z2
Photo Electronic Cell	-PC
Microwave Sensor - Basic	-M1

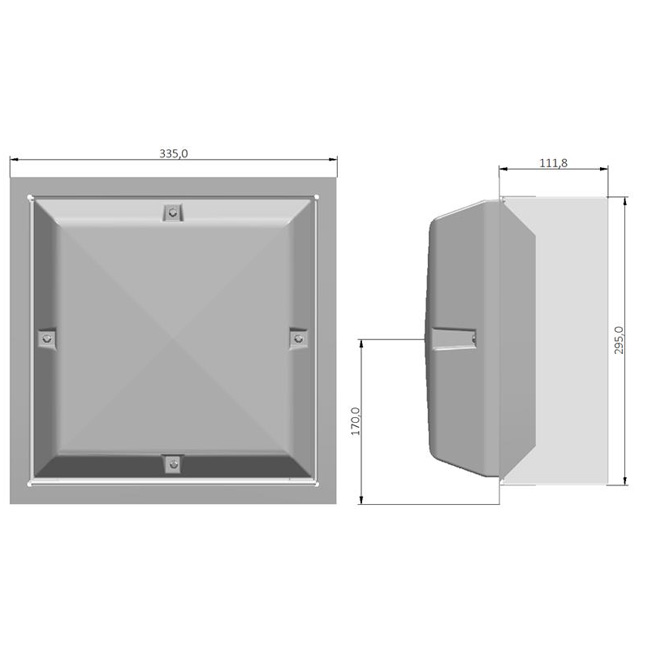

Semi-Recessed	-SR

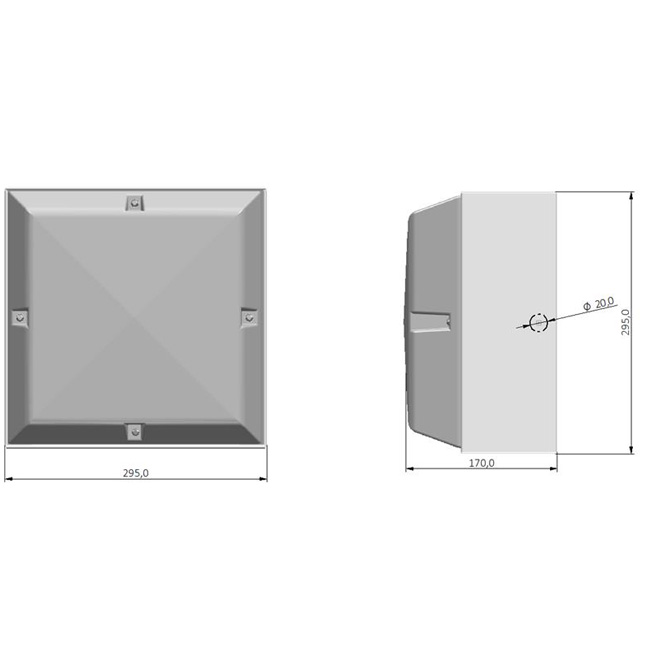

Conduit Hole in One End	-1H
Conduit Hole in Both Ends	-2H
Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Central Battery Maintained 110V	-EV
Change Over Relay, 240V Relay Supplied	-ER
Maintained Emergency 3 Hour, Self Test	-ES
Maintained Emergency 3 Hour, DALI	-ED
Textured White	-TW
Textured Black	-TB
Corridor Function	-CF

• For paint colour options, please replace -TB with required paint code.
• -CF will only work if combined with -M1 or an external presence detection sensor supplied by others.
• -DA / -DI and -M1 options can’t be combined.
• -E3 / -ES / -ED options not available on 5000lm output.
• For -M2 Microwave Sensor - Advanced, please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• -ER cannot be combined with -M1.
