Aztec G2

Aztec G2

IP65

IK16 (150J)

Bulkhead

Class I

Surface

Community and Public

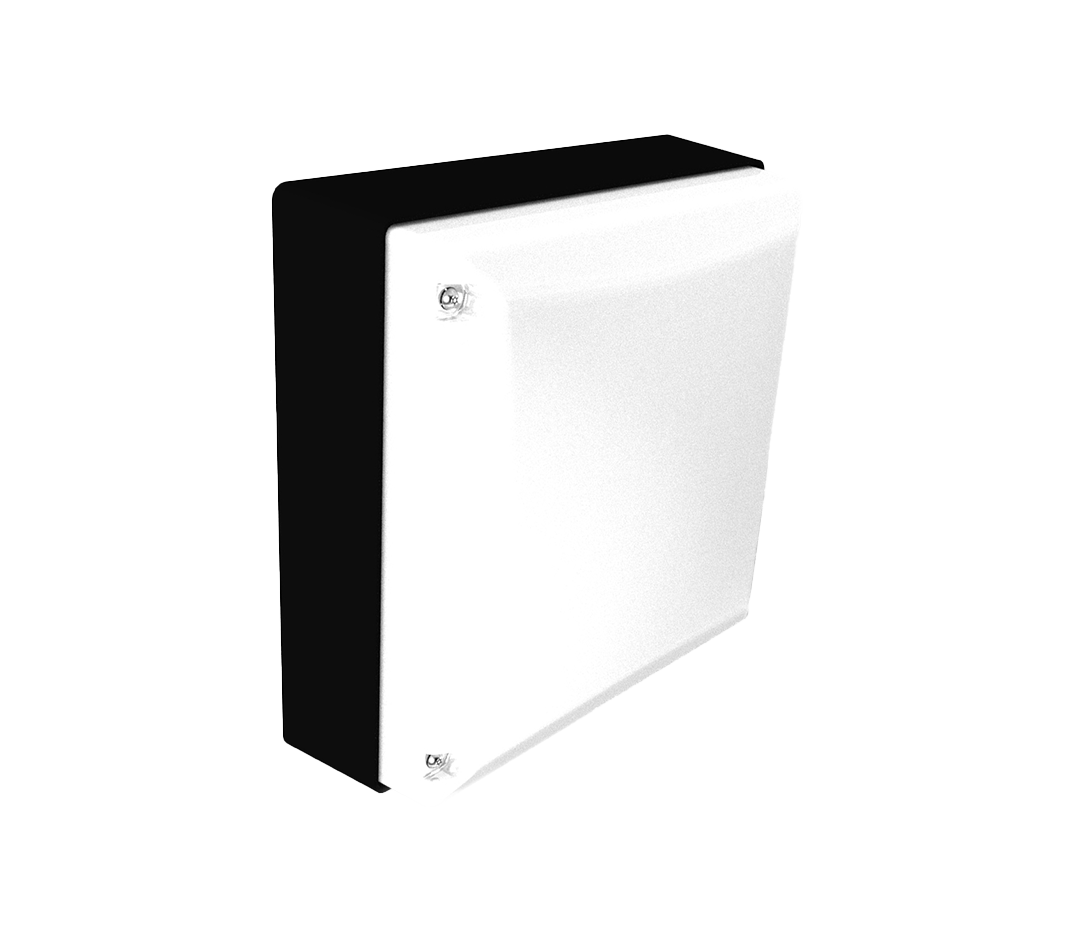

Aztec G2 is a vandal resistant bulkhead designed for community and public environments.

Standard Colours

Product Information

Aztec G2’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare. Incorporating a removable gear tray ensures Aztec G2 is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Applications include car parks, perimeter of buildings and communal areas.

Product Specification

Impact Resistance Rating: IK16 (150J). More information, CLICK HERE.

Ingress Protection Rating: IP65. More information, CLICK HERE.

Housing: Die cast aluminium body.

Paint: Polyester powder coat. All colours available, CLICK HERE.

Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.

Driver: Electronic control gear on a removable tray with fused plug & socket connector block.

Mounting: Wall or ceiling.

Cable Entry: Provision for conduit entry in the back.

Technical Information

Aztec G2	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
Opal
ATC-G2-3000N-X-MB	3055	28.9	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	539
	Weight (kg)	LED Energy Rating	Dimensions
	4.5	D	304mm x 304mm x 127mm
ATC-G2-4000N-X-MB	4174	39.4	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	539
	Weight (kg)	LED Energy Rating	Dimensions
	4.5	D	304mm x 304mm x 127mm
ATC-G2-4500N-X-MB	4597	44.8	103	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	539
	Weight (kg)	LED Energy Rating	Dimensions
	4.5	D	304mm x 304mm x 127mm

Fitting Options

Photo Electronic Cell	-PC
Microwave Sensor - Basic	-M1
Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Central Battery Maintained 110V	-EV
Change Over Relay, 240V Relay Supplied	-ER
Maintained Emergency 3 Hour, Self Test	-ES
Maintained Emergency 3 Hour, DALI	-ED
Matt Black	-MB
Corridor Function	-CF

• -DA/-DI and -M1 options can’t be combined.
• -CF will only work if combined with -M1 or an external presence detection sensor supplied by others.
• For -M2 Microwave Sensor - Advanced, please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
