Arculus Surface

Arculus Surface

IP65

IK16 (150J)

Modular

Class I

Custodial

Secure Healthcare

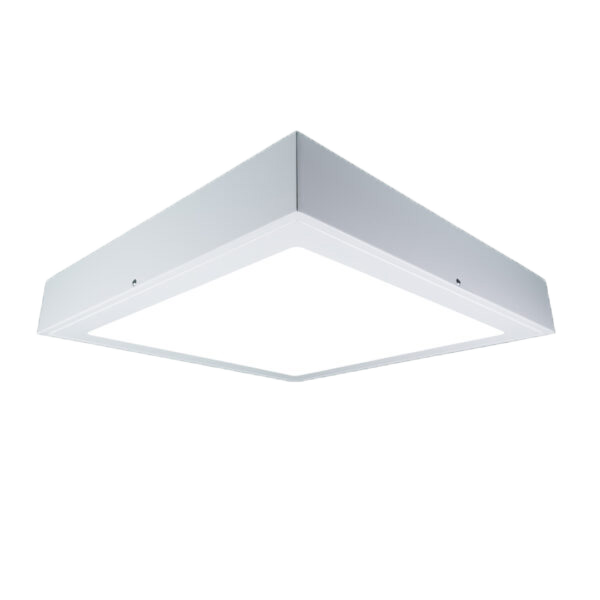

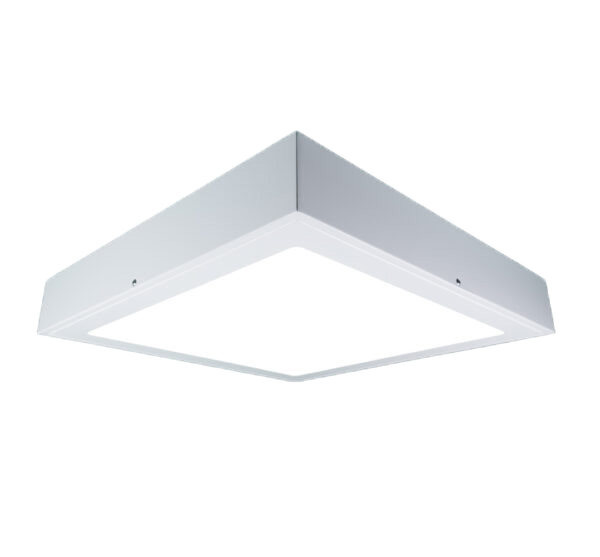

Arculus Surface is a ligature resistant luminaire designed for challenging environments including custodial and secure healthcare.

Standard Colours

Arculus Surface Ligature Resistant Luminaire

Product Information

Arculus Surface’s opal diffuser provides a soft lit appearance, while providing a functional light for tasks. The discreet side mounted fixing ensures a clean, unobtrusive aesthetic.

Arculus Surface is designed to meet the requirements of “Design in Mental Health Network’s (DiMHN) Testing Guidance for Products in Mental Health Facilities” rating LIG5-5, with a ligature resistant design to help prevent self-harming. It is designed to be disassembled and reinstated to ensure maintenance can be undertaken quickly and easily after anti-pick mastic application.

Secure health applications include corridors and circulation spaces, therapy rooms, communal and exercise areas. Custodial applications include video conferencing, ancillary areas and educational environments.

Product Specification

Impact Resistance Rating: IK16 (150J). More information, CLICK HERE.

Ingress Protection Rating: IP65. More information, CLICK HERE.

Housing: Mild steel body, zinc coated steel frame.

Paint: Polyester powder coat. All colours available, CLICK HERE.

Diffuser: Flush opal polycarbonate diffuser in frame with side mounted tamperproof fixings.

Driver: Electronic control gear on a removable tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Ceiling.

Cable Entry: Supplied with flying lead in the back.

Technical Information

Arculus Surface	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
Opal
ARC-2000N-MW	2189	17.5	125	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>90	100,000	L₈₀B₁₀>72,000h	557
	Weight (kg)	LED Energy Rating	Dimensions

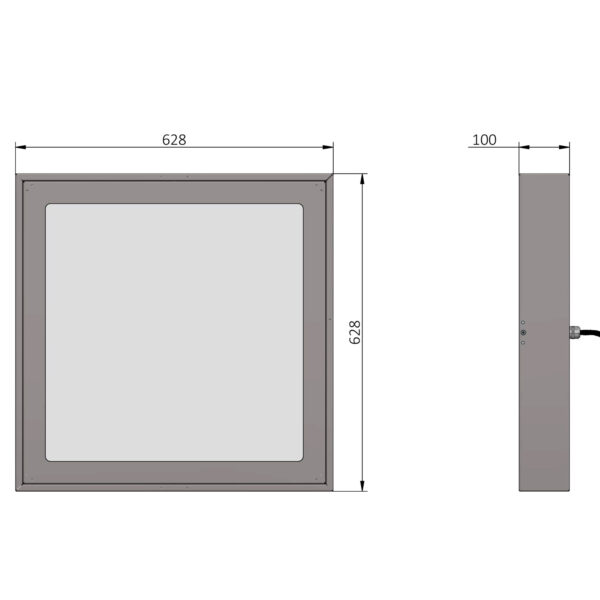

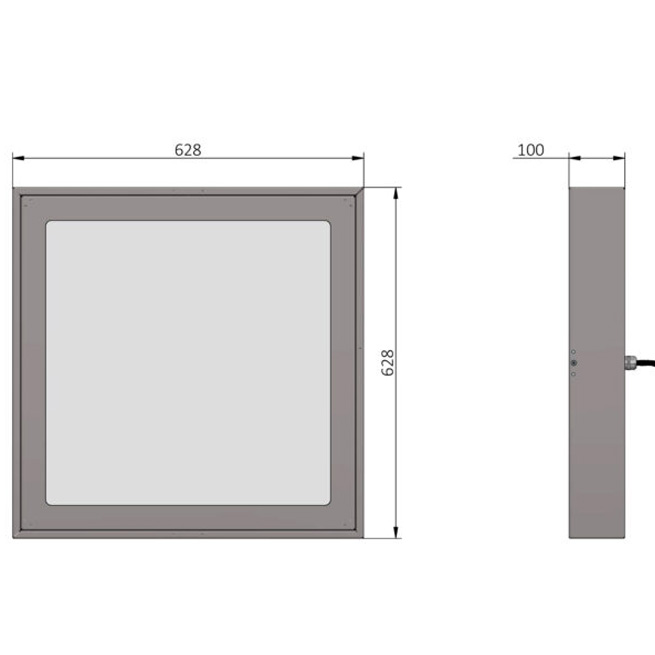

	14.4	C	628mm x 628mm x 100mm
ARC-3000N-MW	3190	24.8	129	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>90	100,000	L₈₀B₁₀>72,000h	557
	Weight (kg)	LED Energy Rating	Dimensions
	14.4	C	628mm x 628mm x 100mm
ARC-4000N-MW	4373	34.2	128	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>90	100,000	L₈₀B₁₀>72,000h	557
	Weight (kg)	LED Energy Rating	Dimensions
	14.4	C	628mm x 628mm x 100mm
ARC-2000W-MW	2137	17.6	121	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>90	100,000	L₈₀B₁₀>72,000h	536
	Weight (kg)	LED Energy Rating	Dimensions
	14.4	D	628mm x 628mm x 100mm
ARC-3000W-MW	3075	24.9	123	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>90	100,000	L₈₀B₁₀>72,000h	536
	Weight (kg)	LED Energy Rating	Dimensions
	14.4	D	628mm x 628mm x 100mm
ARC-4000W-MW	4238	34.4	123	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>90	100,000	L₈₀B₁₀>72,000h	536
	Weight (kg)	LED Energy Rating	Dimensions
	14.4	D	628mm x 628mm x 100mm

Fitting Options

DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Maintained Emergency 3 Hour, Self Test	-ES
Maintained Emergency 3 Hour, DALI	-ED
Matt White	-MW
Matt Titanium	-MT
