Product Information

Altilum incorporates specialist reflectors to efficiently direct light where it is required, whilst concealing the light source to minimise glare. Fitted with a housing deliberately designed to deter birds, Altilum also contributes towards providing a cleaner and safer environment for those working in the space.

Rail applications include highbay illumination in rail maintenance sheds.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK10 (20J).  What is IK Rating?
Ingress Protection Rating: IP66. What is IP Rating?
Housing: Die cast aluminium body
Paint: Polyester powder coat. All Colour Options Available Here.
Diffuser: Clear polycarbonate diffuser.
Driver: Integral electronic control gear.
Mounting: Ceiling.
Cable Entry: Supplied with flying lead.
Design Life: 30+ years. What is Design Life?

Technical Information

Altilum Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)

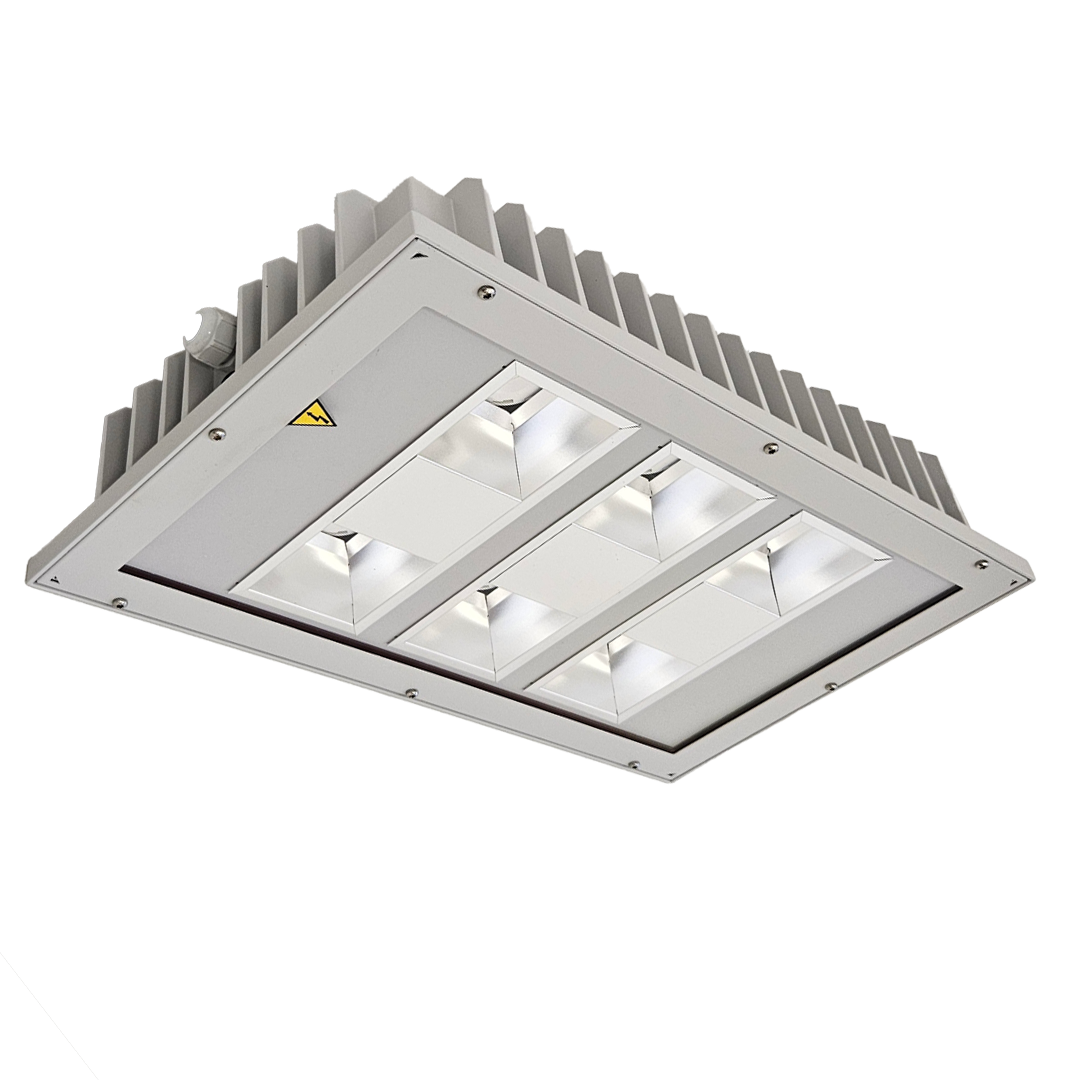

Surface Mounted
ALT-5200N-MS-DA 5222 33 158 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₉₀B₅₀>100,000h
Weight (kg) LED Energy Rating Dimensions
7.2 E 500mm x 310mm x 98mm
ALT-10300N-MS-DA 10325 67 154 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₉₀B₅₀>100,000h
Weight (kg) LED Energy Rating Dimensions
7.2 E 500mm x 310mm x 98mm
ALT-15900N-MS-DA 15989 119 134 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₉₀B₅₀>100,000h
Weight (kg) LED Energy Rating Dimensions
7.2 E 500mm x 310mm x 98mm
ALT-19800N-MS-DA 19789 137 144 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₉₀B₅₀>100,000h
Weight (kg) LED Energy Rating Dimensions
7.2 E 500mm x 310mm x 98mm

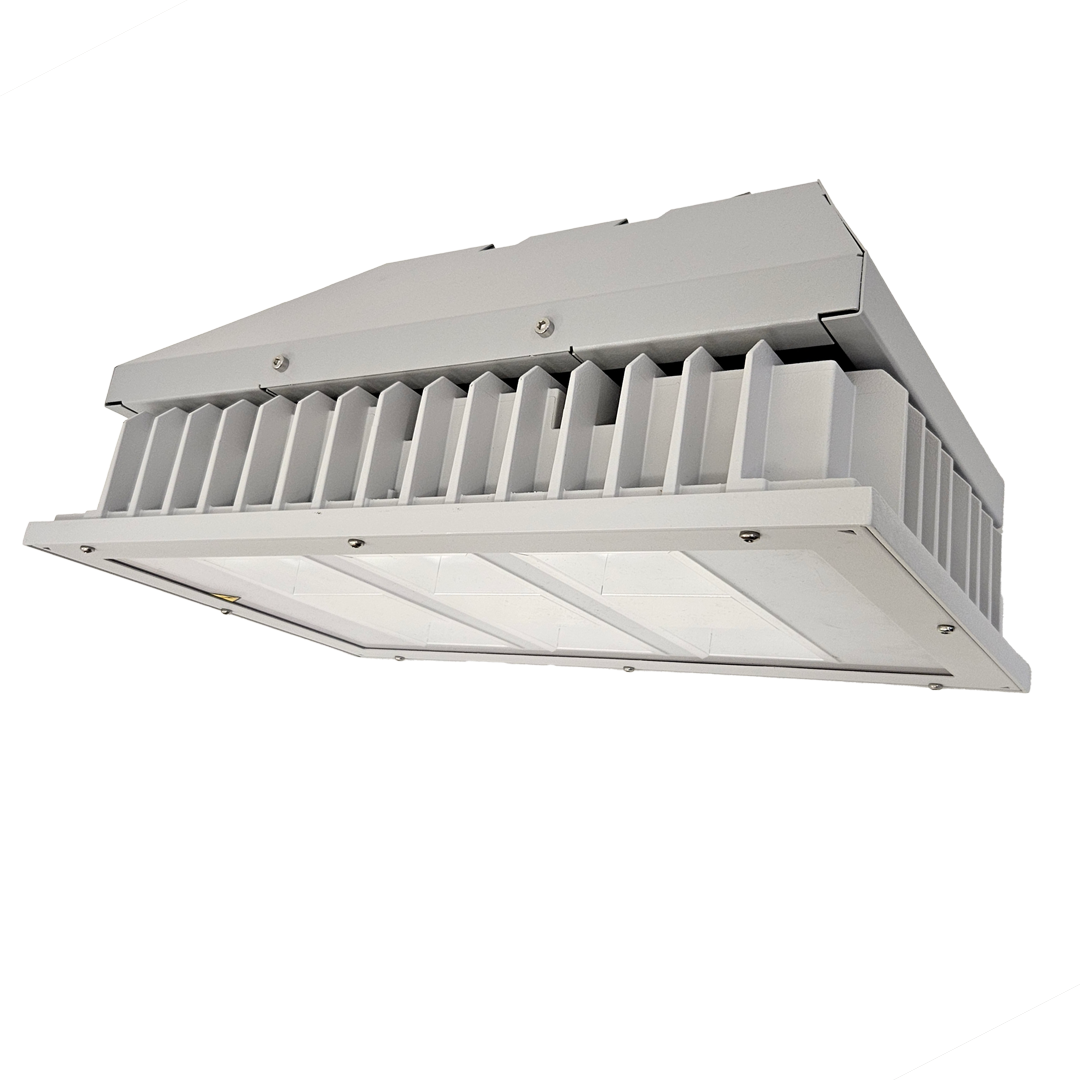

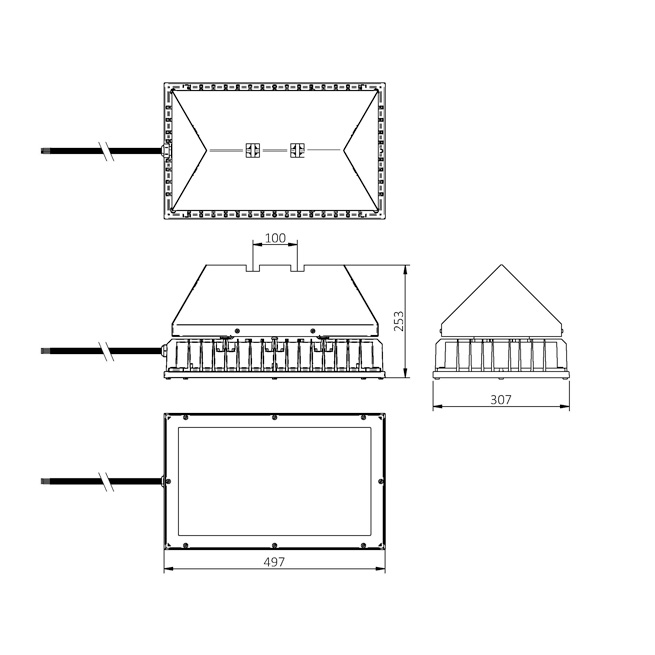

Suspended
ALT-5200N-MS-DA-S 5222 33 157 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₉₀B₅₀>100,000h
Weight (kg) LED Energy Rating Dimensions
10 E 500mm x 310mm x 98mm
ALT-10300N-MS-DA-S 10325 67 154 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₉₀B₅₀>100,000h
Weight (kg) LED Energy Rating Dimensions
10 E 500mm x 310mm x 98mm
ALT-15900N-MS-DA-S 15989 119 134 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₉₀B₅₀>100,000h
Weight (kg) LED Energy Rating Dimensions
10 E 500mm x 310mm x 98mm
ALT-19800N-MS-DA-S 19789 137 144 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₉₀B₅₀>100,000h
Weight (kg) LED Energy Rating Dimensions
10 E 500mm x 310mm x 98mm

Fitting Options

4 Metre Flying Lead -4M
DALI-2 Dimming / Monitoring -DA
DALI with **% Pre-set -D
Matt Silver -MS

• Suspended version not supplied with suspension wires.

;
